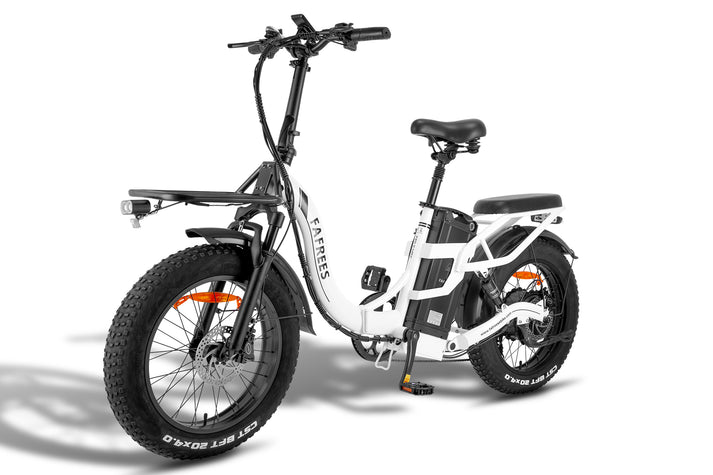

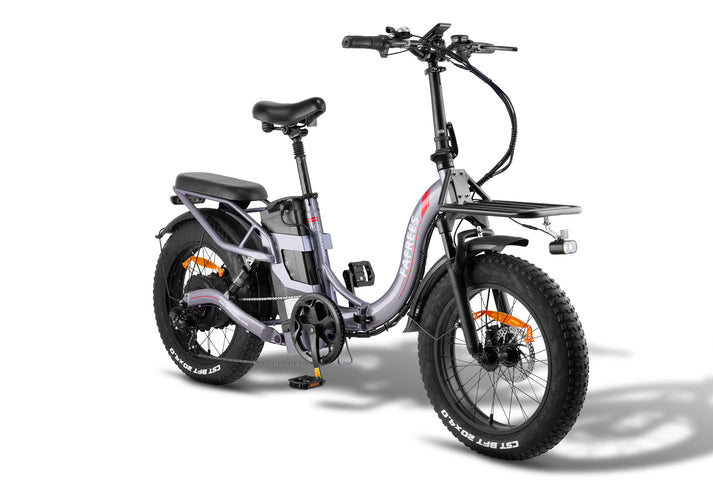

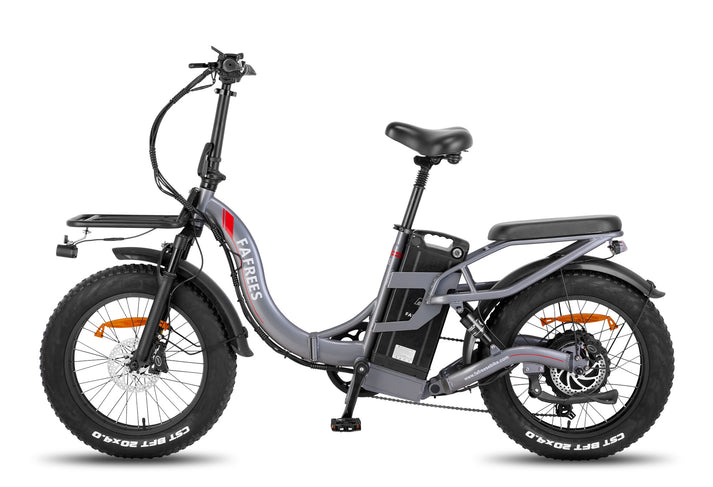

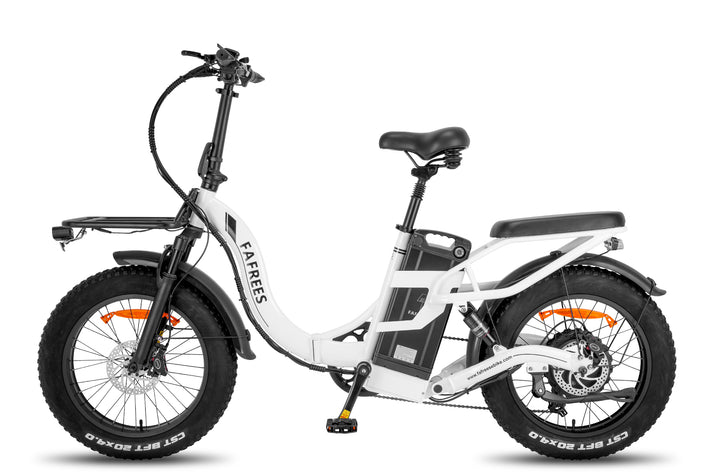

Fafrees F20 X-Max 30Ah Full Suspension Foldable Fat Tyres E-Bike
Fafrees F20 X-Max 30Ah Full Suspension Foldable Fat Tyres E-Bike
Bike to Work Available: Save up to 52%! Contact us for a quote (BTW price varies from marked price).
Listed price excludes VAT
- FREE Nationwide Delivery
- FREE Fully Assembled & Tested
- Local Support
Own it from less than half price!
Own it from less than half price!
Get your E-Bike Tax-Free through the Bike to Work scheme!
Step 1: Choose Your Bike — Select your favorite model and any accessories you need.
Step 2: Submit the Form — [Click here] to fill in our quick application form (takes 2 mins).
Step 3: Forward to HR — We will email your official employer invoice within 24 hours. Just forward it to your HR to get approved!
Bonus: Select our Fully Assembled Option (100% FREE — Save €90) to get your bike delivered fully built!
Savings depend on your personal tax rate (up to 52%).
Real Riders, Real Store Moments
Real Riders, Real Store Moments
Every bike that leaves our shop comes with a story. Here are a few of our customers – fresh from the collection, right outside our door.
Doorstep Test Ride Available
Doorstep Test Ride Available
Test ride at home – Wexford area only.
Pay a small delivery fee and try the bike at your own door. If it's not the right fit, we'll collect it. No obligation, no risk.
Couldn't load pickup availability
Why Buy From Ecocycle Hub?
🎁 Exclusively for Online Orders – Free Assembly + Delivery on This Bike
Skip the setup. We professionally assemble and test this model, then ship it ready‑to‑ride – straight to your door.
✅ Official Authorized Dealer: All e-bikes come with a genuine manufacturer's warranty.
✅ Bike to Work Scheme Supported: Save up to 52% through tax savings. We handle the paperwork and issue your invoice within 24 hours.
🇮🇪 Ireland-Based Support: Fast online diagnostics and dedicated after-sales service from our local team, saving you a long drive to the shop.

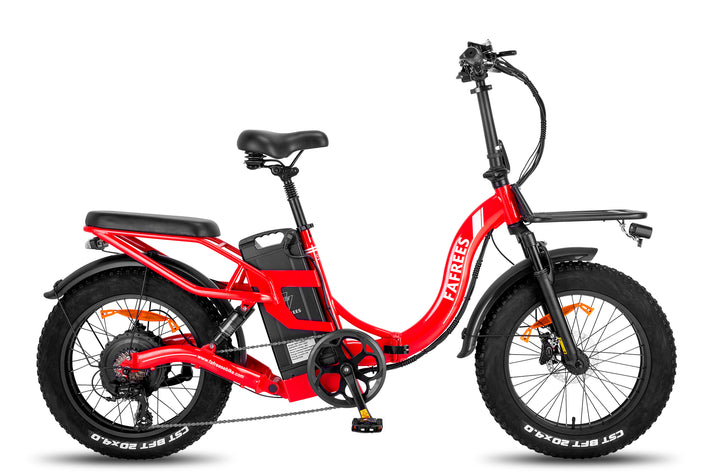

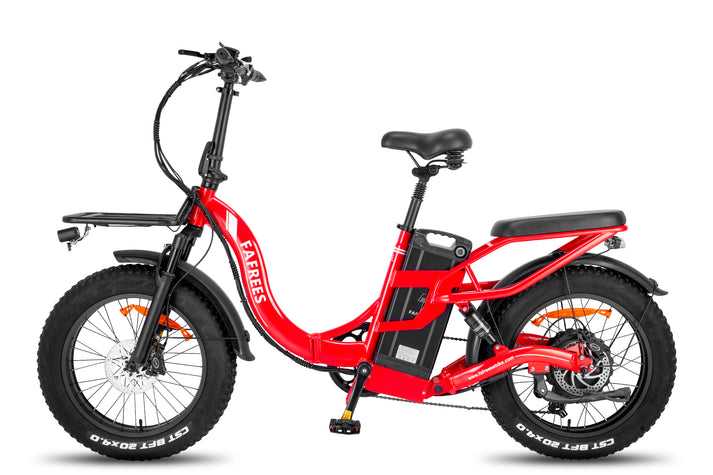

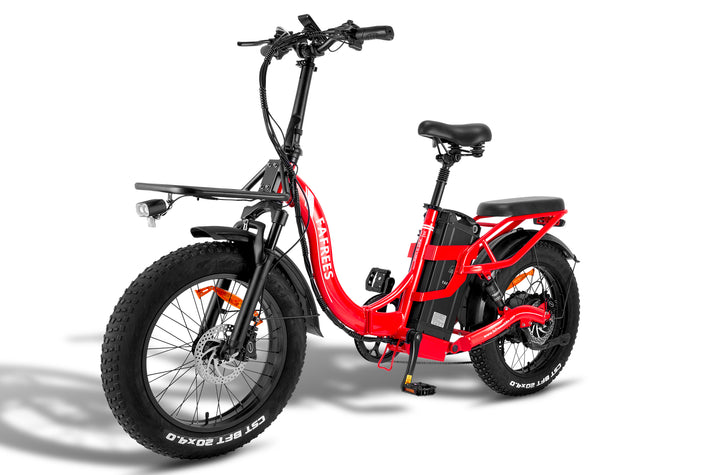

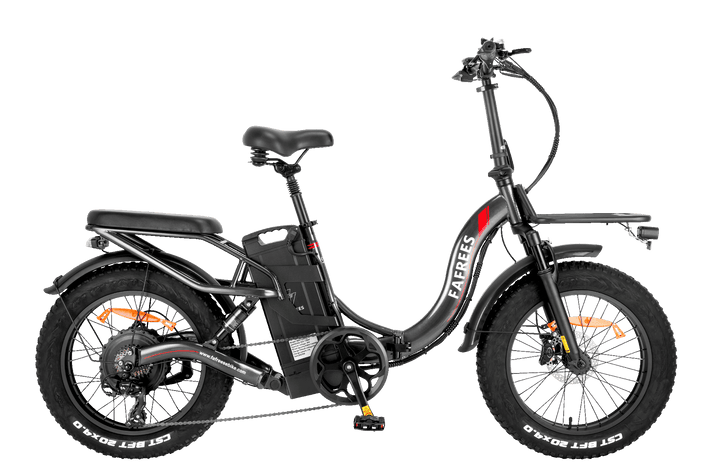

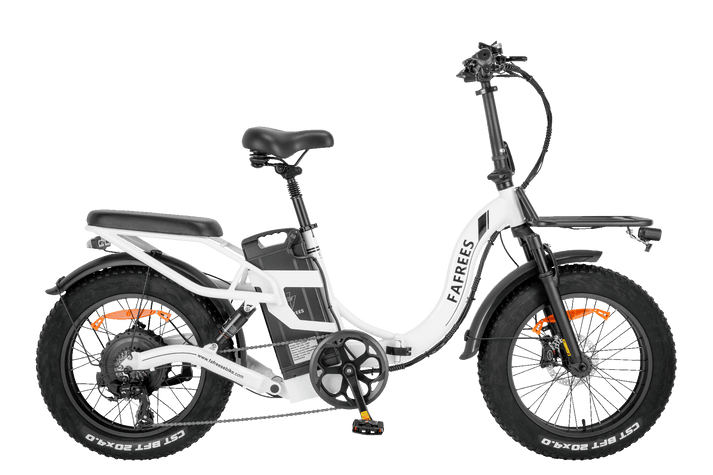

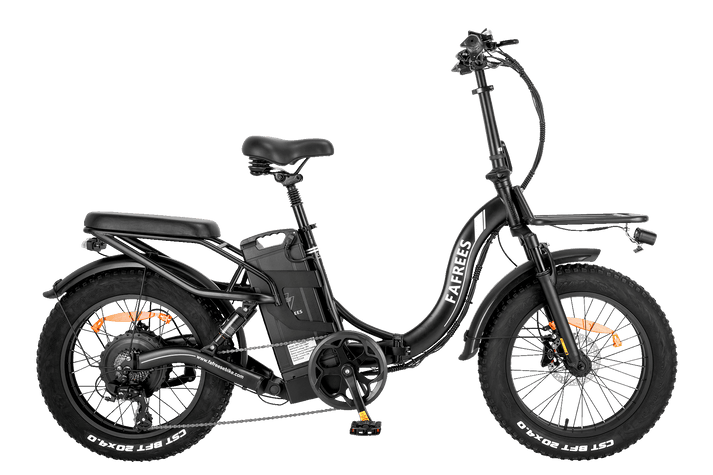

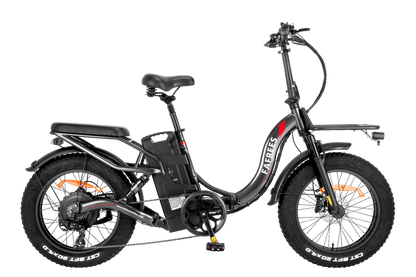

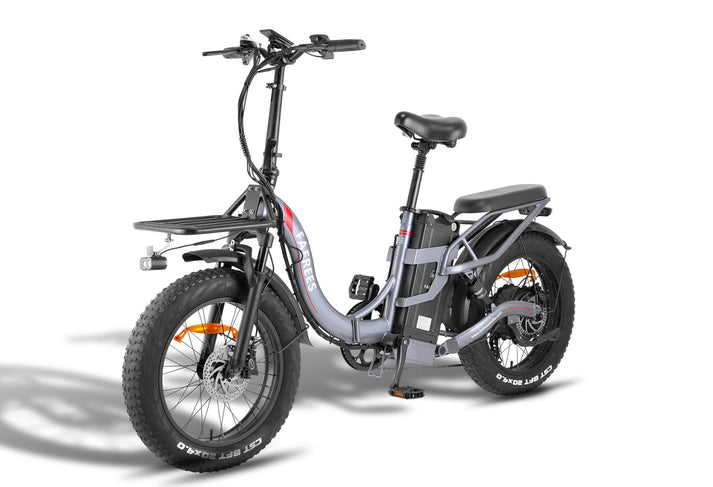

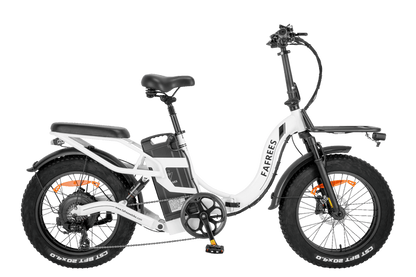

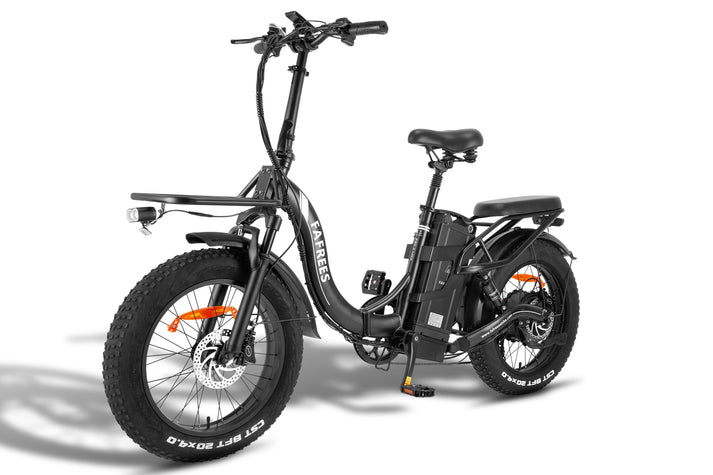

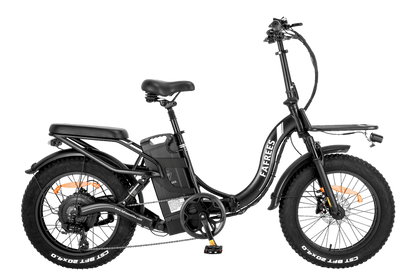

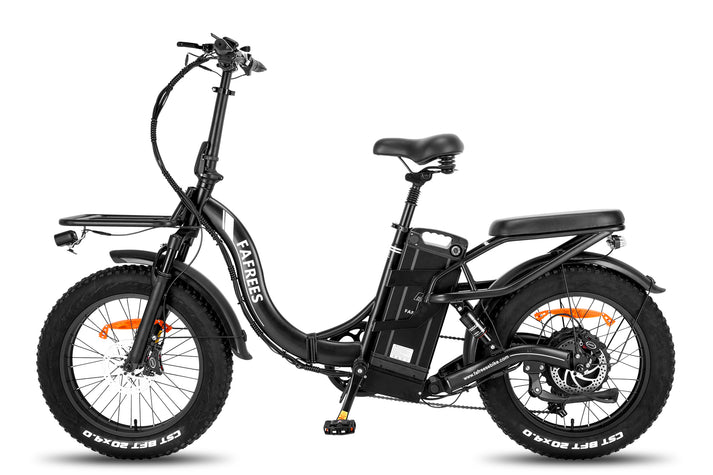

Fafrees F20 X-Max: 980W Peak Motor, 4.0" Fat Tyres & Full Suspension – Foldable Off-Road Power
FAFREES F20 X-Max – a foldable fat-tyre e-bike with a 1440Wh Samsung battery (140 km range), 980W peak motor, SHIMANO 7-speed gearing, and hydraulic brakes. Conquer any terrain, fold it and go.
1440Wh Samsung battery – massive 48V 30Ah capacity, delivers 120–140 km range on a single charge, removable for easy charging
980W peak motor (750W sustained) – 65Nm torque, climbs steep hills with ease, 25 km/h top speed
20" × 4.0" CST fat tyres – 60tpi, exceptional grip and stability on sand, snow, gravel, and city streets
Folds compactly – handlebar, frame, and pedals fold down; easy to store in car trunks or apartments
SHIMANO 7-speed gearing – smooth, reliable shifting for hills and flats
Hydraulic disc brakes – 160mm rotors, powerful all-weather stopping power
Full suspension – 50mm travel front fork + suspension seatpost, smooths out bumps and rough terrain
3.5" IPS colour LCD display – USB charging port, backlit, IP65, shows speed, battery, and assist level
3 pedal assist levels – choose your power output for any riding condition
180 kg max load – sturdy 6061 aluminium frame, fits riders 165–210 cm
Complete package – includes rear rack, fende
Box & Size
| All measurements provided in cm unless otherwise noted. | |
| Rider Height | 165–210 cm |
| Weight Capacity | 150 kg |
| Bike Width | 63 cm |
| Folded Size (L×W×H) | 105 × 45 × 76 cm |
| 📏 DIMENSIONS | |
| A – Maximum Seat Height | 106 cm |
| B – Minimum Seat Height | 86 cm |
| C – Standover Height | 38 cm |
| D – Frame Size | 43 cm |
| E – Maximum Handlebar Height | 132 cm |
| F – Minimum Handlebar Height | 116 cm |
| G – Bottom Bracket Height | 17 cm |
| H – Top Tube Length | 64 cm |
| I – Wheelbase Length | 130 cm |
| J – Total Length | 186 cm |
| F20 X-Max E-bike | ×1 |
| Charger | ×1 |
| Tool Kit | ×1 |
| User Manual | ×1 |
| Gift Box | ×1 (Includes: 1 inner tube, 2 valve caps, 4 spokes, 2 wheel reflectors, 2 battery fuses, 2 brake linings, 1 key chain) |
Please note: The product you receive is based on the option you selected to order.
Measurements are approximate and may vary slightly between units.
30Ah Samsung Battery
Packed with 21700 Samsung cells (1440Wh), it delivers up to 140km range per charge.
High-Torque 750W Motor
Feel the power with a peak 980W output and strong 65Nm torque for confident, controlled riding.
Hydraulic Braking
Front and rear hydraulic brakes with 160mm rotors provide strong grip and fast response.
Display with USB Port
Easily view speed, range, and gear with the large LCD screen—plus, charge your phone on the go.
Triple Suspension
A complete suspension setup—front, rear, and seatpost—smooths out every bump for long-time riding.

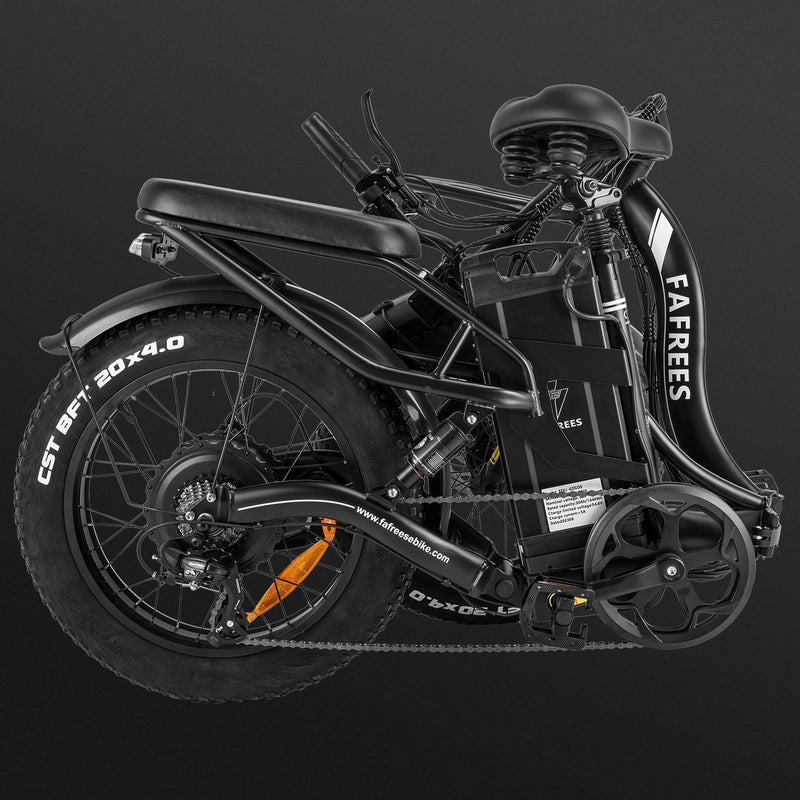

Triple Folding Design
Folds at the frame, handlebars, and pedals—making it ultra-compact, easy to store, and perfect for transport on any trip.

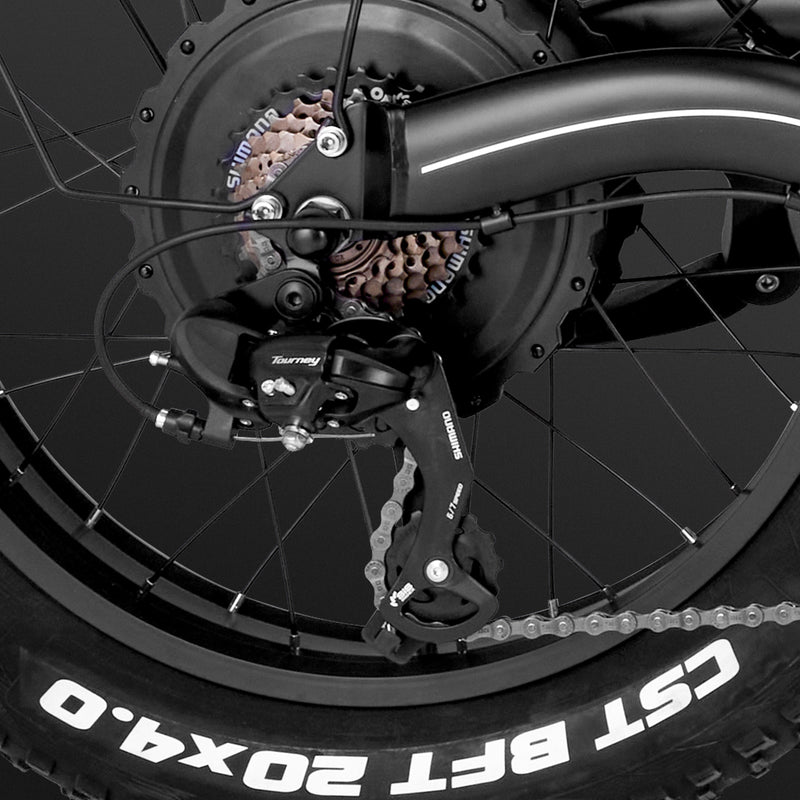

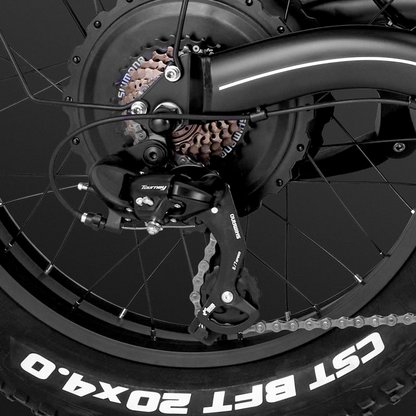

Shimano 7-Speed Gear Shift
Tackle hills, flats, or stop-and-go traffic with smooth shifting. Smart gear use can extend battery life by up to 15%.

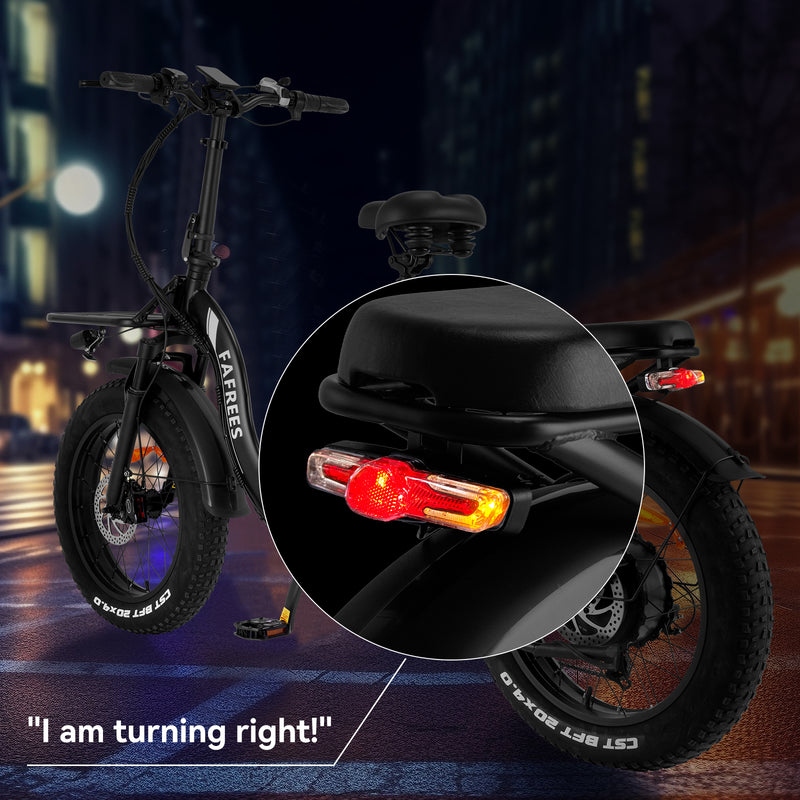

Lights with Turn Signals
Bright front and rear lights with turn signals keep you visible and predictable.

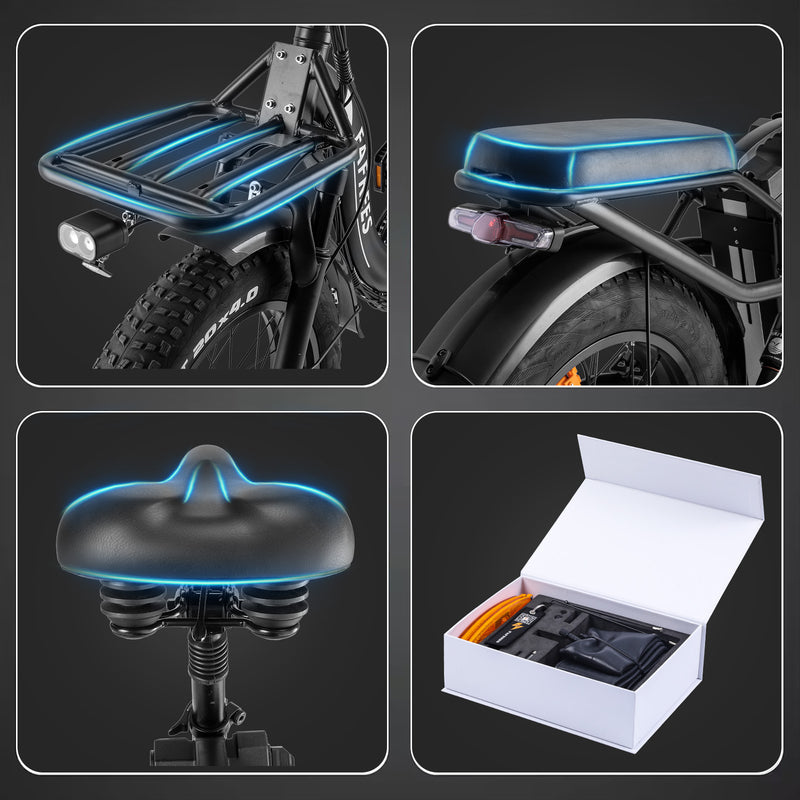

Front & Rear Cargo Racks
Built-in racks let you carry groceries, gear, or supplies with ease—ideal for commuting or weekend adventures.

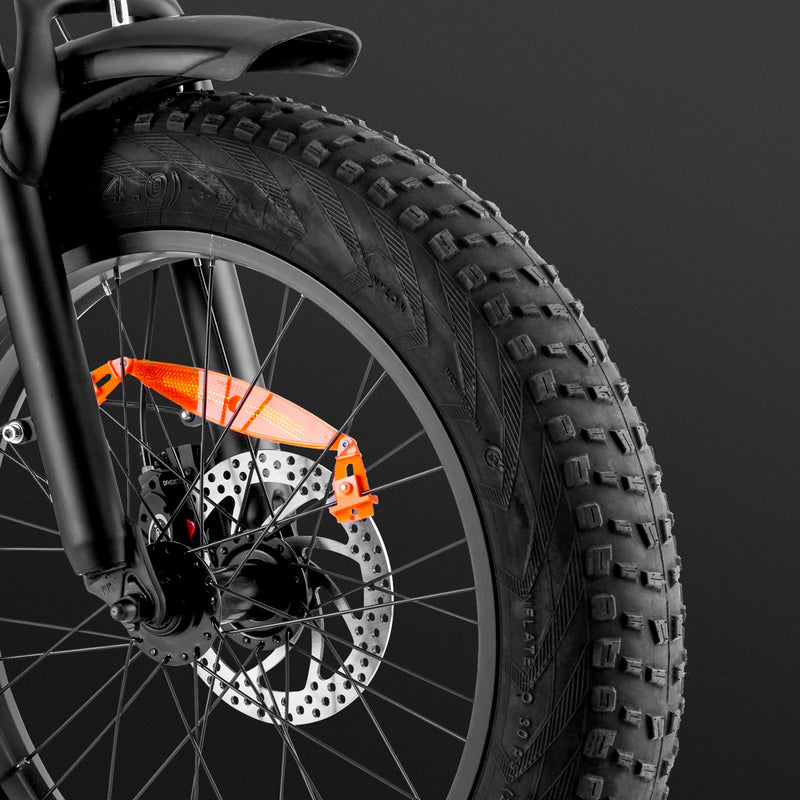

CST 20×4.0" Fat Tires
Wide 4.0" tires offer extra grip and stability on snow, sand, mud, gravel, and city roads alike.
