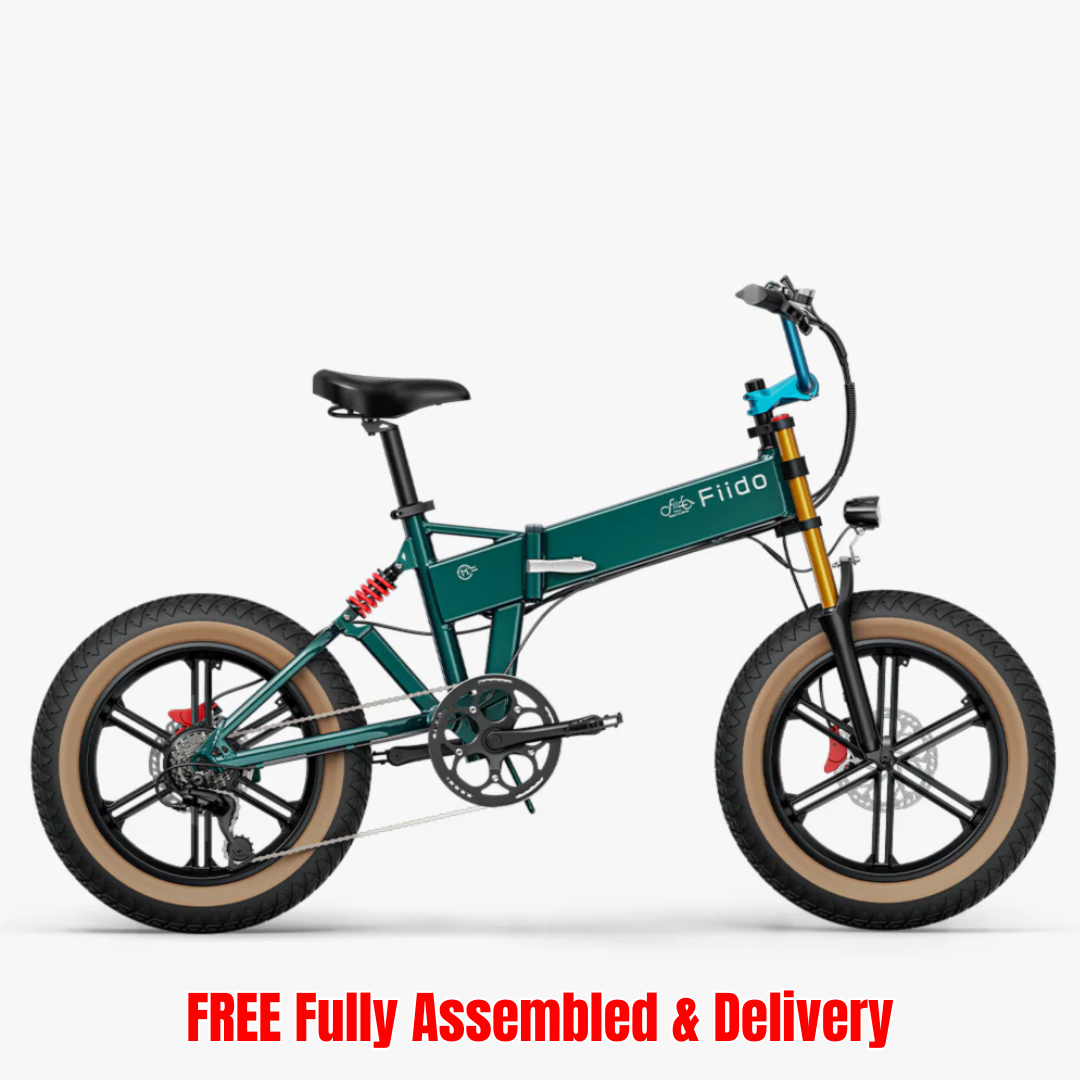

Fiido M1 Pro Fat-Tyre Dual-Suspension Folding E-Bike
Fiido M1 Pro Fat-Tyre Dual-Suspension Folding E-Bike
Bike to Work Available: Save up to 52%! Contact us for a quote (BTW price varies from marked price).
Listed price excludes VAT
- FREE Nationwide Delivery
- FREE Fully Assembled & Tested
- Local Support
Own it from less than half price!
Own it from less than half price!
Get your E-Bike Tax-Free through the Bike to Work scheme!
Step 1: Choose Your Bike — Select your favorite model and any accessories you need.
Step 2: Submit the Form — [Click here] to fill in our quick application form (takes 2 mins).
Step 3: Forward to HR — We will email your official employer invoice within 24 hours. Just forward it to your HR to get approved!
Bonus: Select our Fully Assembled Option (100% FREE — Save €90) to get your bike delivered fully built!
Savings depend on your personal tax rate (up to 52%).
Real Riders, Real Store Moments
Real Riders, Real Store Moments
Every bike that leaves our shop comes with a story. Here are a few of our customers – fresh from the collection, right outside our door.
Doorstep Test Ride Available
Doorstep Test Ride Available
Test ride at home – Wexford area only.
Pay a small delivery fee and try the bike at your own door. If it's not the right fit, we'll collect it. No obligation, no risk.
Couldn't load pickup availability
⚡ Limited Stock Available:
Stock levels are running very low for this batch. Please contact our team via WhatsApp or email to double-check stock before checking out.
Why Buy From Ecocycle Hub?
🎁 100% FREE Assembly & Delivery – We professionally build and test your bike, then deliver it fully assembled to your door. No setup, no unboxing – just ride.
🏢 Physical Store & Real Local Support: Based in Wexford with dedicated Irish-based customer service—no generic bots, no language barriers, no endless back-and-forth!
🛠️ Full Warranty & Tech Assistance – Expert remote technical help & full manufacturer warranty backing. Our local workshop team is always here to guide you.
💼 Bike-to-Work Scheme Approved: Save up to 52%! We handle all the paperwork and deliver your official HR-ready invoice within 24 hours.
🇮🇪 Local Support: Dedicated Ireland-based customer care and remote after-sales support.

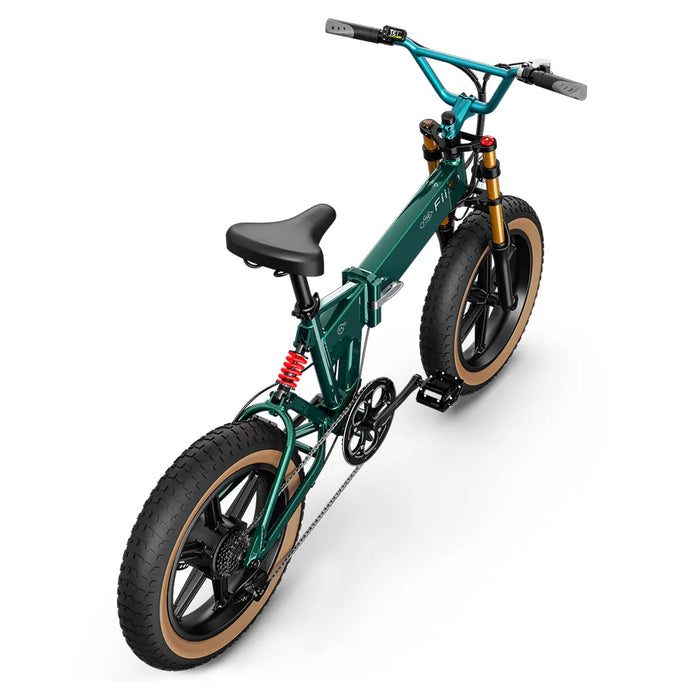

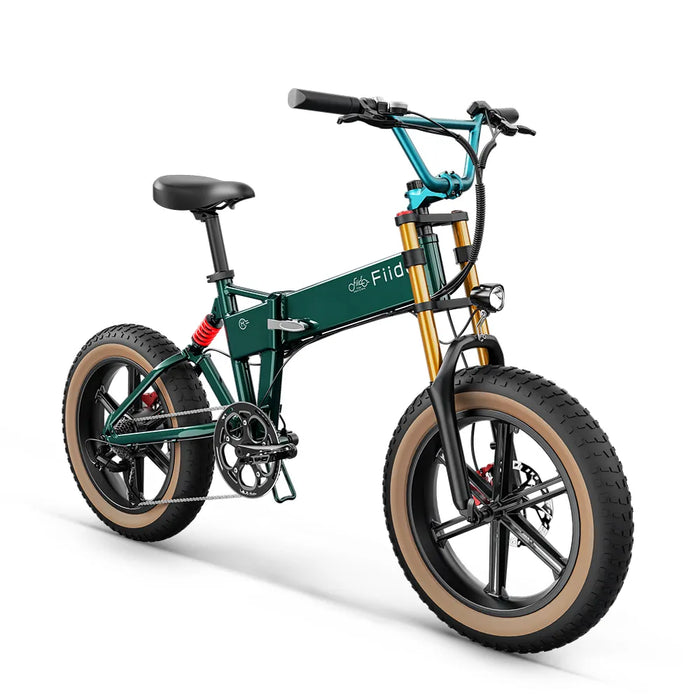

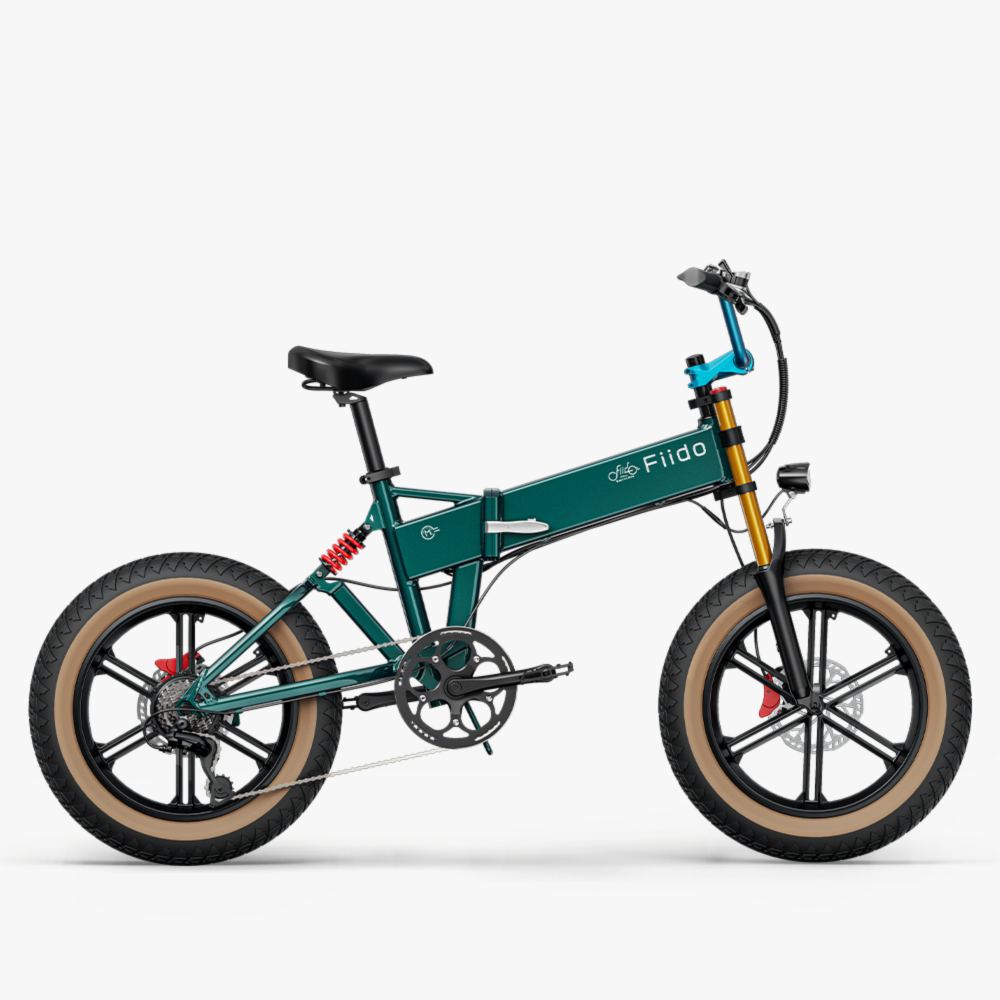

Fiido M1 Pro Electric Bike Upgraded Version
A foldable fat-tyre e-bike with 88km range, full suspension, hydraulic brakes, and a torque sensor that reads your every pedal. Conquer any terrain, then fold it and go.
📋 Specifications
| 📋 DETAILS | |
| Model Name | M1 Pro |
| Net Weight | 26.8 kg (59 lbs) with battery / 23.73 kg without |
| Payload | 120 kg |
| Rider Height | 155 cm (5'1") – 200 cm (6'7") |
| 🚲 FRAMESET | |
| Frame | 20-inch aluminum alloy folding frame |
| Fork | Aluminum alloy hydraulic dual-crown front fork (80mm travel, 135mm width) |
| Headset | Aluminum alloy bearing headset |
| ⚡ E-SYSTEM | |
| Drive Unit | 250W 50Nm integrated wheel brushless geared motor |
| Battery | DMEGC 556.8Wh removable battery |
| Charger | 48V 2A charger |
| Charging Time | 5–6 hours |
| Display | 1.47-inch LCD display |
| Throttle | Yes (max speed 6 km/h) |
| Sensor | Mivice S200 torque sensor |
| 🔧 DRIVETRAIN | |
| Rear Derailleur | SHIMANO TY300D |
| Shifters | SHIMANO TX50 |
| Chain | KMC Z7 |
| Crank | Aluminum alloy 52T |
| Rear Cogs | SHIMANO TZ500 7S (14-28T) |
| 🛑 BRAKES | |
| Brakes | Dual-piston hydraulic disc brakes with power cut-off |
| Brake Levers | Aluminum alloy three-finger brake lever |
| ⚙️ WHEELS | |
| Front Hub | Magnesium alloy integrated wheel with dual bearings (detachable axle M10*135*185mm) |
| Rims | Aluminum alloy double-wall |
| Tires | CST 20" x 4.0" fat tires |
| 🪑 COMPONENTS | |
| Handlebar | Aluminum alloy (Length: 700mm; Max Ø: 25.4mm; Min Ø: 22.2mm) |
| Grips | TPR non-slip handle grips (~130mm) |
| Saddle | VELO vacuum full-fit saddle |
| Seatpost | Aluminum alloy clamp head seatpost (400mm; Ø 33.9mm) |
| Waterproof | IP54 full-bike waterproofing |
📐 Size & Geometry
| All measurements provided in mm unless otherwise noted. | |
| Rider Heights | 4'11" (150cm) – 6'7" (200cm) |
| Wheel Size | CST 20*4.0 |
| 📏 DIMENSIONS | |
| A – Seat Tube | 425 |
| B – Seat Tube Angle | 75° |
| C – Head Tube | 130 |
| D – Head Angle | 74.5° |
| E – Top Tube Length | 629 |
| F – Standover Height | 710 |
| G – BB Drop | -40 |
| H – Rear Center | 505 |
| I – Wheelbase | 1190 |
| J – Reach | 474 |
| K – Stack | 504 |
| L – Rear Suspension Length | 125 |
| M – Maximum Seat Height | 1100 |
| N – Minimum Seat Height | 840 |
| O – Handlebar Height | 1175 |
| P – Handlebar Length | 700 |
| Q – Total Length | 1175 |
| R – Folding Length | 960 |
| S – Folding Height | 910 |
| T – Steerer Tube Length | 215 |
| U – Steerer Tube Outer Diameter | 30 |
| V – Steerer Tube Inner Diameter | 28.6 |
🚲 Bike to Work Scheme
With the Bike to Work Scheme, you can save up to 52% on your Fiido M1 Pro through tax relief. We handle all the paperwork and issue your HR-ready invoice within 24 hours.
Apply Now →Click to learn more and start your application
Core Selling Points
More Sass, More Style
Discover our 2025 upgrade, uncover a different you.
0-Lag Power Support
In 0.01s, Mivice torque sensor detects your move for the most precise support at every moment.
Range up to 87.15km
Powered by 556.8Wh battery. Enough juice for extended rides.
0-Maintenance Hub
No broken spokes, even under high-intensity riding or a full 150kg load.
80mm Front Fork
Enhanced shock absorption, effectively reducing fatigue in the wrists and forearms.
Designed Around Your Security & Convenience
LCD Waterproof Display
2.4-inch color display. Clearly visible even in bright sunlight. IP68 waterproof, withstands rainstorms.

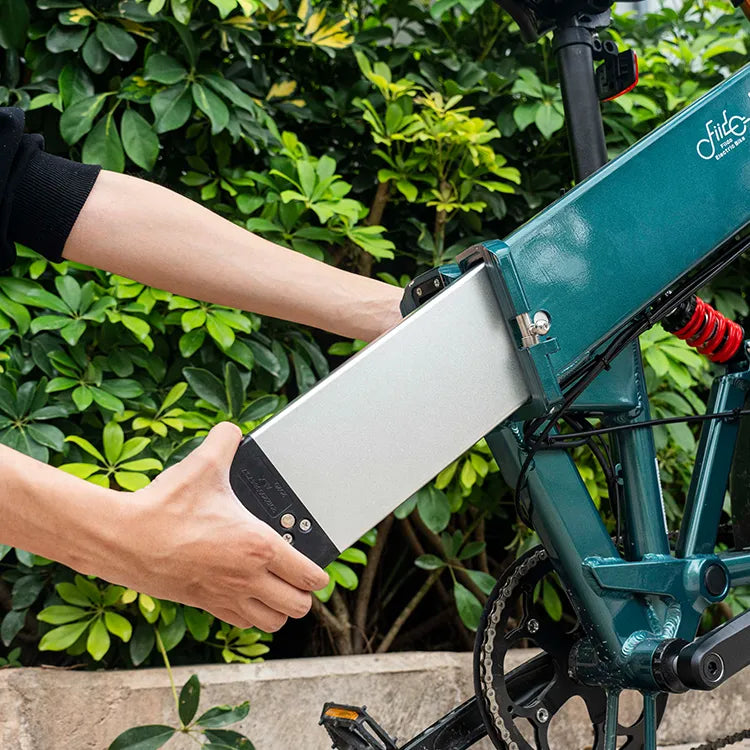

Removable Battery
Charge indoors without moving the whole bike.
Full-Bike Waterproof
IP54 for the bike, with torque sensor rated IP67. Ride through downpours, cross puddles and park it anywhere worry-free.

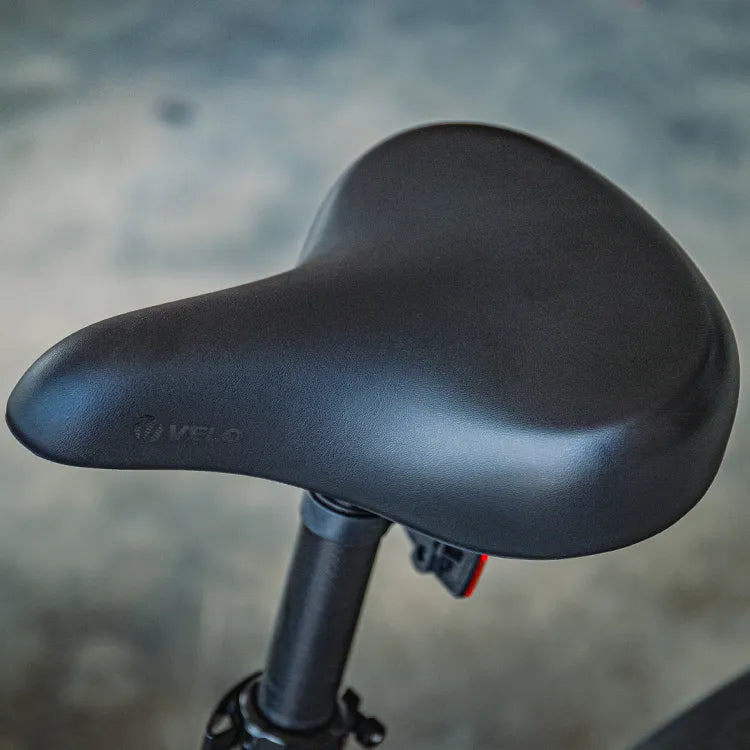

Velo Full-Fit Saddle
Unmatched comfort on long rides. Less pain in the buttocks, reduced pressure on the lower back.
Hydraulic Disc Brakes
Fast, precise, and controlled braking for a safer ride.

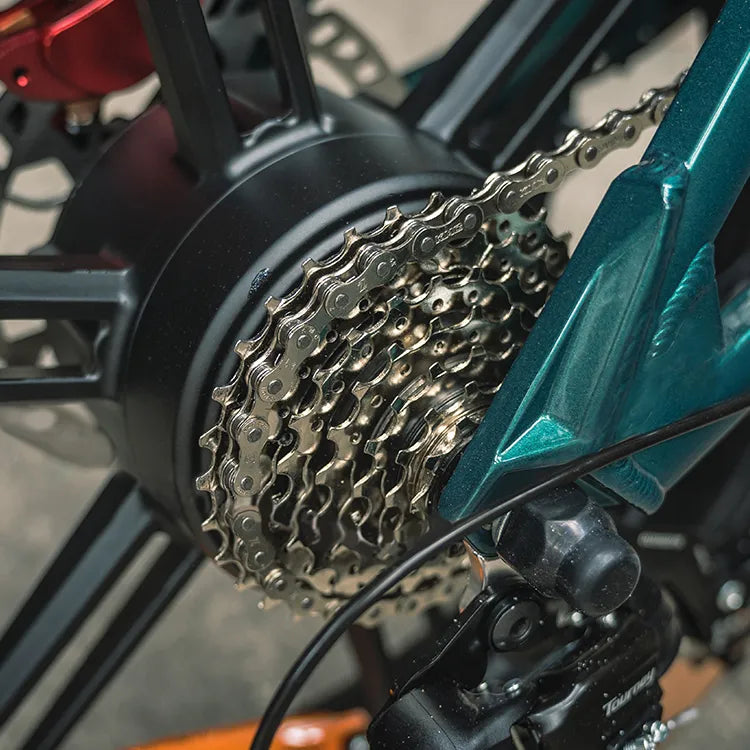

Shimano 7-Speed
Tackles rough terrains and slopes. Less leg fatigue.

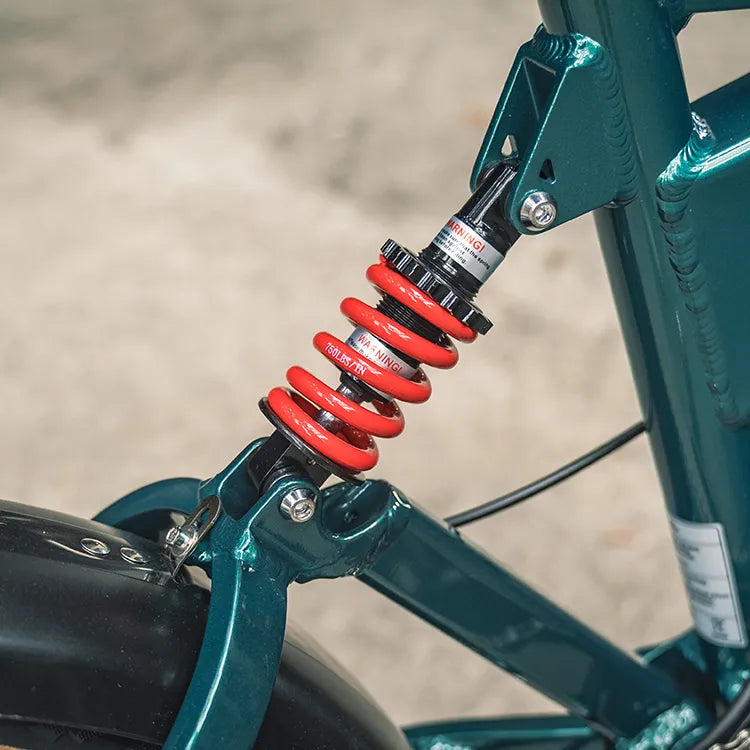

Rear Shock Absorber
Absorbs shock from the rear wheel, keeps the tire in contact with the ground. Increased traction, comfort, and control.

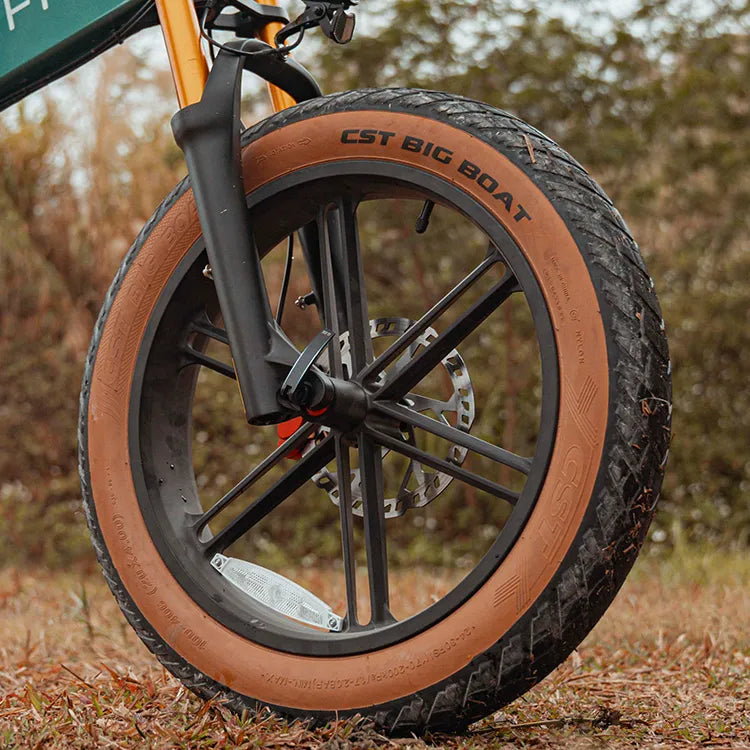

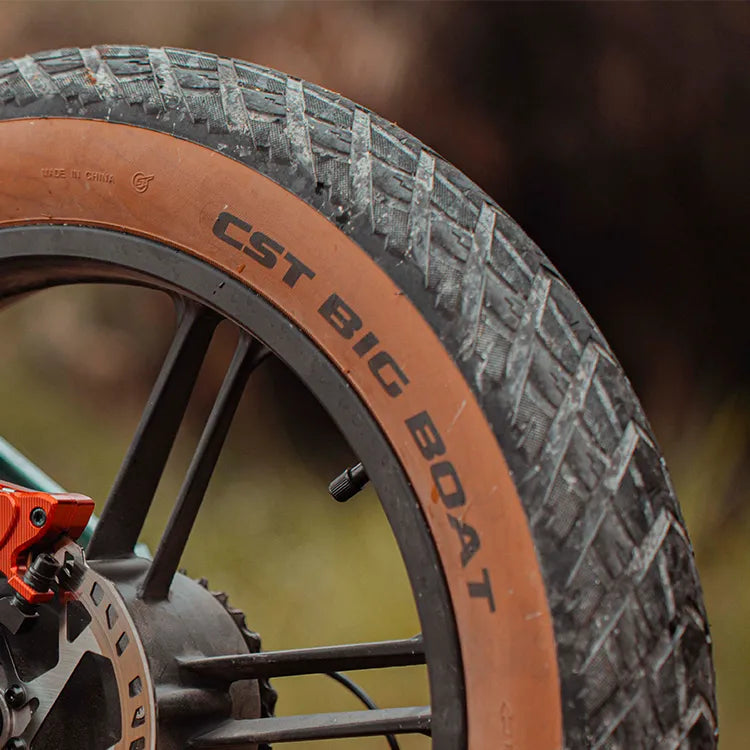

4.0″ Fat Tires
A wider tire-to-ground contact area boosts stability and grip on rough terrain; thicker sidewalls reduce bumps for a smoother ride.
Puncture-Resistant Tires
Lowers the risk of flats, so you can explore with peace of mind.
Customer review
Everything You Need to Know Before Buying
E-Bike FAQ
Which e‑bike is right for me?
Here's a quick guide:
Easy access & mobility-friendly – Step‑through frames, low standover height, and optional three‑wheel designs for extra stability. Perfect for seniors, riders with limited mobility, or anyone who wants to mount and dismount with zero effort.
City commuter – Step‑through frame, 25‑28" wheels, torque sensor, 80‑100 km range.
Foldable & portable – 20" wheels, compact storage, great for apartments or multi‑modal commutes.
Cargo & family – 200 kg payload, longtail design, child‑seat compatible, 150+ km range.
Off‑road & adventure – 20×4.0" fat tyres, full suspension, 80‑120 km range.
Premium lightweight – Carbon fibre frame, under 15 kg, belt drive, torque sensor.
How does the FREE Assembly & Delivery work?
We professionally build, test, and tune every bike in our workshop, then deliver it fully assembled to your door.No tools, no setup, no unboxing hassle – just unbox and ride.Note: this offer applies to selected models and online orders only – check the product page for details.
Can I use the Bike to Work Scheme on this e‑bike?
Absolutely. All our e‑bikes areBike to Work Scheme eligible– you can save up to52%through tax‑free salary sacrifice. We handle the paperwork and issue your HR‑ready invoice within 24 hours.
What's a torque sensor? Why does it matter?
A torque sensor measures how hard you're pedalling and delivers power in proportion to your effort. Pedal harder, get more assist – pedal lighter, get less. It makes the ride feel natural, smooth, and intuitive, like you've suddenly got superhuman legs. Models with torque sensors are significantly more responsive than those with basic cadence sensors (which just detect pedal rotation).
What does "Wh" mean on a battery? (e.g. 499Wh, 720Wh)
Wh (Watt-hours) is the total energy capacity of the battery – like the size of a fuel tank. A higher Wh number means more range. For example, a 720Wh battery will generally take you further than a 499Wh battery, assuming the same bike and riding conditions.
