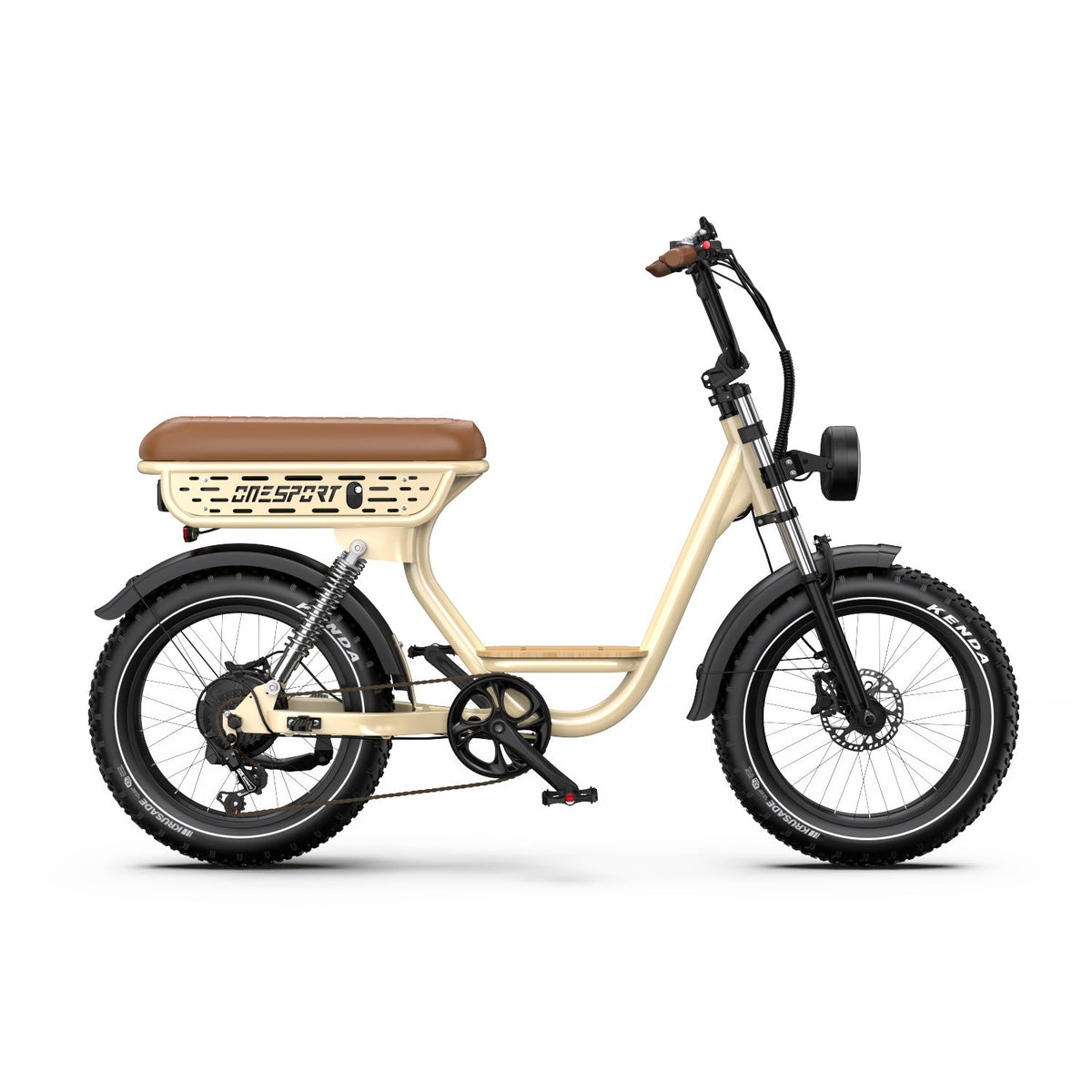

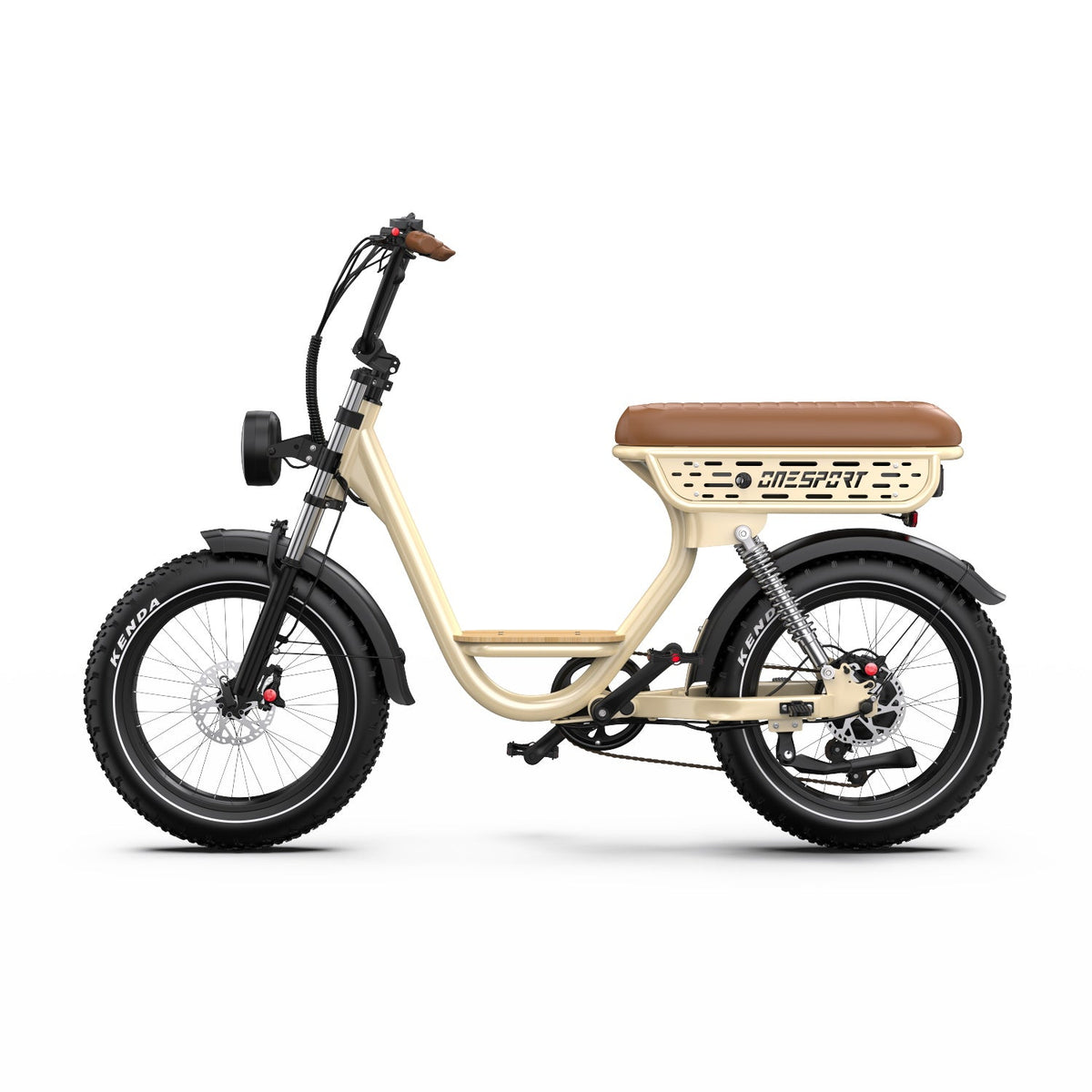

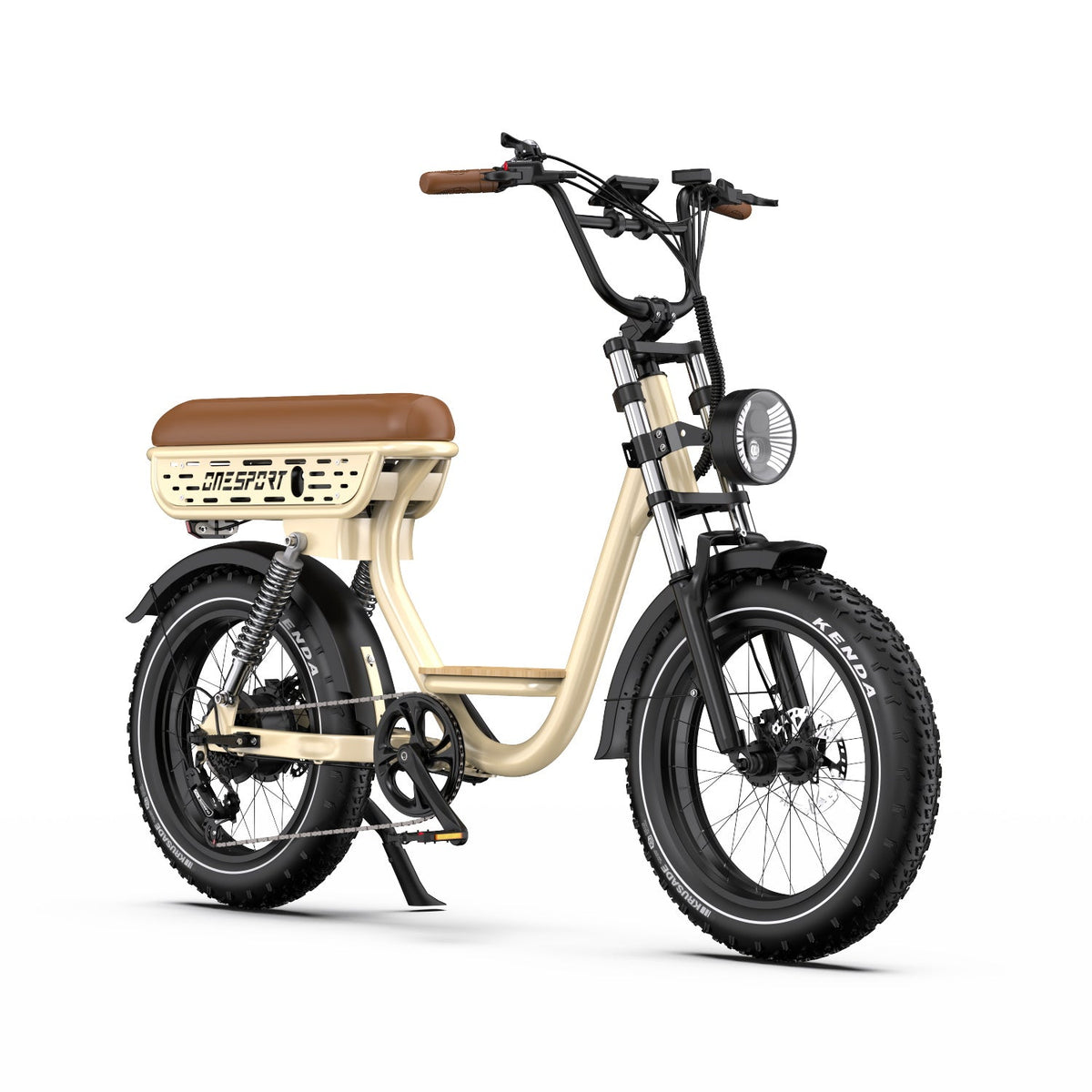

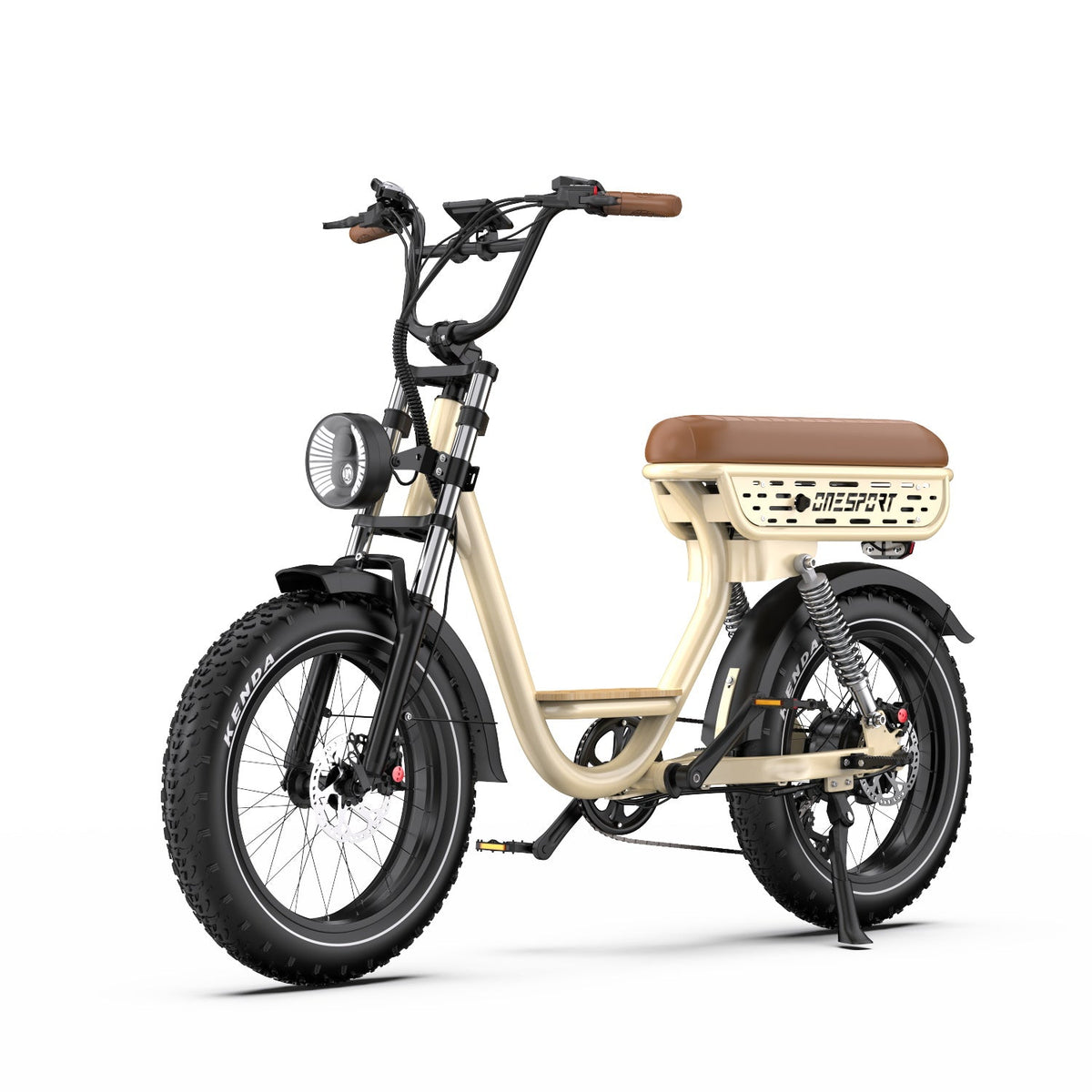

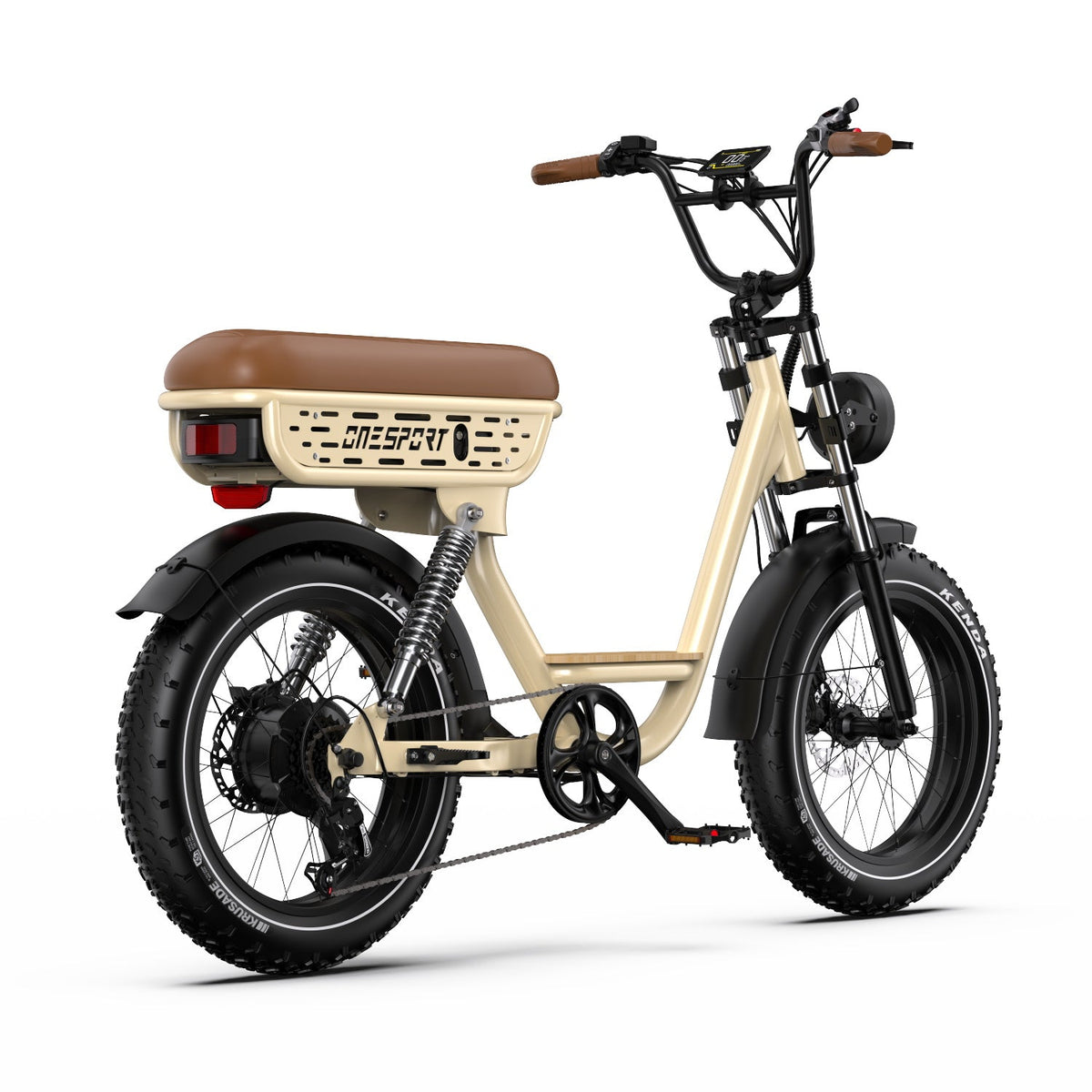

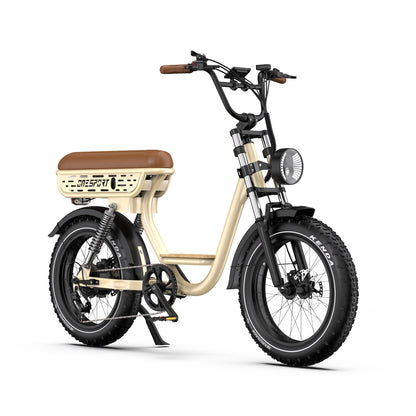

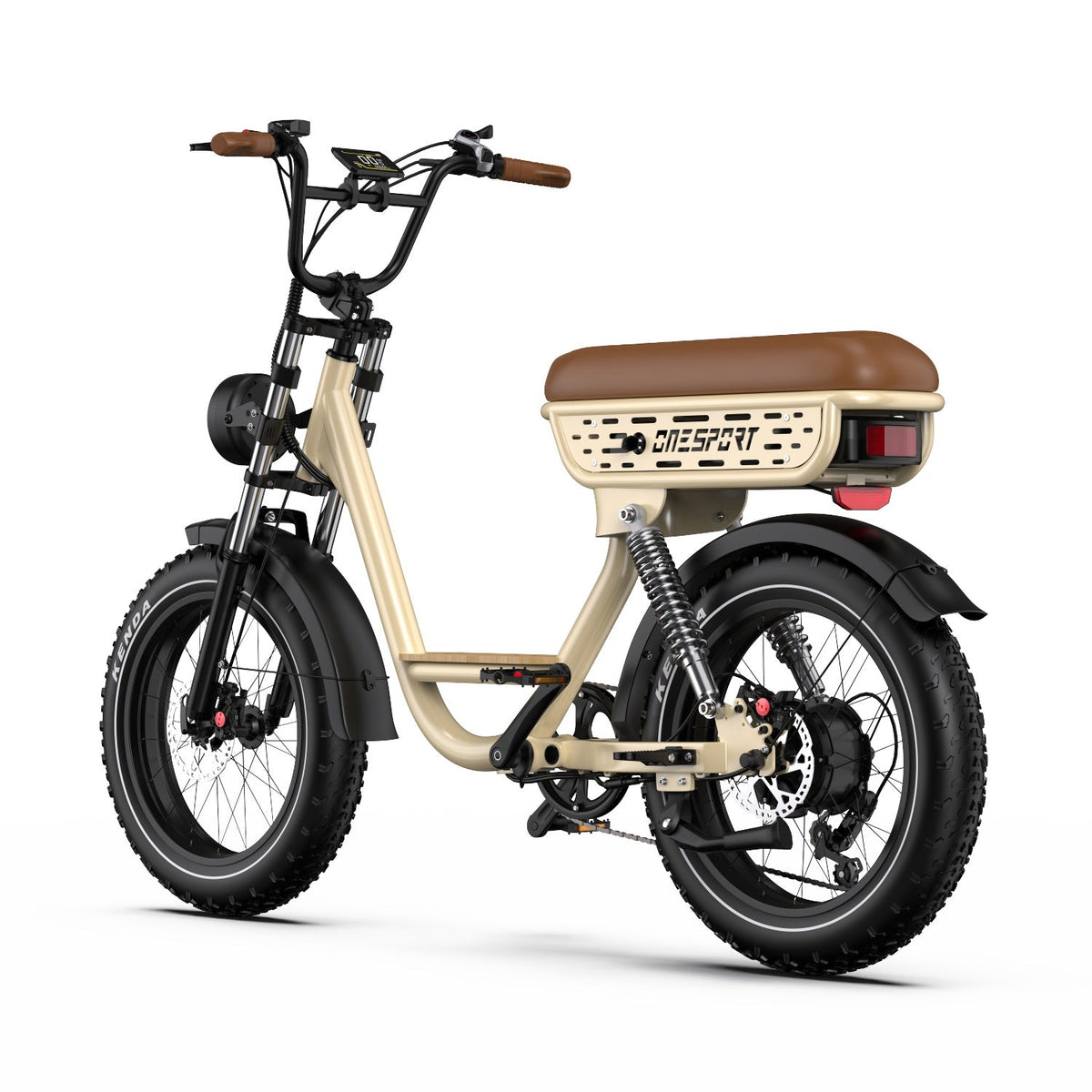

Onesport W77 Step-Through, Full Suspension, 48V 18Ah, 20×4.0" Fat Tire E-Bike
OneSport W77 – a step-through fat tire e-bike with 500W peak motor, 48V 18Ah battery, full suspension, hydraulic brakes, and 90 km range. Ride with grace, safety, and style.
Ride with Grace – Safety & Style in Every Detail

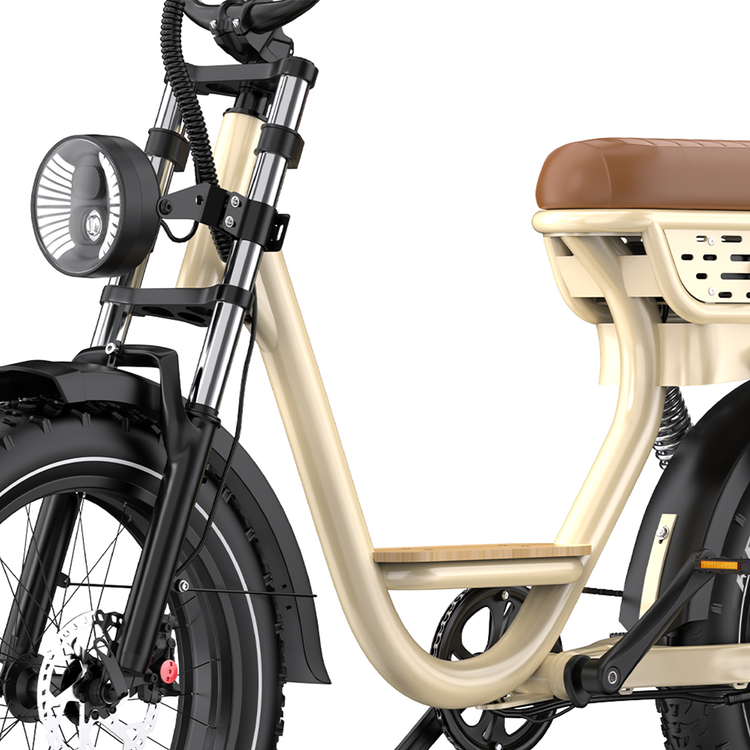

Move effortlessly with our thoughtfully engineered low-step frame, designed for easy mounting in skirts, dresses, or any outfit of your choice. Whether you're headed to the office or the market, enjoy a confident ride without compromise.
As the sun sets, stay visible and secure with our ultra-bright front headlight and integrated rear tail light. Built for urban nights and early commutes, this e-bike ensures you’re seen from every angle – because your safety deserves more than just reflectors.
Full Suspension for a Smooth, Confident Ride
Tackle city bumps, gravel paths, or countryside trails with ease.
The front and rear suspension system absorbs shocks and vibrations, delivering a more comfortable, stable ride—wherever your journey takes you.
48V 250W Motor (Peak 500W) with 65Nm Torque
Powered by a 48V 250W motor (peak 500W), this fatbike offers strong, steady support for your daily rides. With 65Nm of torque, it handles hills and bumpy paths with ease. Whether you're riding through town or enjoying a quiet trail, the motor ensures smooth, comfortable, and reliable performance — ideal for riders who value safety and ease of use.
Specifications
| Frame | High-tensile steel frame |
| Fork |
Double crown suspension fork featuring aluminum crown and steel stanchions,135 mm travel, non-adjustable and non-lockable
|
| Handlebar Material | Aluminum Alloy |
| Handlebar Width | 68cm |
| Crank | 152mm Aluminum Alloy |
| Shock | Coil spring shock with a spring rate of 300 lbs |
| Rear Wheel | Kenda 20×4.0" fat spoked wheel, 30 TPI, with inner tube |
| Front Wheel | Kenda 20×4.0" fat spoked wheel, 30 TPI, with inner tube |
| Headlight | 400LM K-Mark light |
| Taillight | K-Mark light |
| Pedal | Aluminum Alloy |
| Mudguard | Full-length plastic fenders for both front and rear wheels |
| Cargo rack | Not specified |
| Tool Kit | Installation tools, user manual, air pump, bell and strap |
Dimensions
| Weight limit | Supports riders and cargo up to 90 kg |
| Net Weight | 43.18 kg |
| Gross Weight | 53.68 kg |
| Product Dimensions | 1750*1180*690 mm |
| Package Dimensions | 1490*300*910 mm |
| Recommended Rider Height | 160-200 cm |
Power
| Front Brake |
Zoom hydraulic disc brake, dual-piston caliper, 180 mm rotor
|
| Rear Brake |
Zoom hydraulic disc brake, dual-piston caliper, 180 mm rotor
|
| Rear Derailleur | 48V |
| Pedal Assist System | Pedal-assist with cadence sensor |
| Pedal Assist Levels | 3 selectable assistance levels (0–3) |
| Motor Type | Rear hub motor |
| Rated Power | 250W |
| Peak Power | 500W (peak output) |
| Torque | 65Nm |
| Battery | 48V 18Ah removable lithium-ion battery (648 Wh) |
| Charger | 54.6V 2A smart charger |
| Charging Time | Approximately 8–10 hours with the standard charger |
| Max Range |
80-90 km under pedal-assist mode, depending on terrain, rider weight, and assist level
|
| Top Speed | 25 km/h (in compliance with EU regulations) |
| Max Climbing Angle |
Up to 30° under optimal conditions (load, terrain, and battery level may affect actual performance)
|
| Computer |
3.5-inch LCD screen, Bluetooth-enabled, IPX4-rated for water resistance
|
| Certifications | CE (Conformité Européenne) compliant |
Care instructions
| Proper Temperature | -10°C-40 °C |
| Waterproof Level | IPX4 |
What’s In The Box?
More Reasons to Love It
Battery
The 48V 18AH battery provides long-lasting power for extended rides, ensuring reliable performance and greater range on a single charge.
Rear Suspension
The rear suspension absorbs shocks from rough terrain, providing a smoother, more stable ride. It enhances comfort and control, whether you're on city streets or off-road trails.
Screen
The display screen provides clear ride information and features Bluetooth functionality, allowing you to connect with your smartphone for additional features and updates. Stay informed and connected on every ride!
Hydraulic Disc Brakes
Hydraulic disc brakes offer powerful, precise stopping power with less maintenance. Provided reliable braking in all conditions, ensuring a safe and smooth ride on both city streets and rough terrains.
Dual Seat
The long seat cushion is designed to comfortably accommodate two passengers, offering a spacious and relaxing ride for both. Perfect for leisurely trips or shared journeys.
Front Light
The front light provides bright illumination for safe night rides, ensuring you see and are seen, whether in the city or on outdoor trails.
Everything You Need to Know Before Buying
E-Bike FAQ
Which e‑bike is right for me?
Here's a quick guide:
Easy access & mobility-friendly – Step‑through frames, low standover height, and optional three‑wheel designs for extra stability. Perfect for seniors, riders with limited mobility, or anyone who wants to mount and dismount with zero effort.
City commuter – Step‑through frame, 25‑28" wheels, torque sensor, 80‑100 km range.
Foldable & portable – 20" wheels, compact storage, great for apartments or multi‑modal commutes.
Cargo & family – 200 kg payload, longtail design, child‑seat compatible, 150+ km range.
Off‑road & adventure – 20×4.0" fat tyres, full suspension, 80‑120 km range.
Premium lightweight – Carbon fibre frame, under 15 kg, belt drive, torque sensor.
How does the FREE Assembly & Delivery work?
We professionally build, test, and tune every bike in our workshop, then deliver it fully assembled to your door.No tools, no setup, no unboxing hassle – just unbox and ride.Note: this offer applies to selected models and online orders only – check the product page for details.
Can I use the Bike to Work Scheme on this e‑bike?
Absolutely. All our e‑bikes areBike to Work Scheme eligible– you can save up to52%through tax‑free salary sacrifice. We handle the paperwork and issue your HR‑ready invoice within 24 hours.
What's a torque sensor? Why does it matter?
A torque sensor measures how hard you're pedalling and delivers power in proportion to your effort. Pedal harder, get more assist – pedal lighter, get less. It makes the ride feel natural, smooth, and intuitive, like you've suddenly got superhuman legs. Models with torque sensors are significantly more responsive than those with basic cadence sensors (which just detect pedal rotation).
