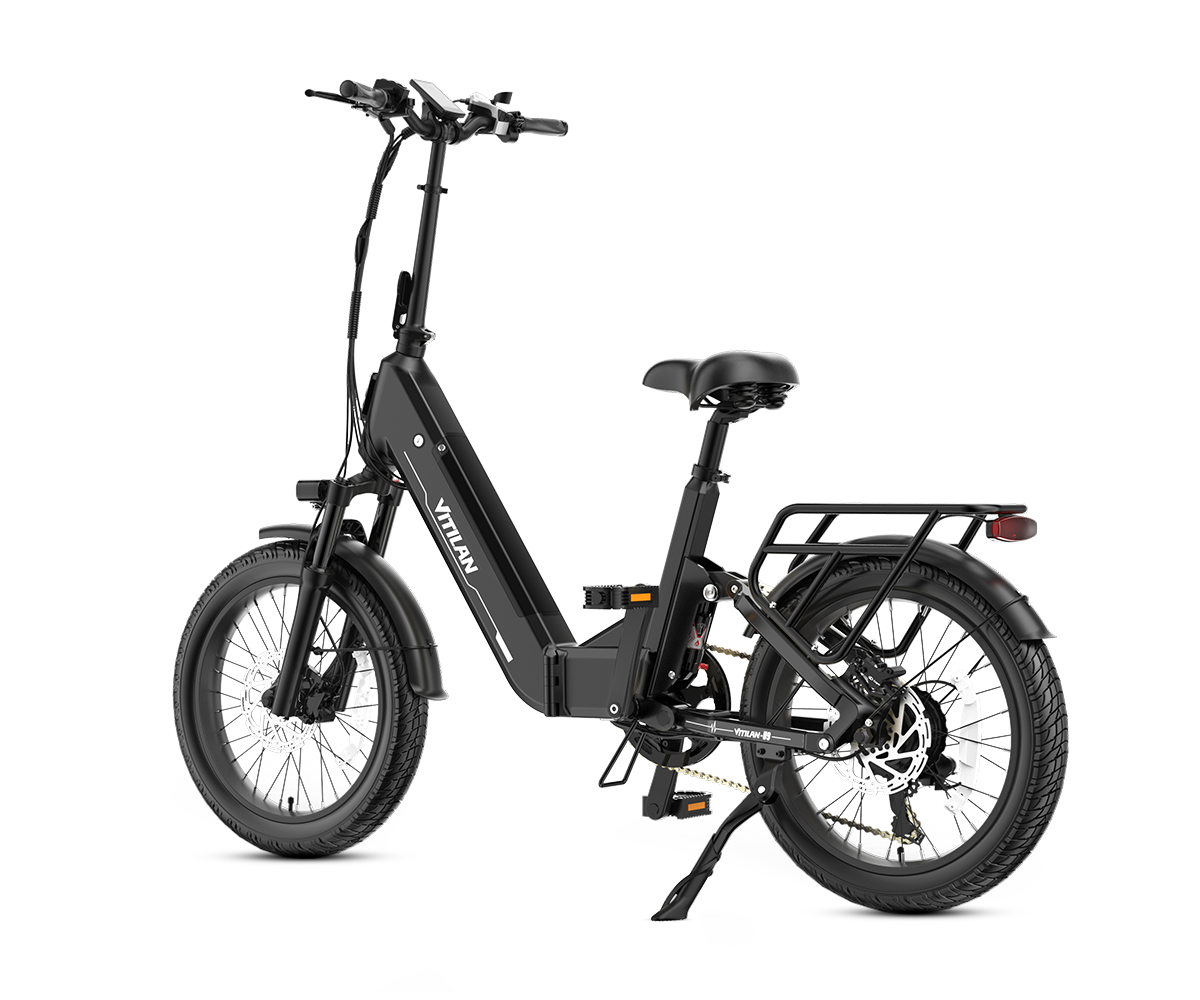

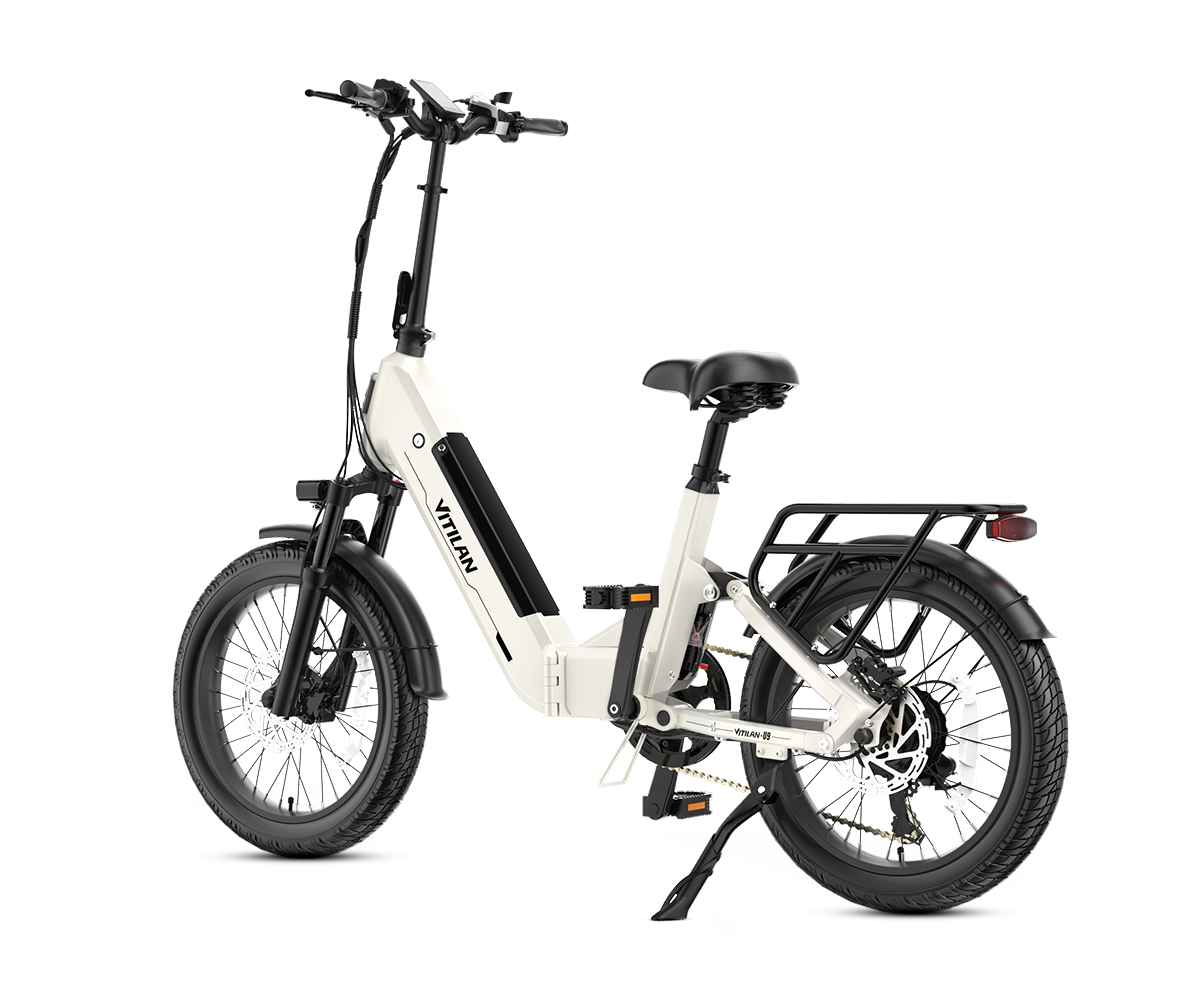

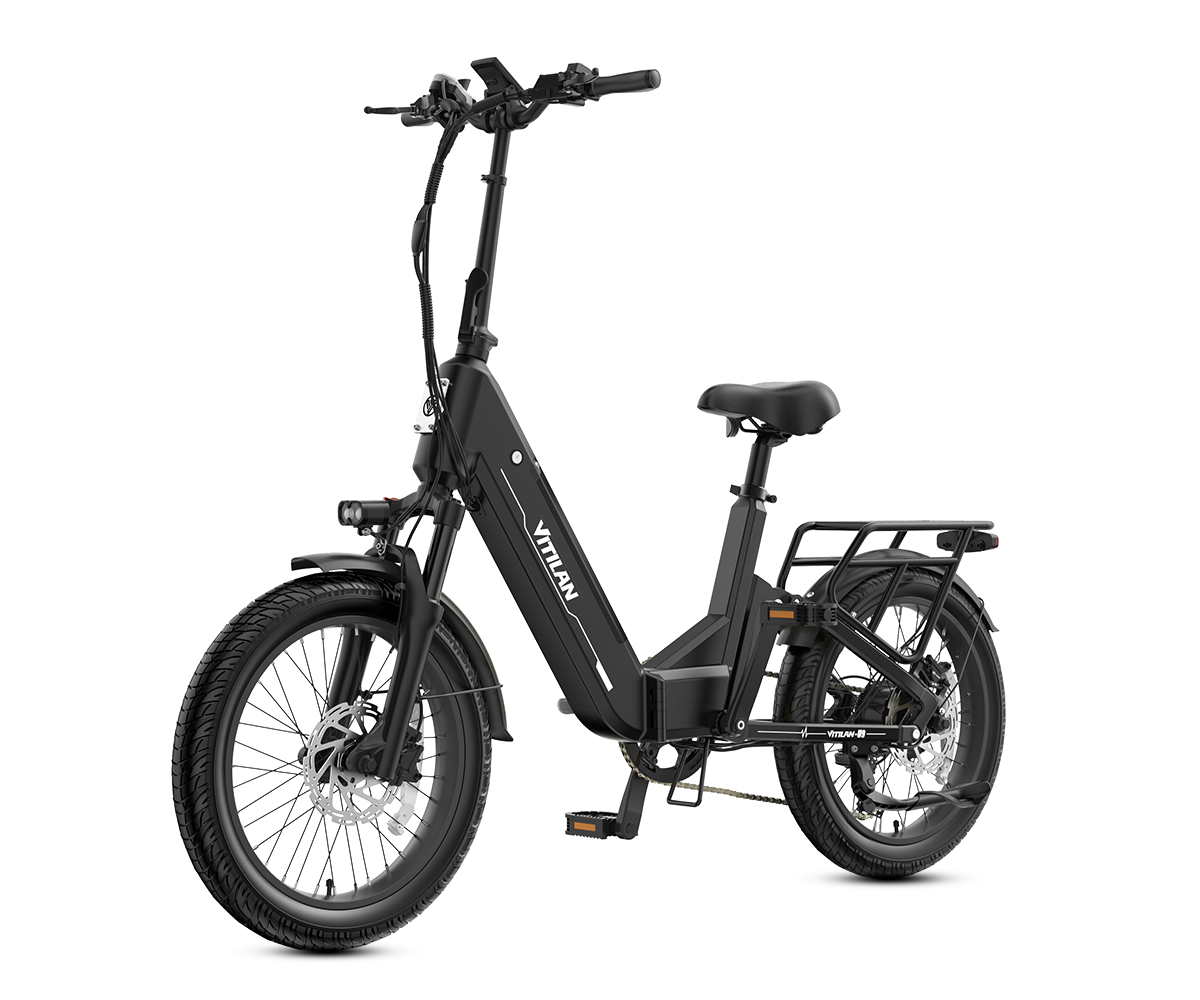

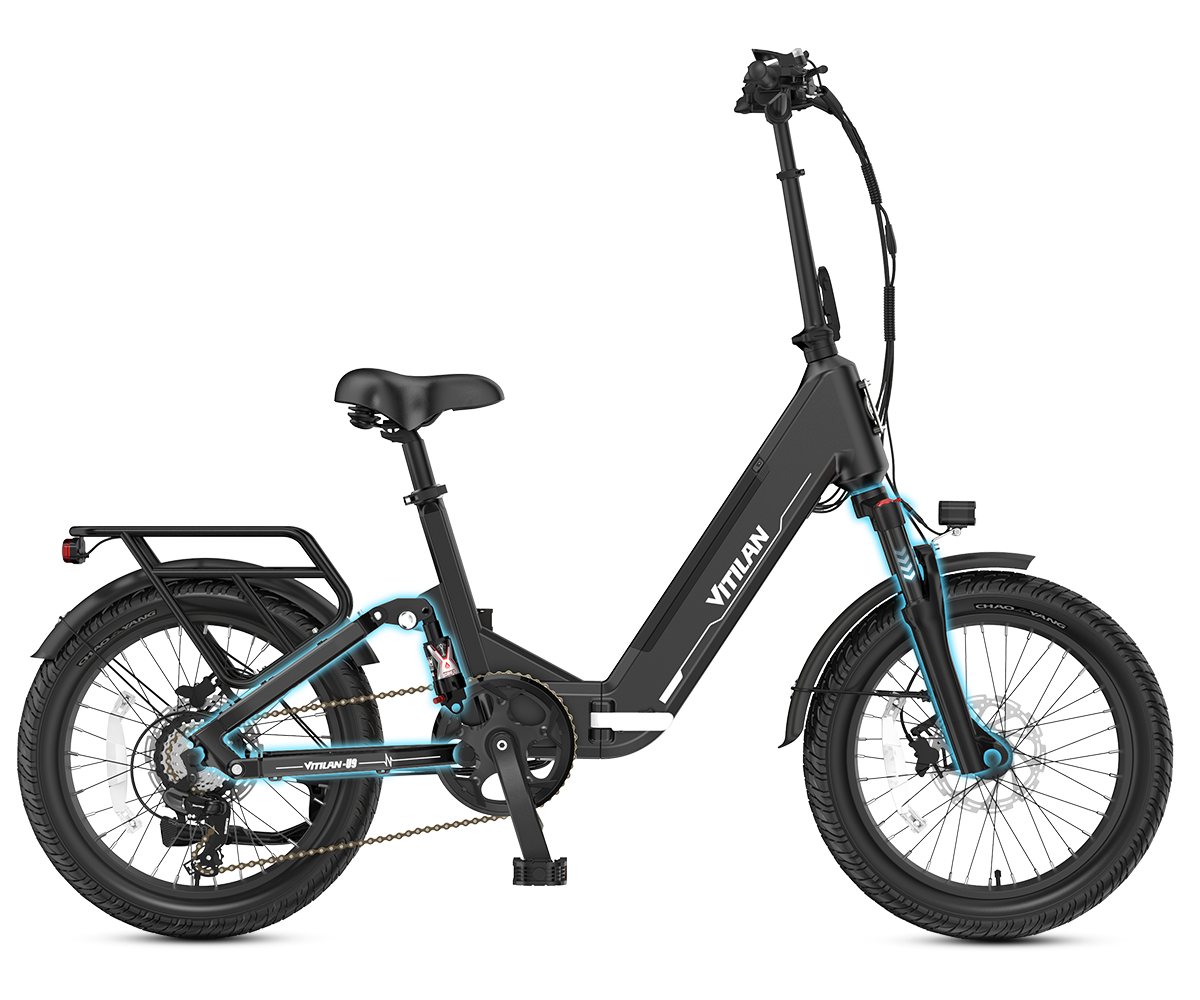

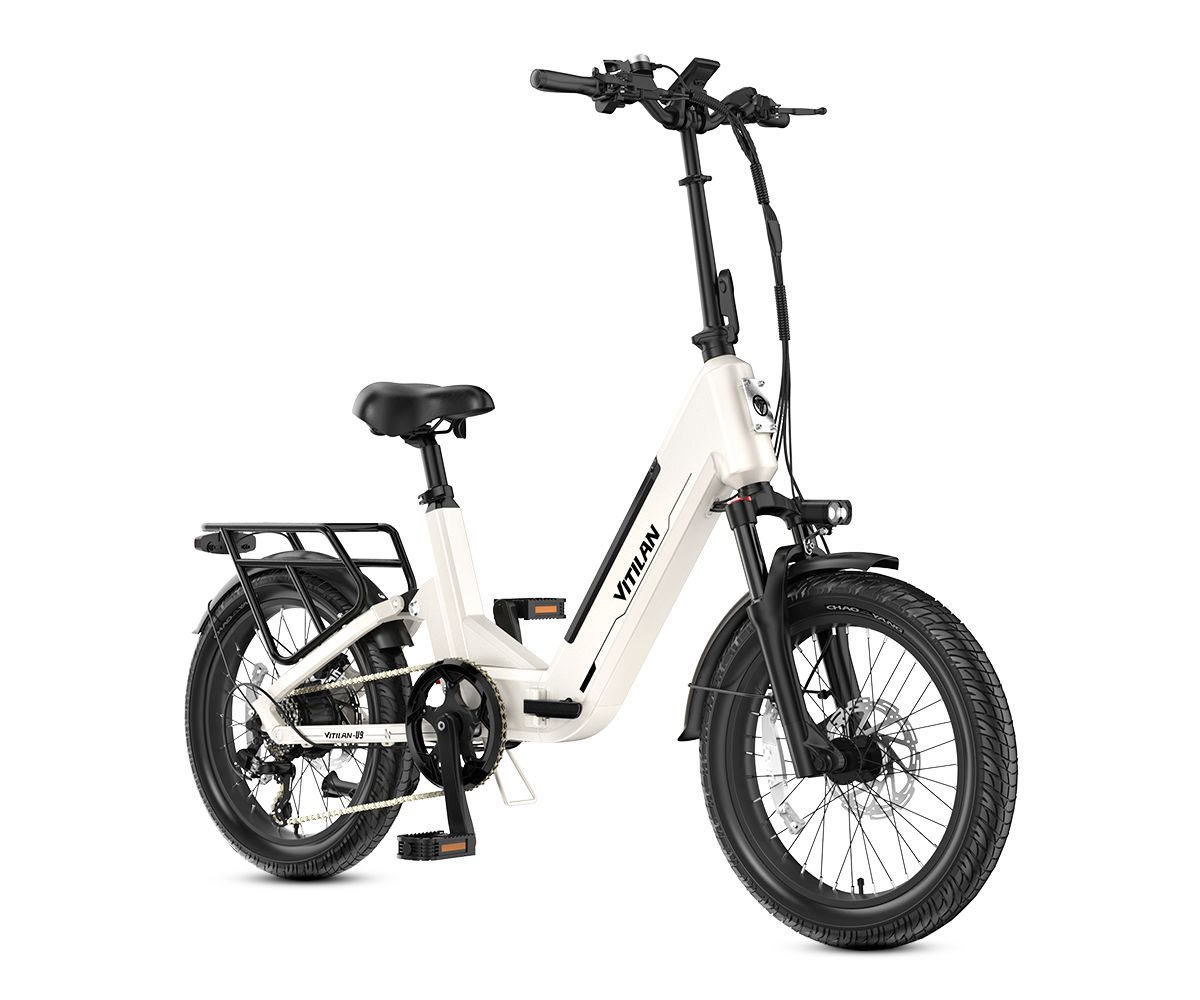

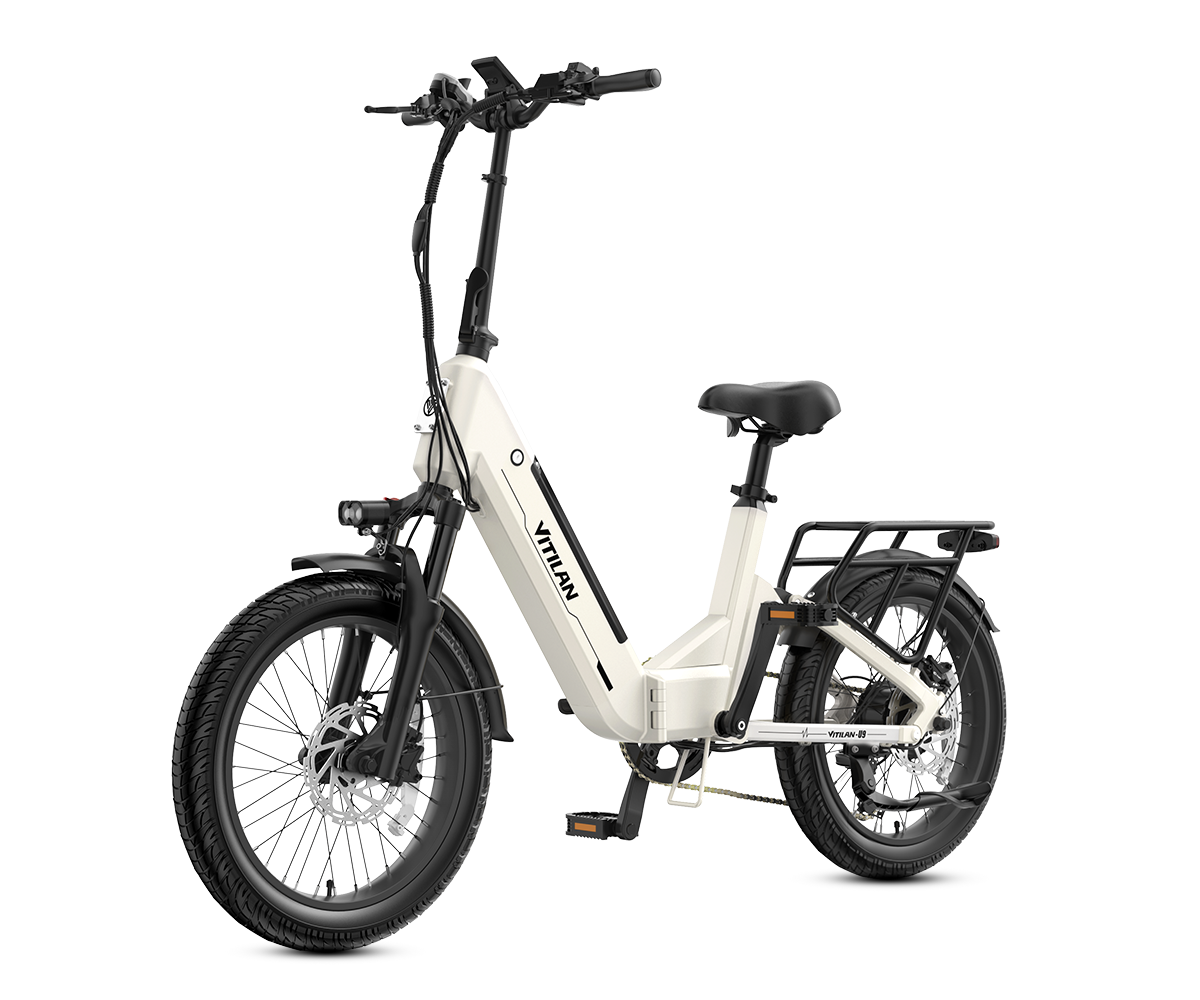

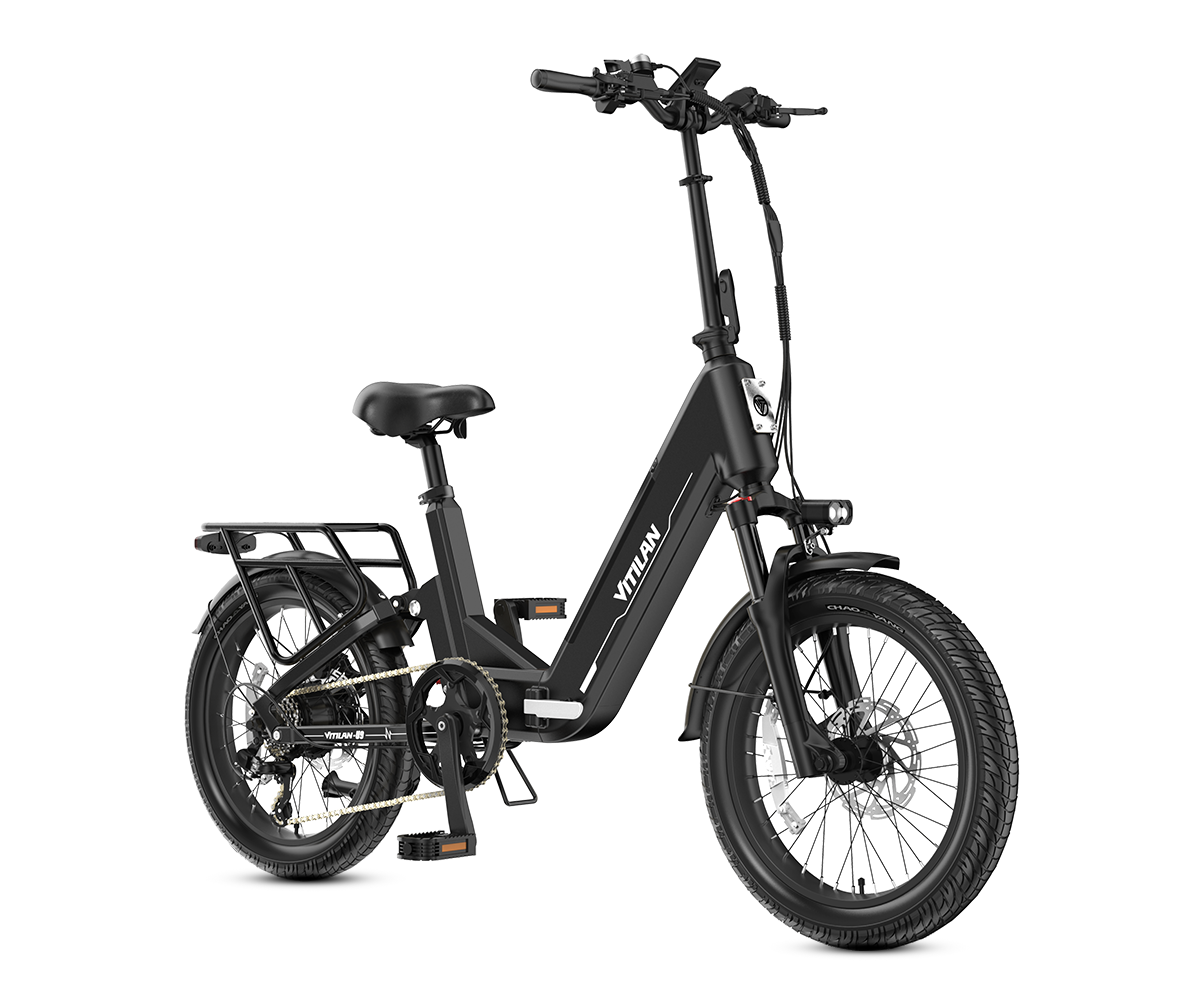

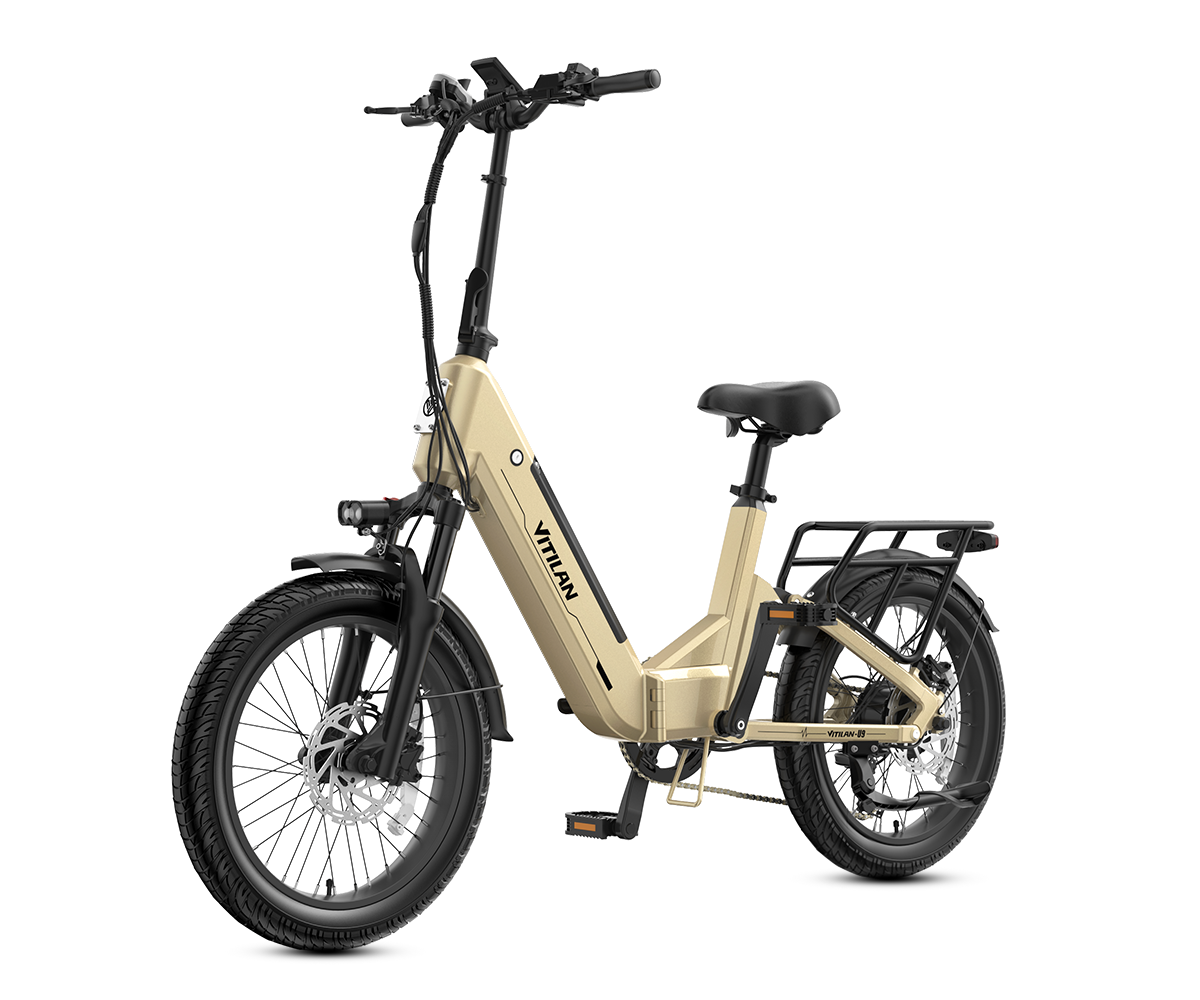

Vitilan U9 20 × 3.0” Full Suspension Torque Sensor Foldable Electric Bike
Vitilan U9 – a compact folding e-bike with 500W (peak 960W) motor, 15Ah LG battery, full suspension, and all-terrain fat tyres. Powerful, comfortable, and easy to store.
- 48V 15Ah LG Lithium-Ion Battery
- 500W/960W Rated/Peak Motor
- Torque Sensor
- Full Suspension
- 50-80km Range
- Max Speed: 45km/h
The U9 is the next evolution in Vitilan’s U-series of step-through electric bicycles, designed for riders who require a comfortable riding experience whilst tackling more challenging terrain. Driven by the same spirit of adventure and everyday practicality, it takes the original vision a step further through sophisticated engineering. From rugged trails and snow-covered paths to city streets, the U9 offers a seamless riding experience without compromise.Dual suspension, a torque sensor, knobby tyres, and hydraulic disc brakes – all ensure a fully optimised all-terrain e-bike system that operates as a unified machine.

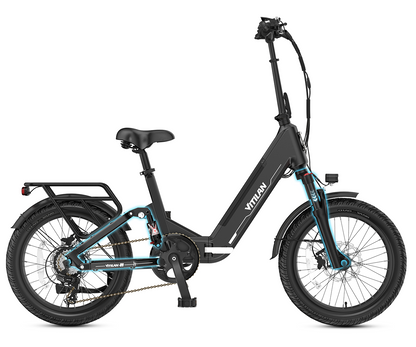

Full-Terrain Suspension for Any Ride
A responsive front suspension and upgraded rear soft-tail system absorb bumps and rough terrain for a smoother, more comfortable ride. Built to handle hard landings and tough trails, the rear suspension keeps the frame stable while reducing wear and maintenance.
500W Upgraded Brushless Gear Hub Motor
The Vitilan U9 is equipped with a motor that delivers 500W of continuous power and 960W of peak power, producing 65Nm of torque. Combined with a torque sensor, this means you can easily navigate up and down hills. From rugged trails and snowy paths to city streets, U9 delivers one seamless ride without compromise.
The U9 can reach a top speed of 45 km/h. If you wish to remove the speed limit, please contact our support team.

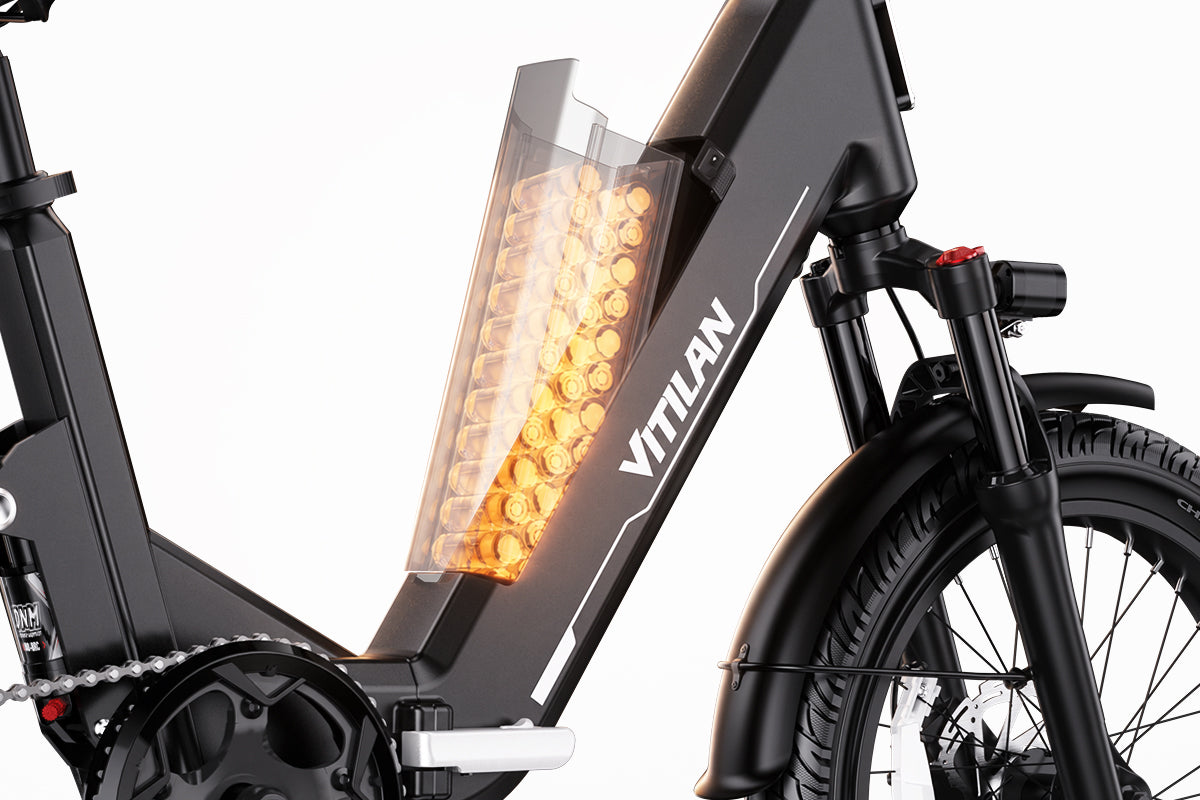

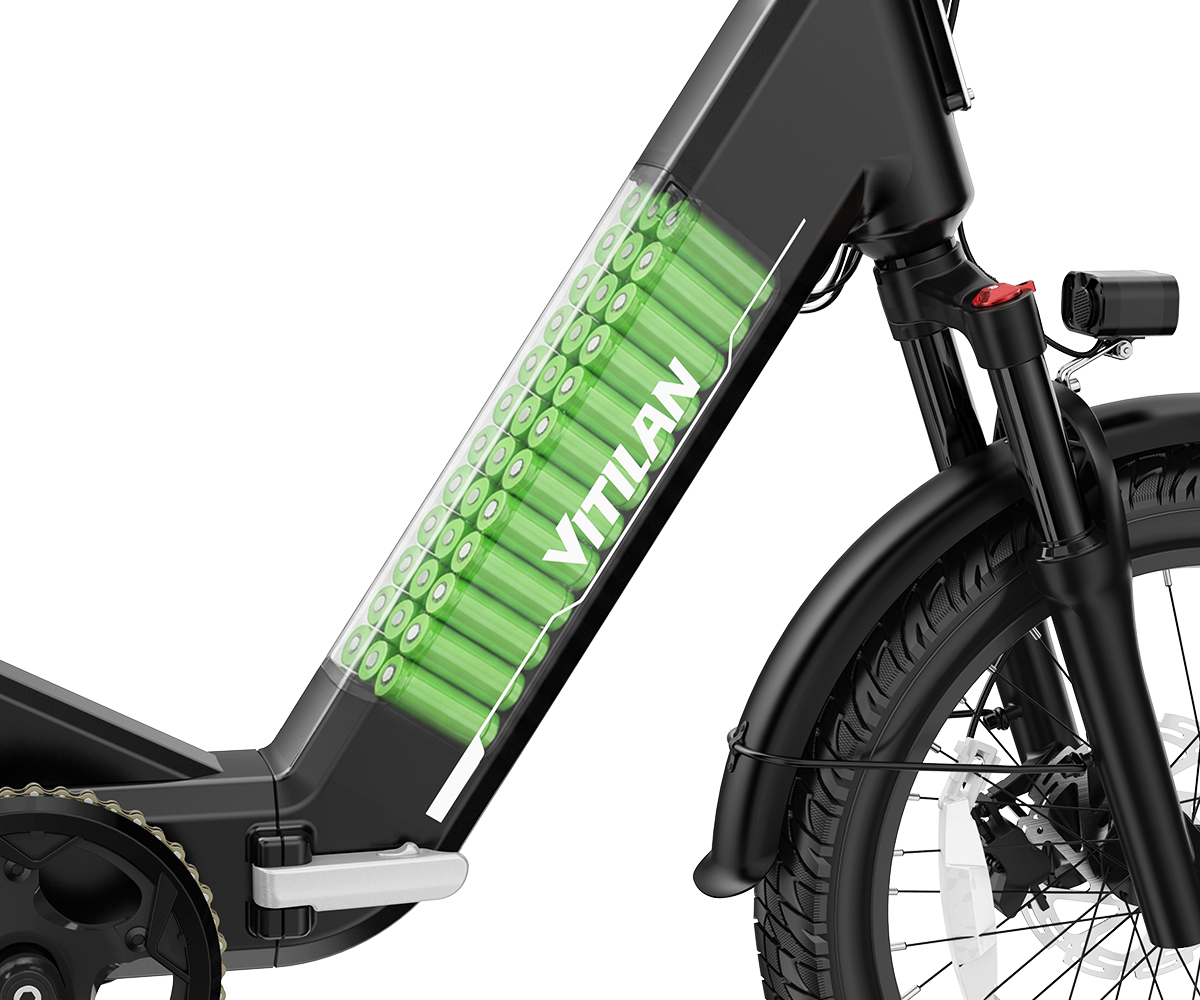

48V 15Ah LG Battery
Powered by LG’s 48V 15Ah battery, the U9 offers outstanding range, ensuring you can tackle long rides with complete peace of mind. Spend less time charging and more time enjoying the thrill of the ride – because your adventures should never be limited by battery life.
Cycling Upgrades
Enjoy a smooth ride and precise control. Smart torque sensor translate every movement into smooth motor power.

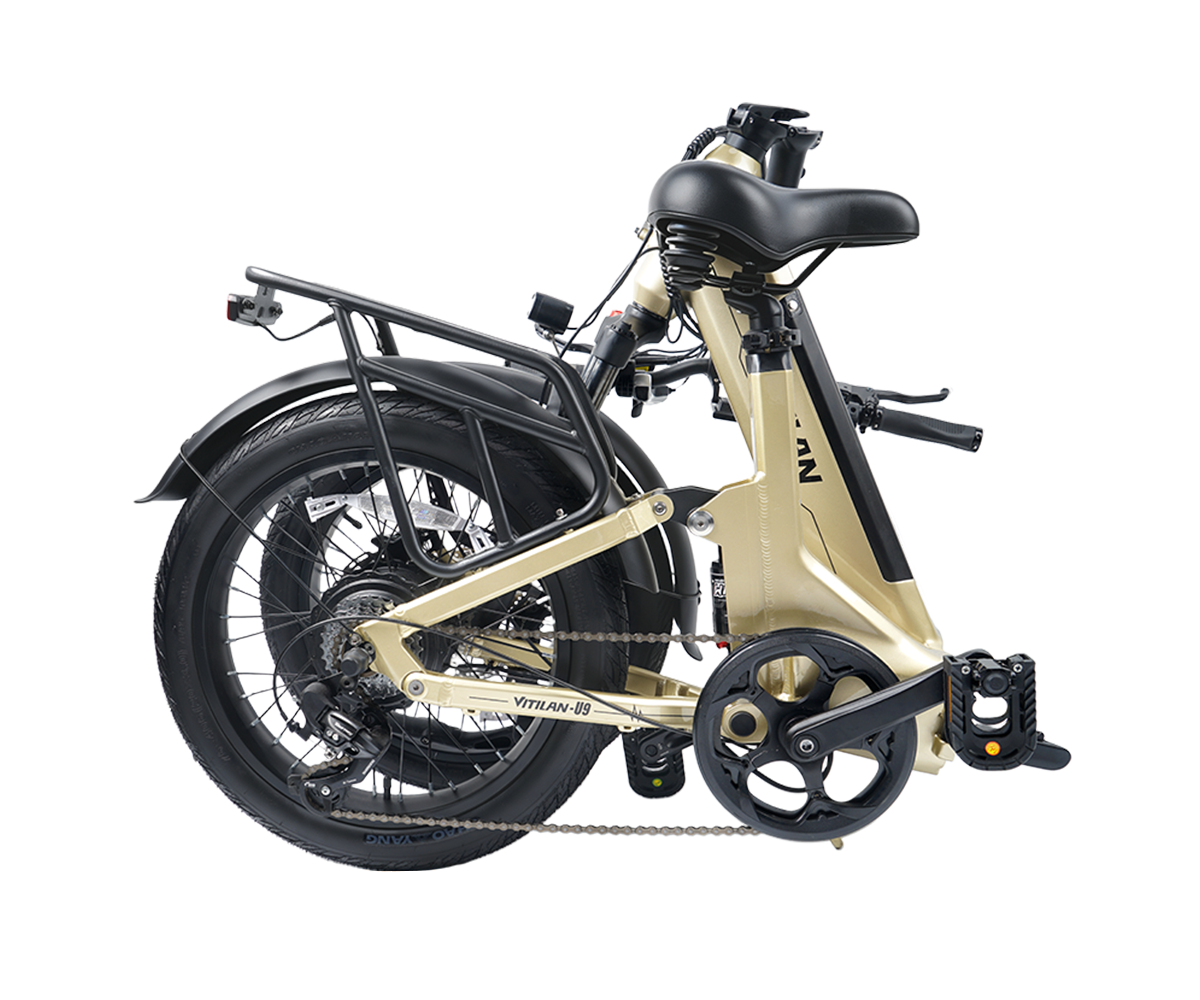

Simple and easy to fold design
Folding e-bike takes up less space in the home or garage,you can also fold it up and put it in the large trunk, itis easy for you to take with the e-bike on the travel and vacation.
Specification
| Battery: |
48V 15AH LG detachable battery
|
| Mile Range: | 50-80km |
| Hub Motor: |
500W Brushless Motor(peak 960W)
|
| Total Payload Capacity: | 330 lbs |
| Recommended Rider Heights: | 5'3" ~ 6'5" |
| Tires | 20" x 3" Fat Tires |
| Gear Shifting System: | Shimano 7 Speed Gear |
| Auxiliary lights: |
Brake lights, left and right turn signals
|
| Bell/Horn: | Electric Horn |
| Charger: | 54.6V 2.0A DC 2.1 Charger |
| Controller: | 48V / 15A |
| Display: | Multi-function Intelligent Display |
| Weight: | 78lbs |
| Front Fork: | Air Suspension Front Fork |
| Throttle: | Thumb Throttle |
| Fender: | Included |
| Max Speed： | 45km/h (Initial speed 25km/h) |
| IP level | IPX6 |
Size
| A. Total Length: | 66.54" |
| B. Minimum Handlebar Height | 46.06" |
| C. Wheelbase: | 45.28" |
| D. Minimum Seat Height: | 31.10" |
| E. Maximum Seat Height: | 41.34" |
| F. Chain Stay Length: | 19.29" |
| G. Frame to Ground Height: | 15.35" |
| H. Top Tube Length: | 25.2" |
| I. Wheel Diameter: | 20" |
| J. Head tube length: | 23.62" |
| K. Maximum Handlebar Height: | 51.97" |
| L. Length: | 37.01" |
| M. Height: | 31.50" |
| N. Width: | 18.5" |
| Recommended Height: | 5’3”-6’5” |
More Reasons to Love It

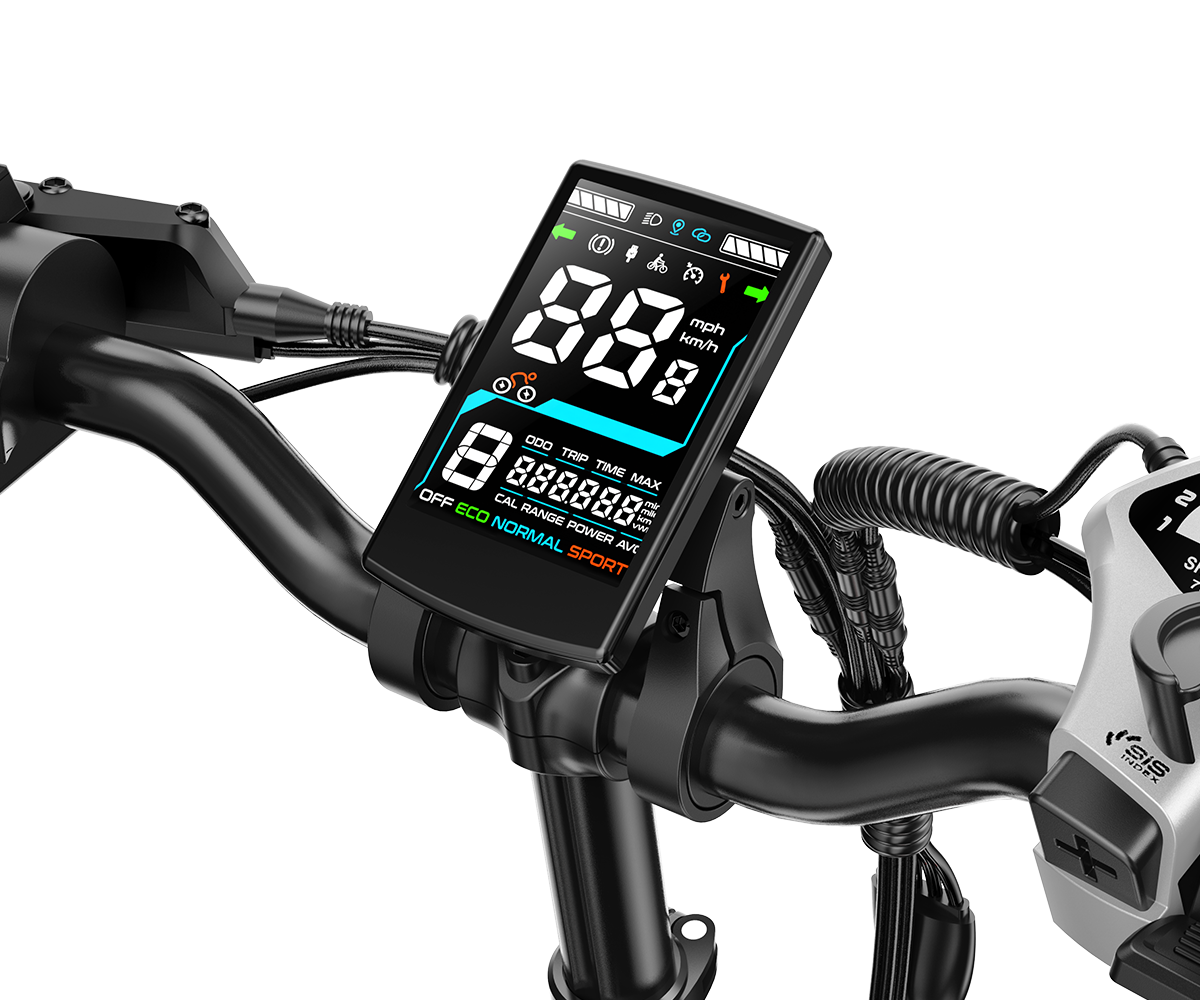

LCD Digital Panel
Displays critical ride data like speed, battery life, and mileage, with excellent visibility in all light conditions.

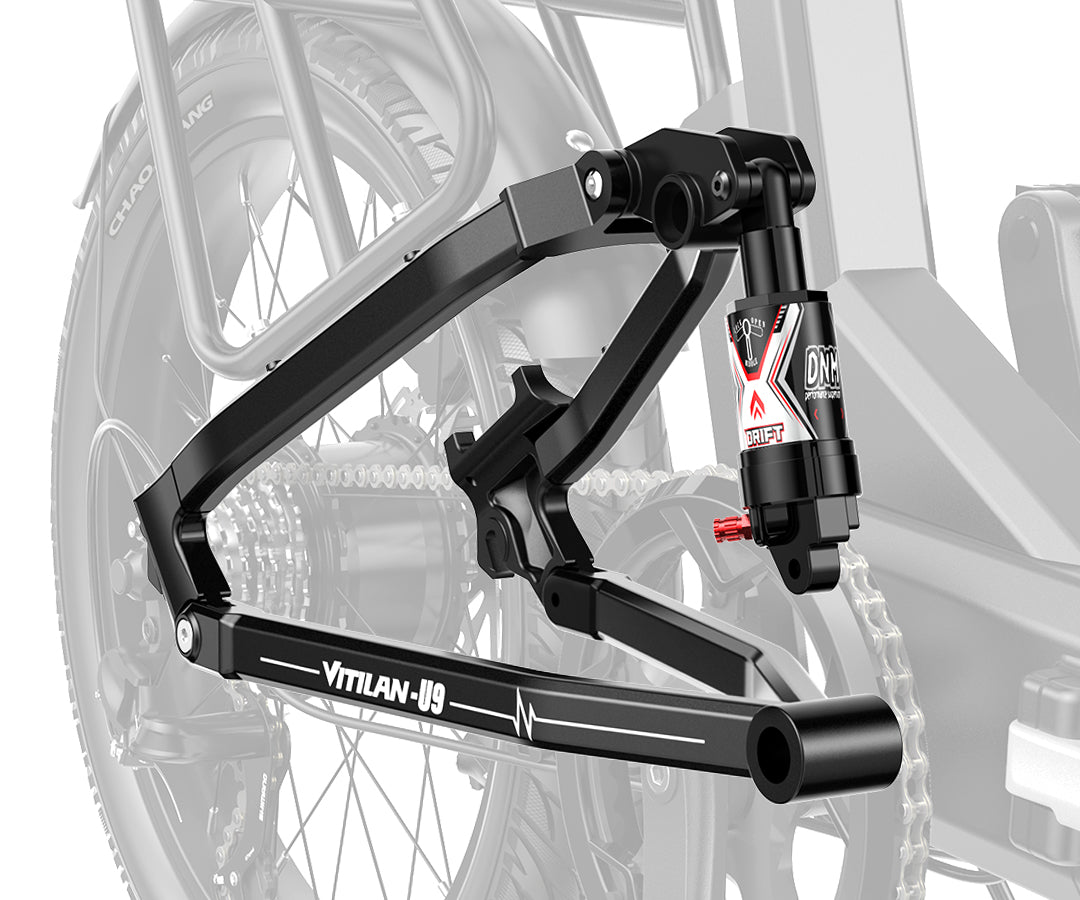

DNM Center Shock Absorber
The four-link suspension with DNM AO-6 30mm Air Suspension absorbs rear-wheel impacts with precision. Delivers a smoother ride over rocky or uneven trails.

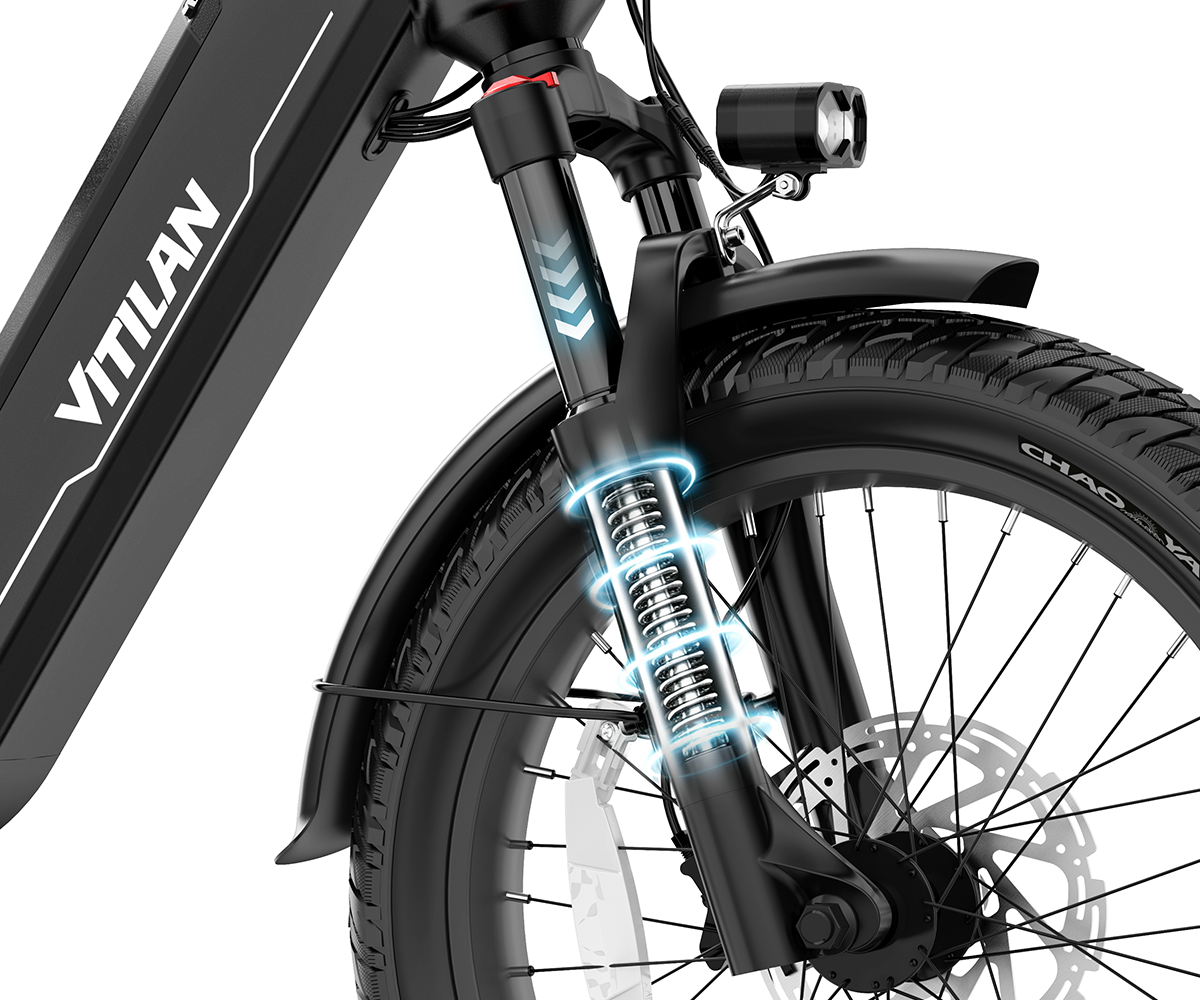

High-Quality Hydraulic Front Forks
With its single-shoulder hydraulic suspension, you can ride with confidence in any situation.

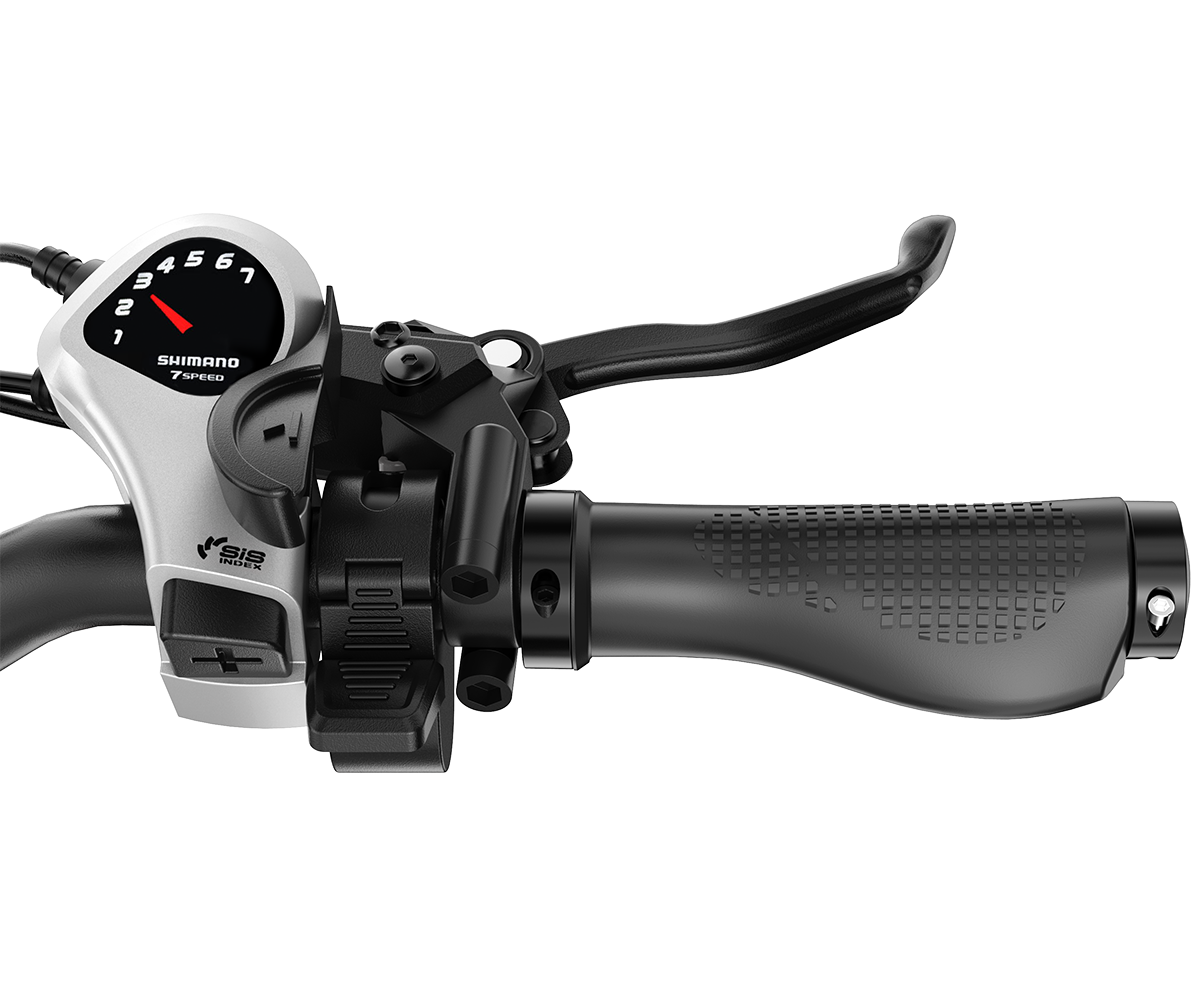

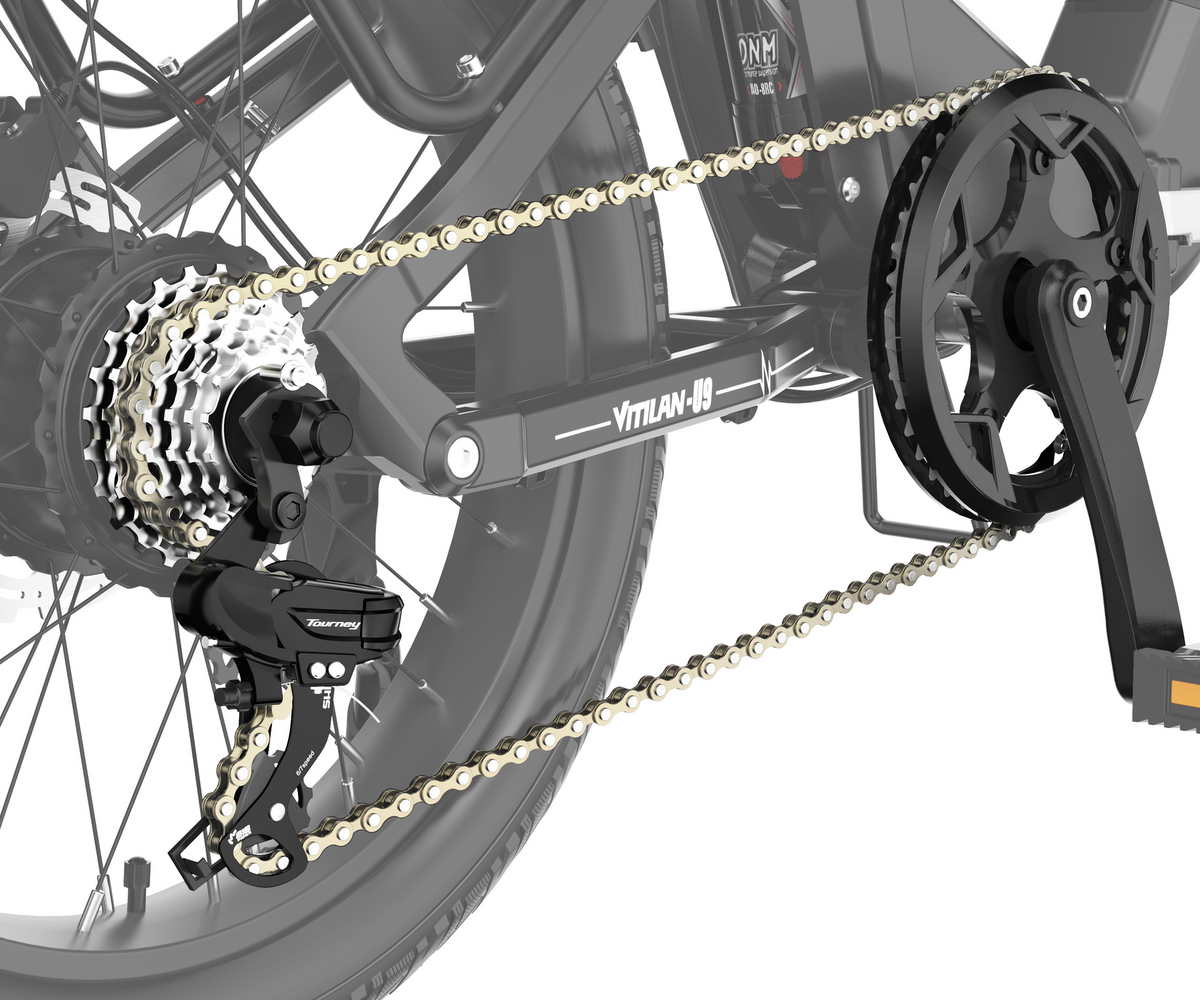

Shimano 7-speed Gear Shift System
You can choose different gears according to the road conditions, giving you a more comfortable riding experience.

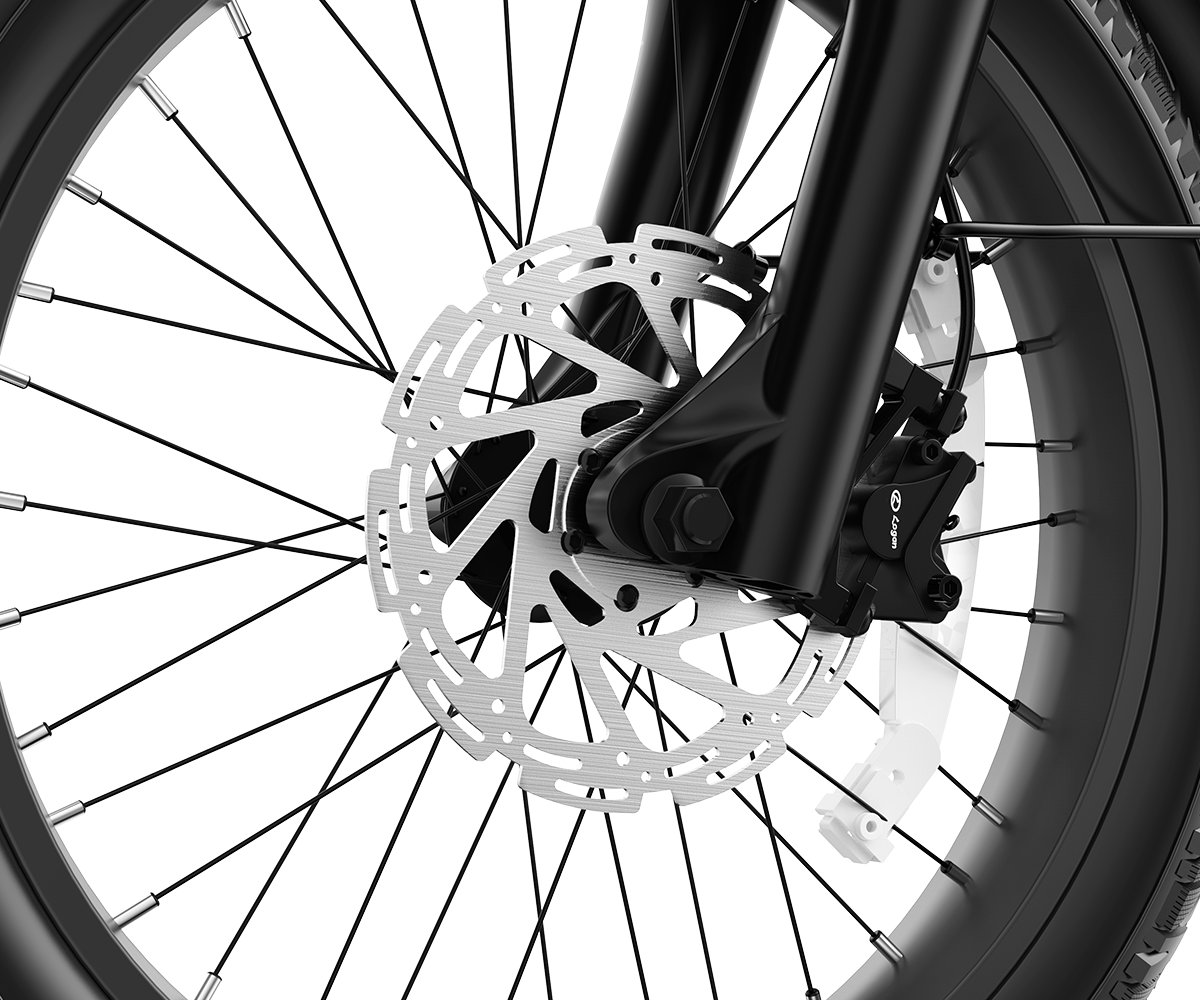

Hydraulic Brake Sensitive
180mm mechanical disc brakes provide ample braking force even in the harshest conditions efficiently. they are less susceptible to mud or rain, less effort is required on the levers, and fingers and arms are less prone to fatigue.

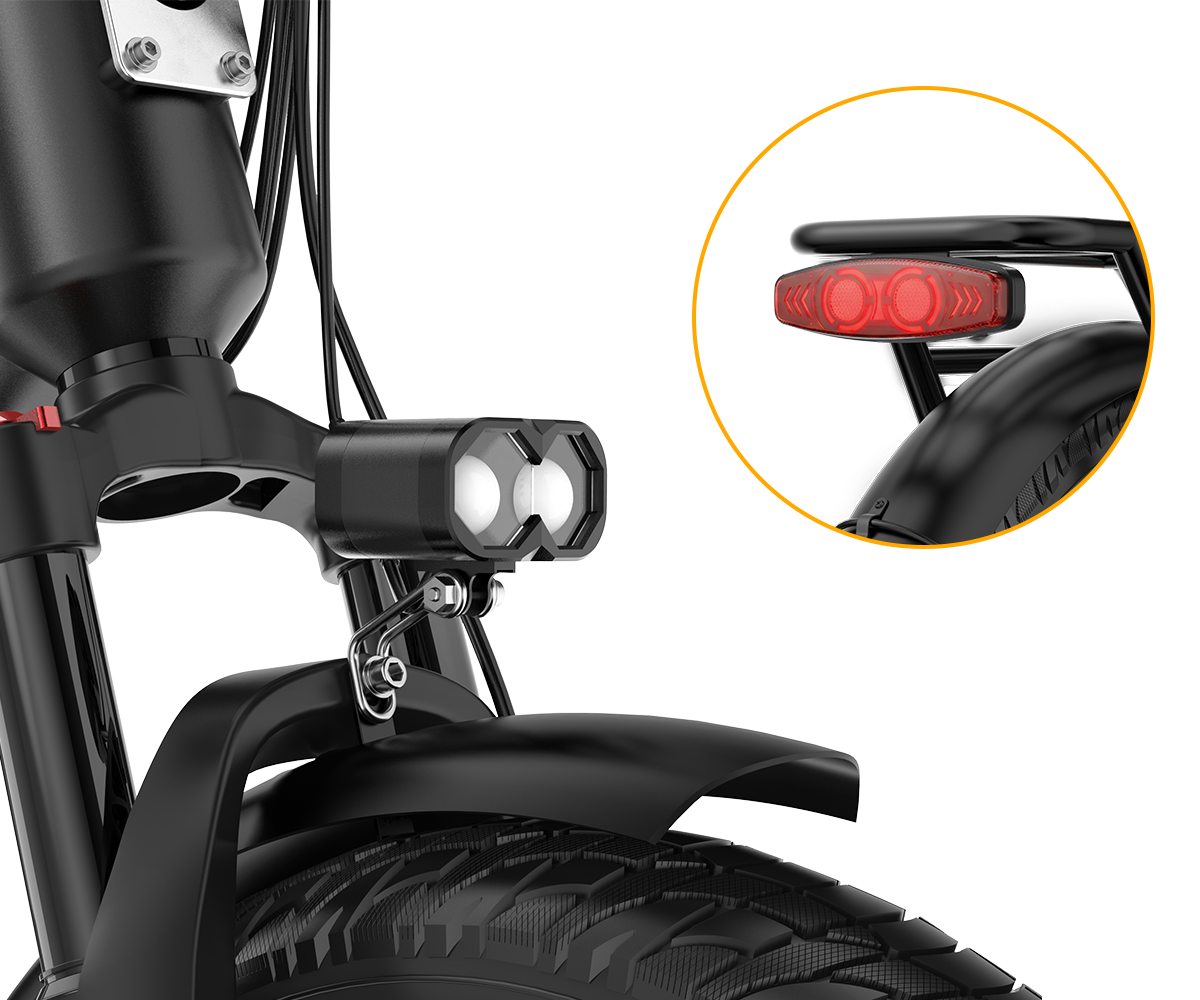

LED Headlight and Rear Turn Signal Light
The bright 48V headlights and rear LED lights illuminate the road ahead, ensuring your safety while riding both day and night. The rear taillights, featuring brake lights and left/right turn signals, serve as an effective safety warning when you're navigating through traffic or crowds.

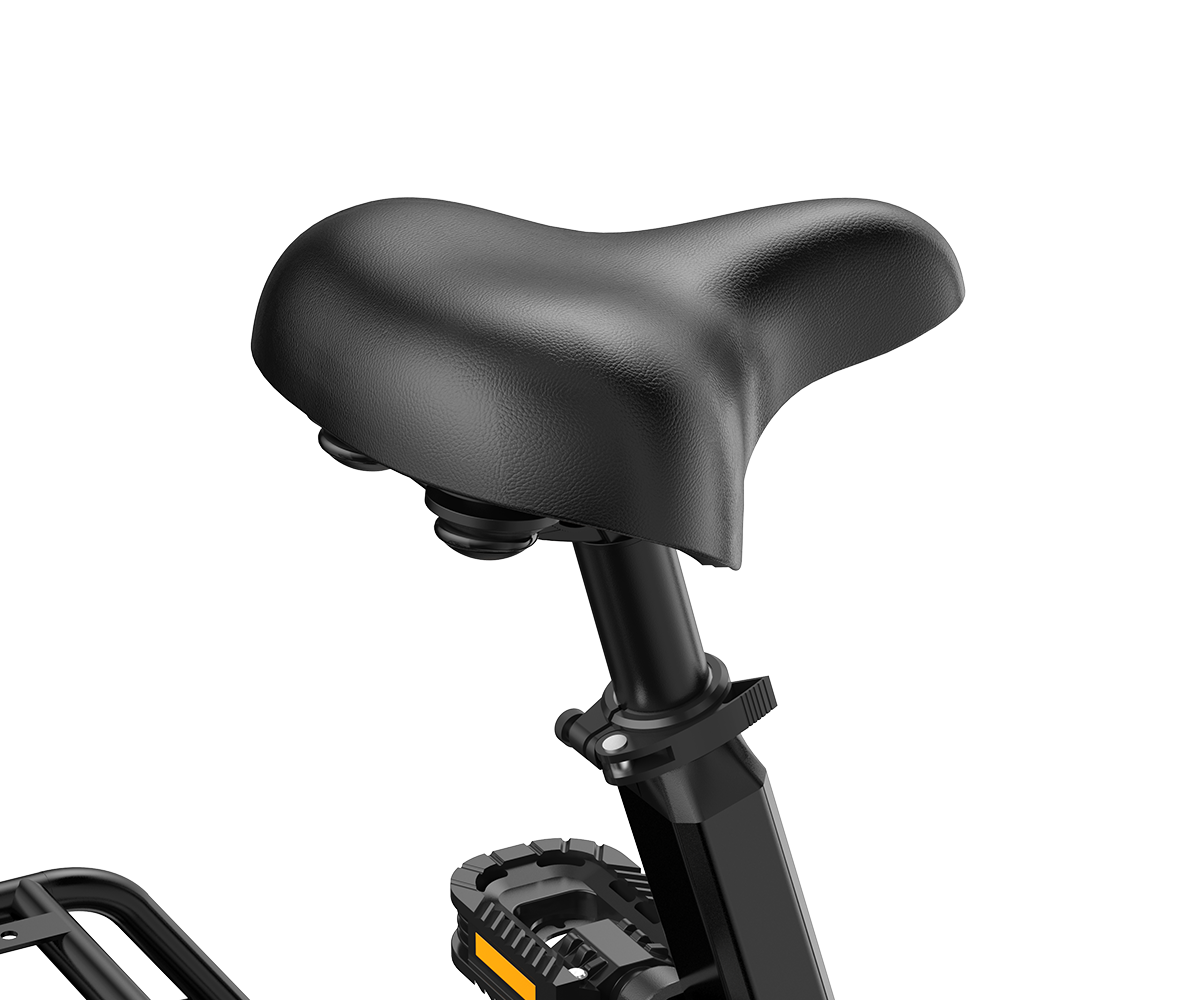

Soft and Comfortable Seat
Vitilan bike seats are ergonomically designed to fit your body. They are shaped to match your riding position and will free you from strain and fatigue caused by long rides.
Thumb Throttle
Thanks to the assist sensor, you can save both time and energy whilst cycling. With the Thumb Throttle, you can easily keep up with traffic and navigate rush-hour journeys with ease, even without pedalling hard.

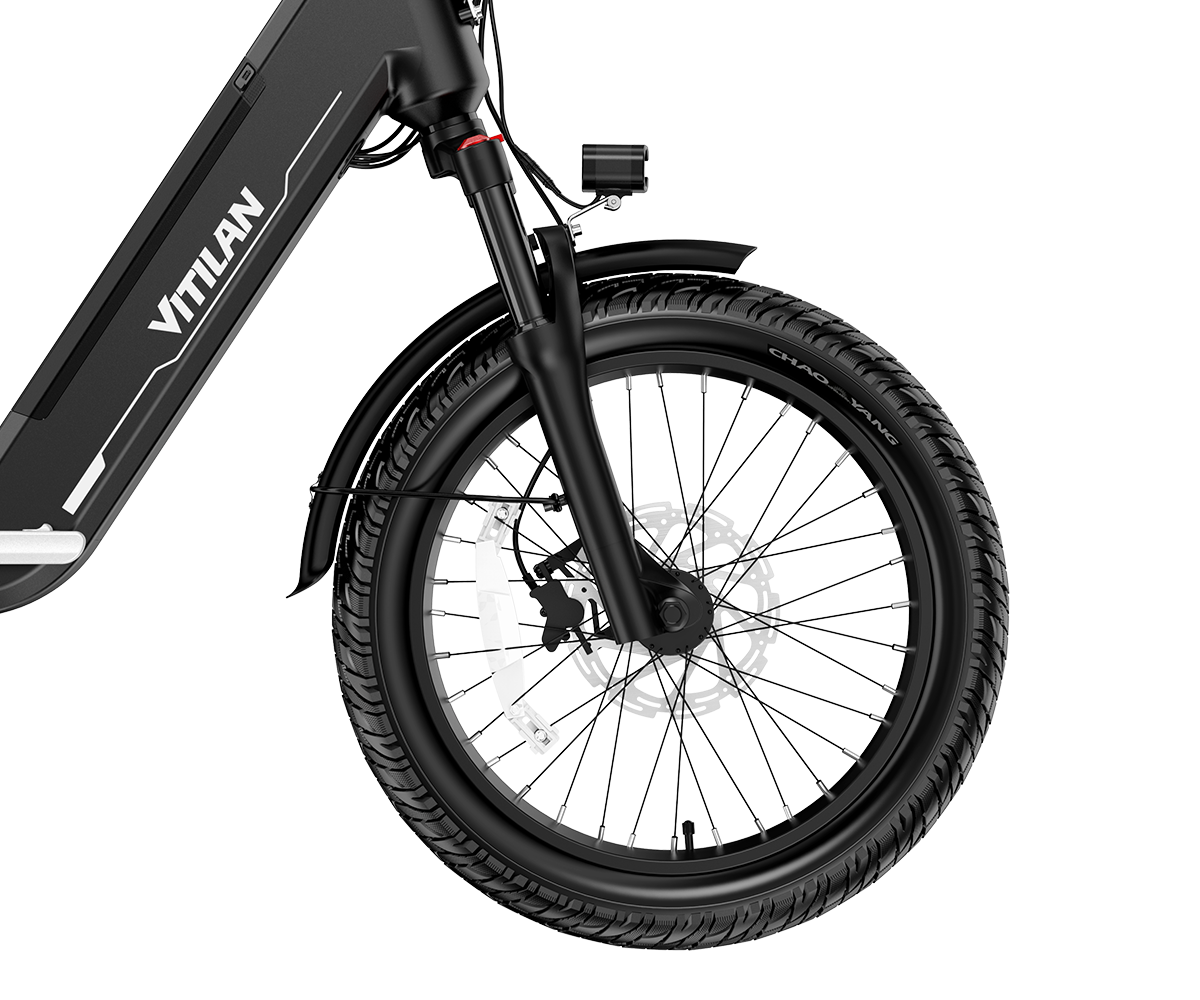

20"*3" CHAOYANG Wheels
The 20*3.0 fat tires with granular pattern grip the ground more powerfully and anti-skid
Everything You Need to Know Before Buying
E-Bike FAQ
Which e‑bike is right for me?
Here's a quick guide:
Easy access & mobility-friendly – Step‑through frames, low standover height, and optional three‑wheel designs for extra stability. Perfect for seniors, riders with limited mobility, or anyone who wants to mount and dismount with zero effort.
City commuter – Step‑through frame, 25‑28" wheels, torque sensor, 80‑100 km range.
Foldable & portable – 20" wheels, compact storage, great for apartments or multi‑modal commutes.
Cargo & family – 200 kg payload, longtail design, child‑seat compatible, 150+ km range.
Off‑road & adventure – 20×4.0" fat tyres, full suspension, 80‑120 km range.
Premium lightweight – Carbon fibre frame, under 15 kg, belt drive, torque sensor.
How does the FREE Assembly & Delivery work?
We professionally build, test, and tune every bike in our workshop, then deliver it fully assembled to your door.No tools, no setup, no unboxing hassle – just unbox and ride.Note: this offer applies to selected models and online orders only – check the product page for details.
Can I use the Bike to Work Scheme on this e‑bike?
Absolutely. All our e‑bikes areBike to Work Scheme eligible– you can save up to52%through tax‑free salary sacrifice. We handle the paperwork and issue your HR‑ready invoice within 24 hours.
What's a torque sensor? Why does it matter?
A torque sensor measures how hard you're pedalling and delivers power in proportion to your effort. Pedal harder, get more assist – pedal lighter, get less. It makes the ride feel natural, smooth, and intuitive, like you've suddenly got superhuman legs. Models with torque sensors are significantly more responsive than those with basic cadence sensors (which just detect pedal rotation).
