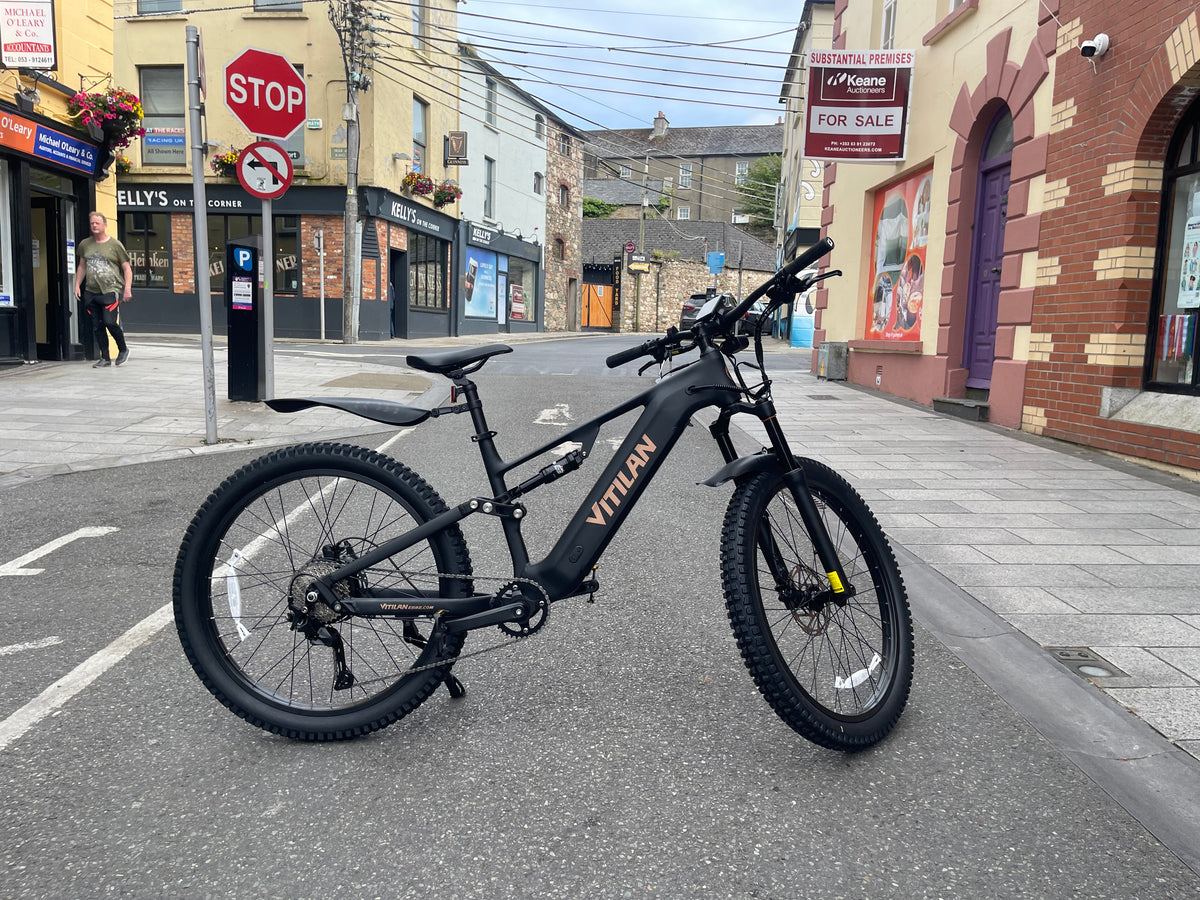

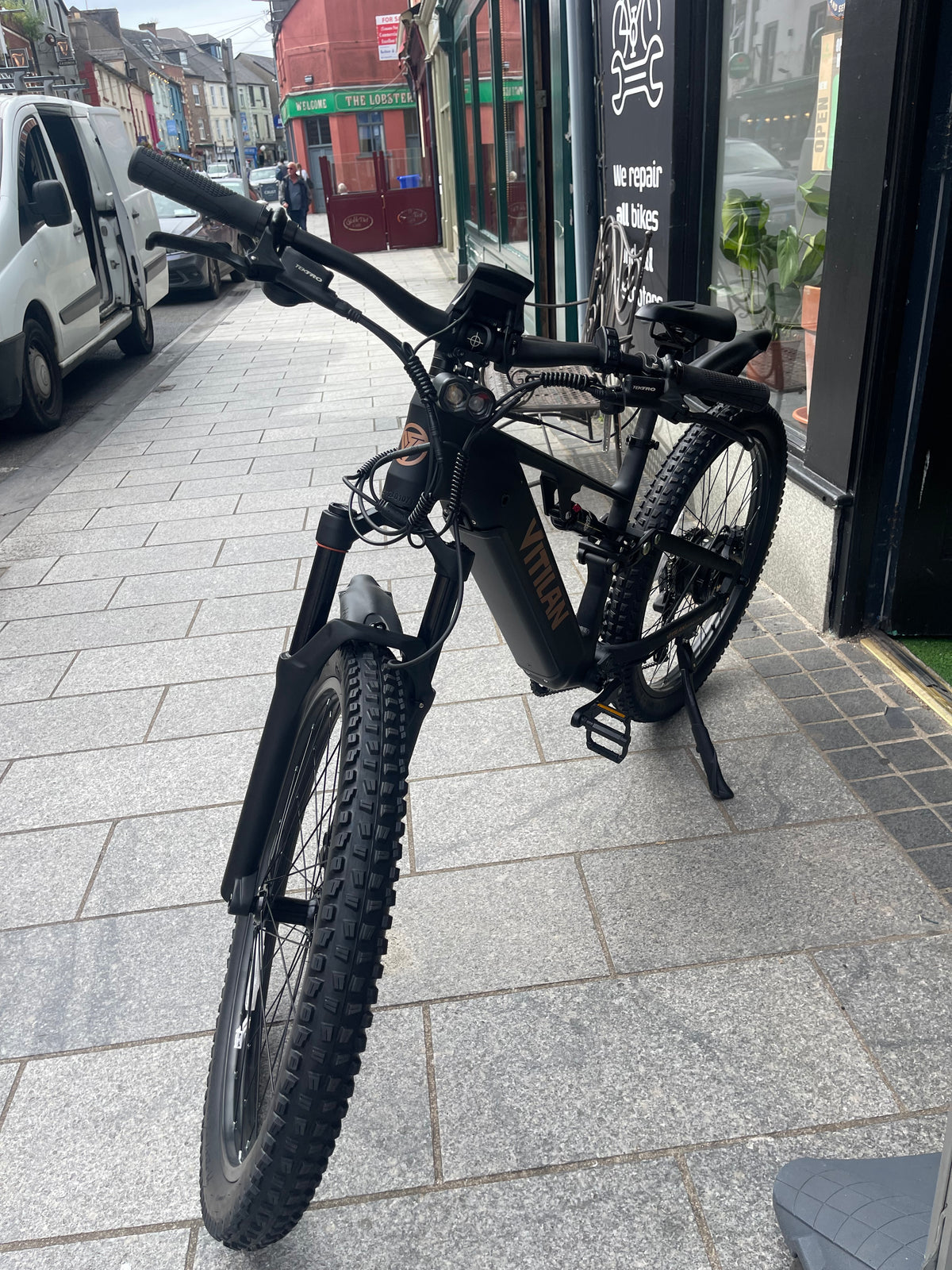

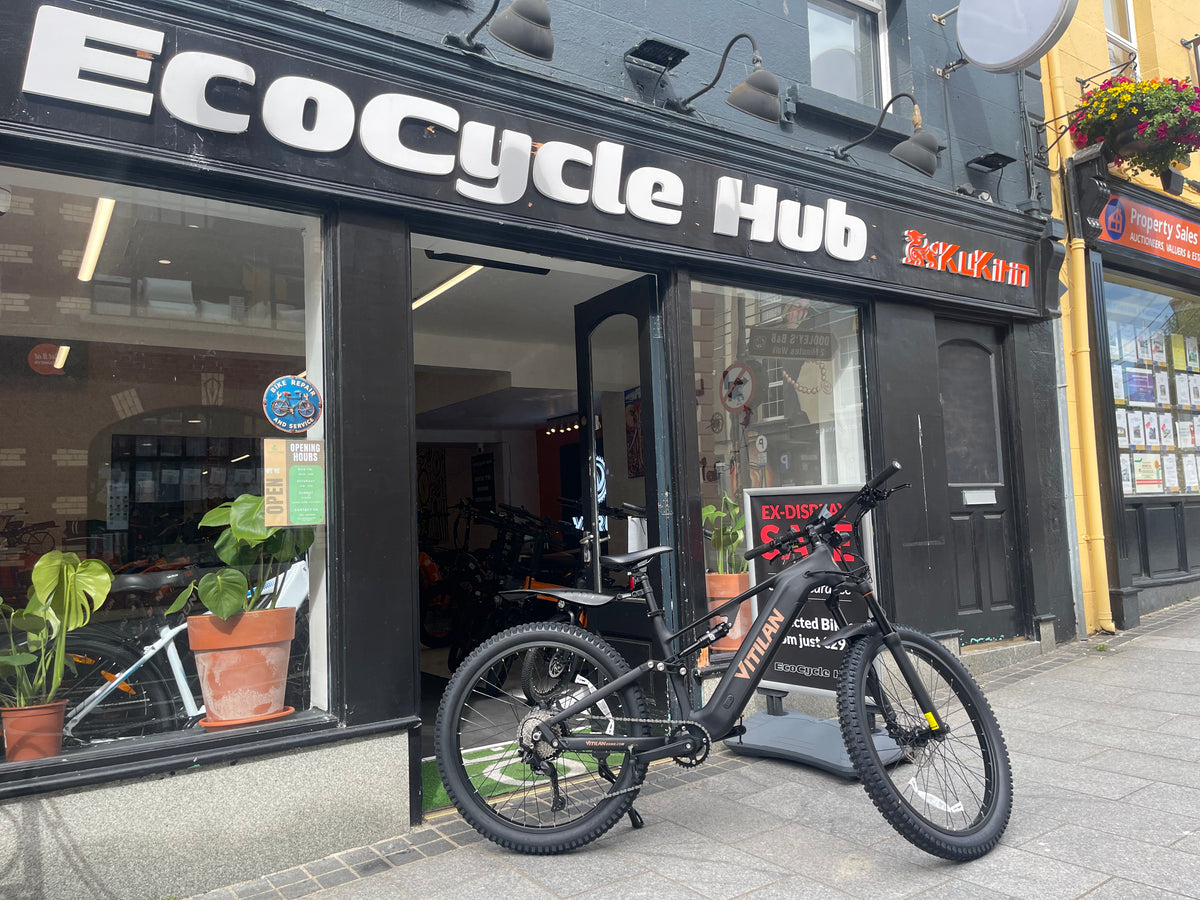

Real Riders, Real Store Moments
Real Riders, Real Store Moments
Every bike that leaves our shop comes with a story. Here are a few of our customers – fresh from the collection, right outside our door.
Test ride at home – Wexford area only
Test ride at home – Wexford area only
Pay a small delivery fee and try the bike at your own door. If it's not the right fit, we'll collect it. No obligation, no risk.
Couldn't load pickup availability
Why Buy From EcoCycle Hub?
🏢 Physical Store & Real Local Support: Based in Wexford with dedicated Irish-based customer service—no generic bots, no language barriers, no endless back-and-forth!
🛠️ Full Warranty & Tech Assistance – Expert remote technical help & full manufacturer warranty backing. Our local workshop team is always here to guide you.
💼 Bike-to-Work Scheme Approved: Save up to 52%! We handle all the paperwork and deliver your official HR-ready invoice within 24 hours.
🎁 Exclusive Offer: Buy 2 e-bikes today and get FREE professional assembly & home delivery (save €180)!
🇮🇪 100% Irish Local Support: Fast, reliable customer care based right here in Ireland.

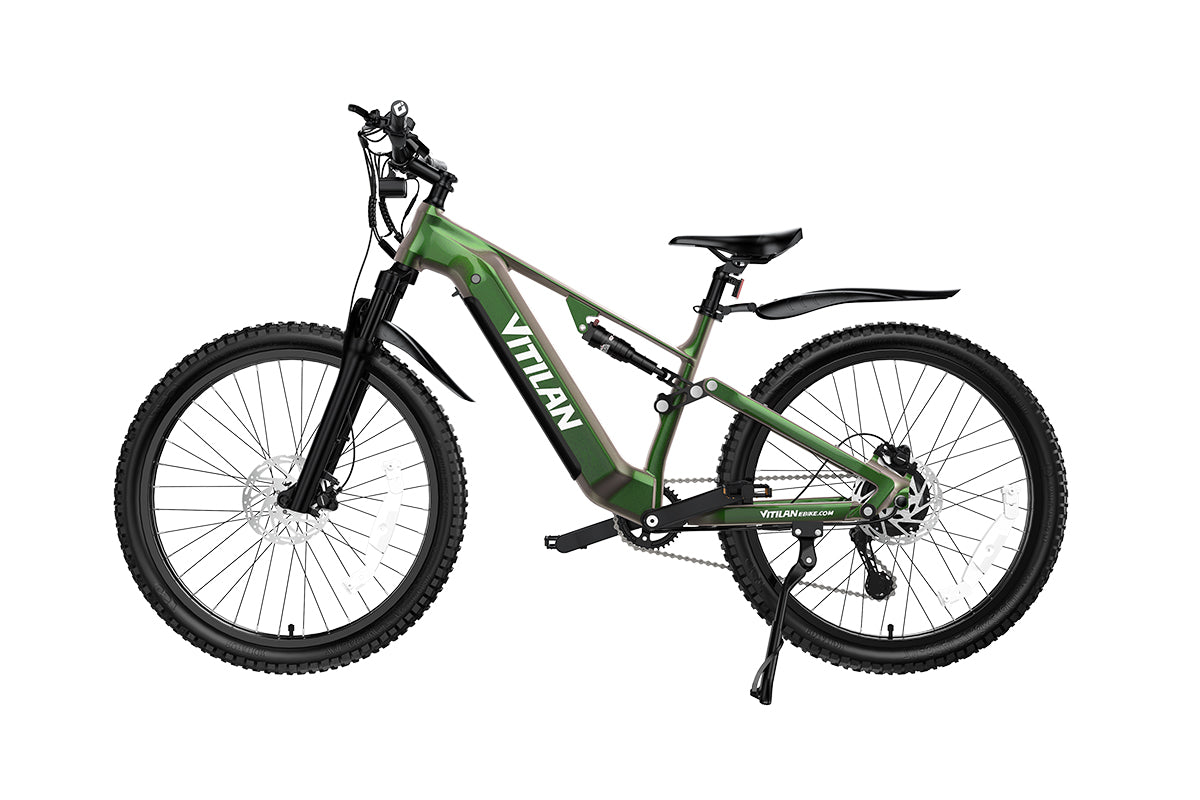

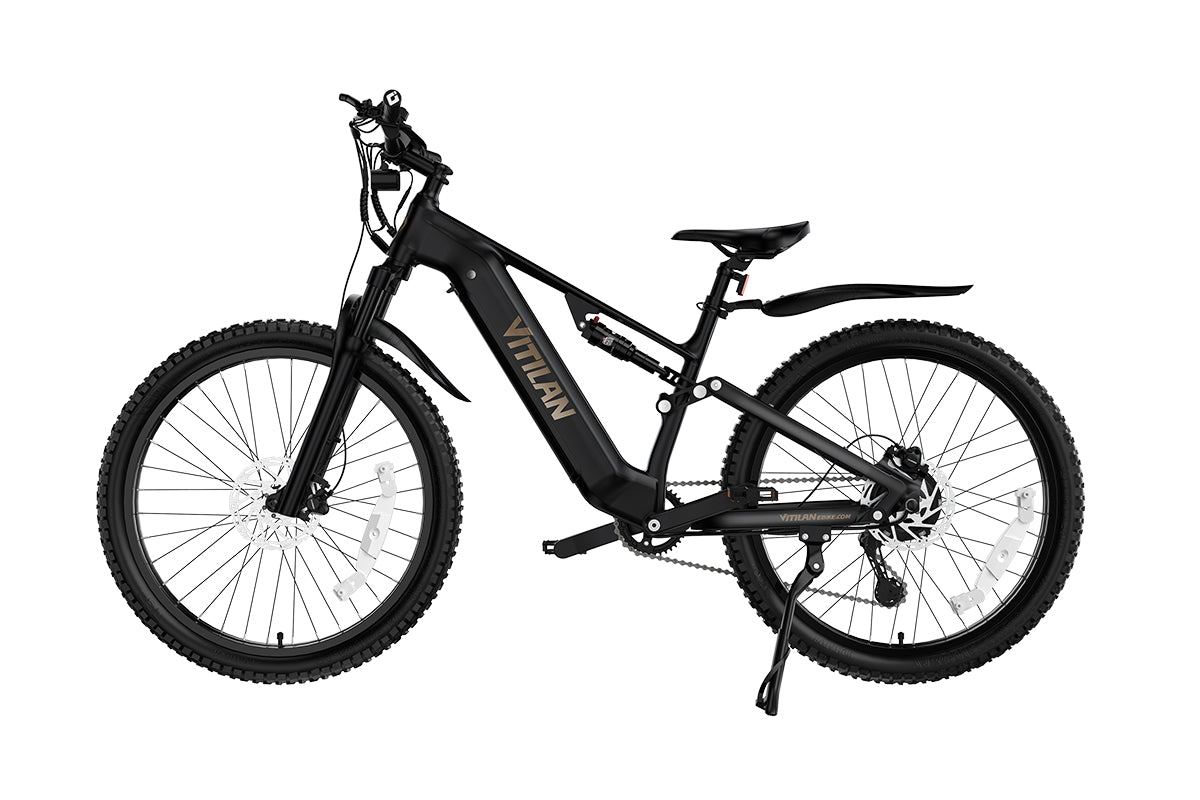

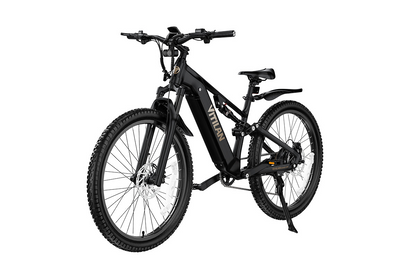

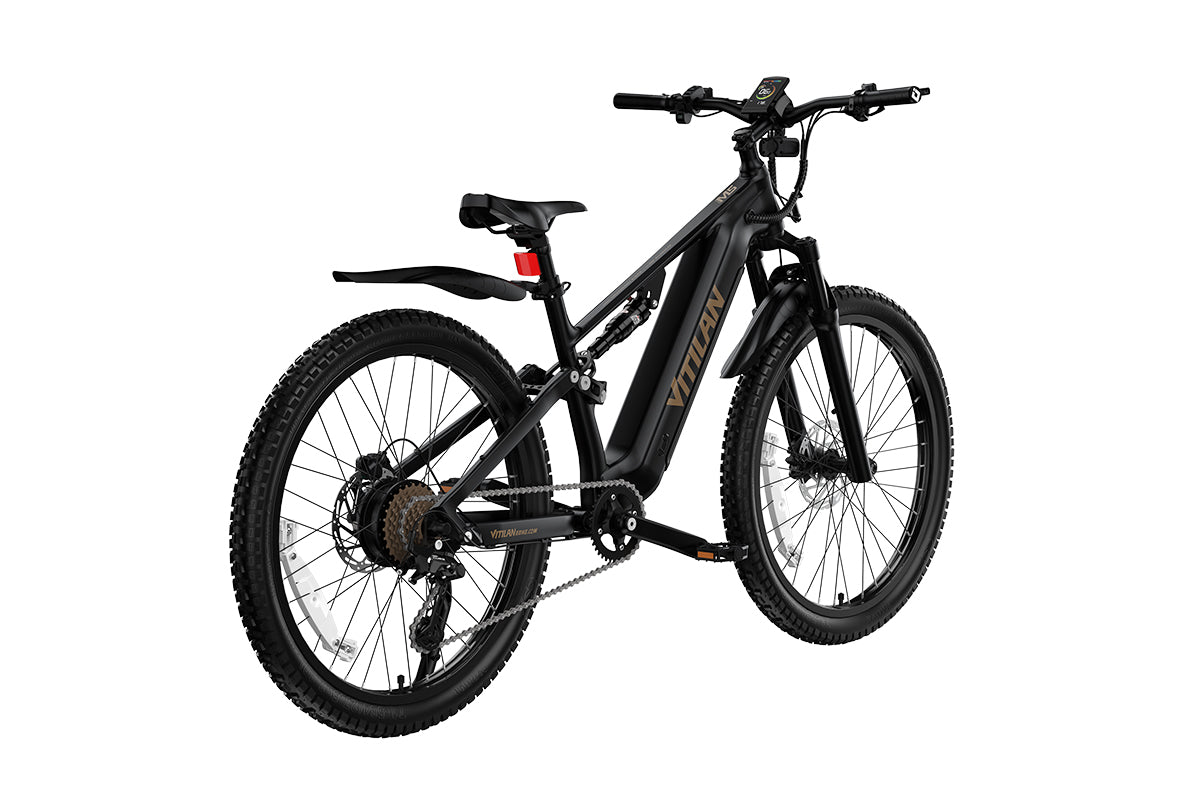

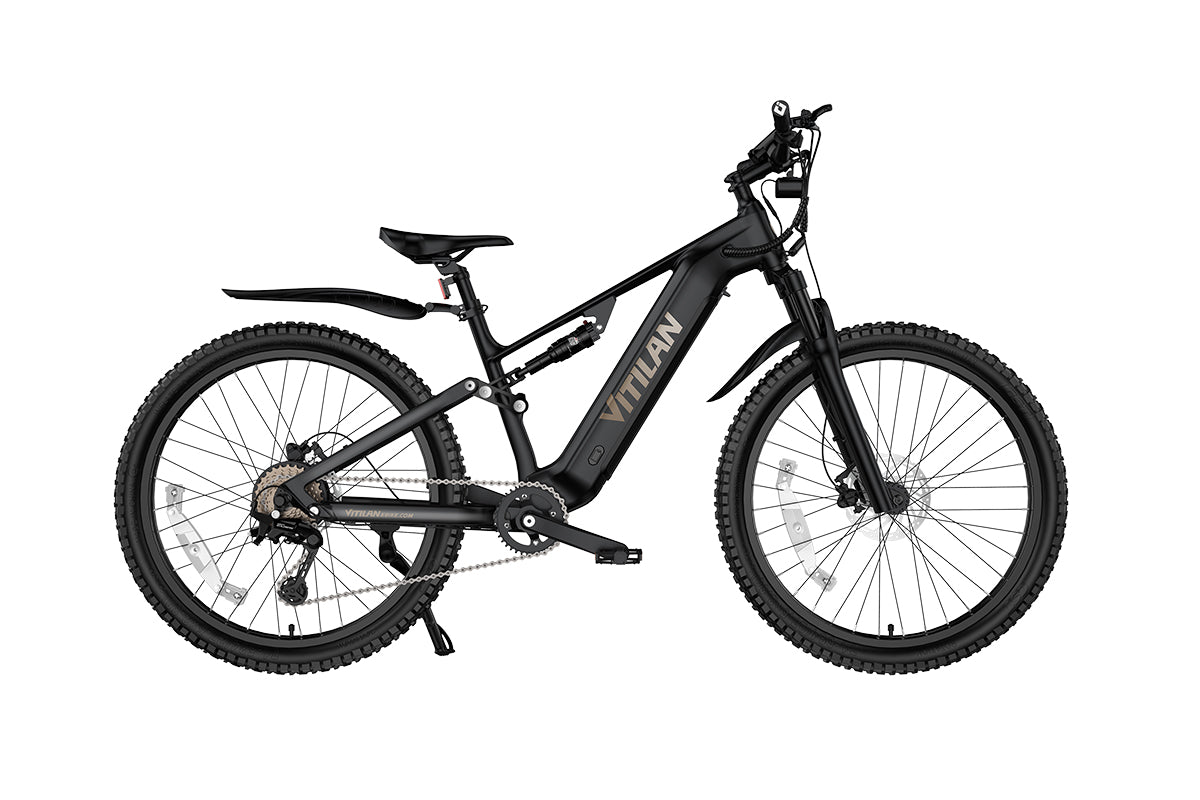

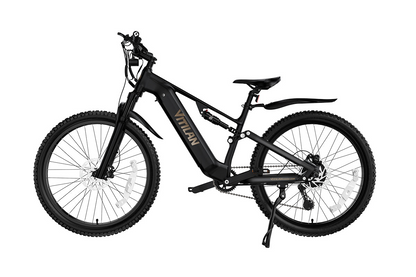

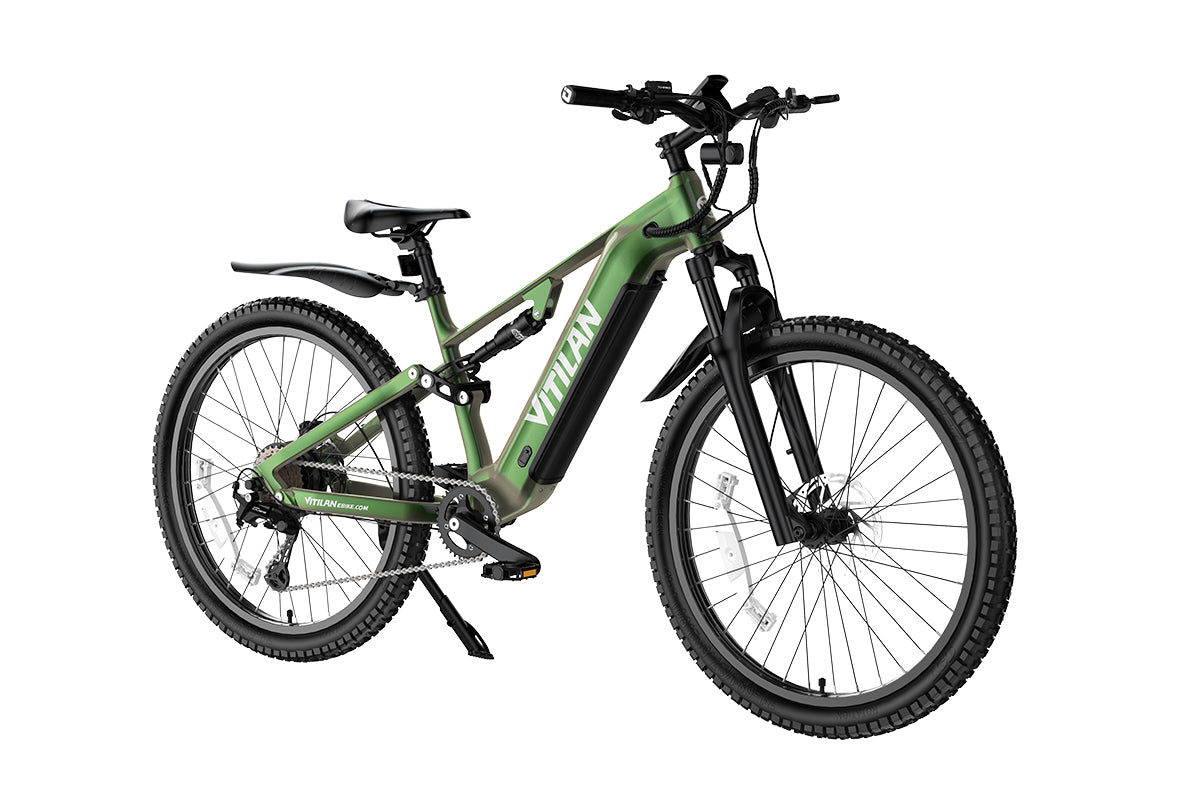

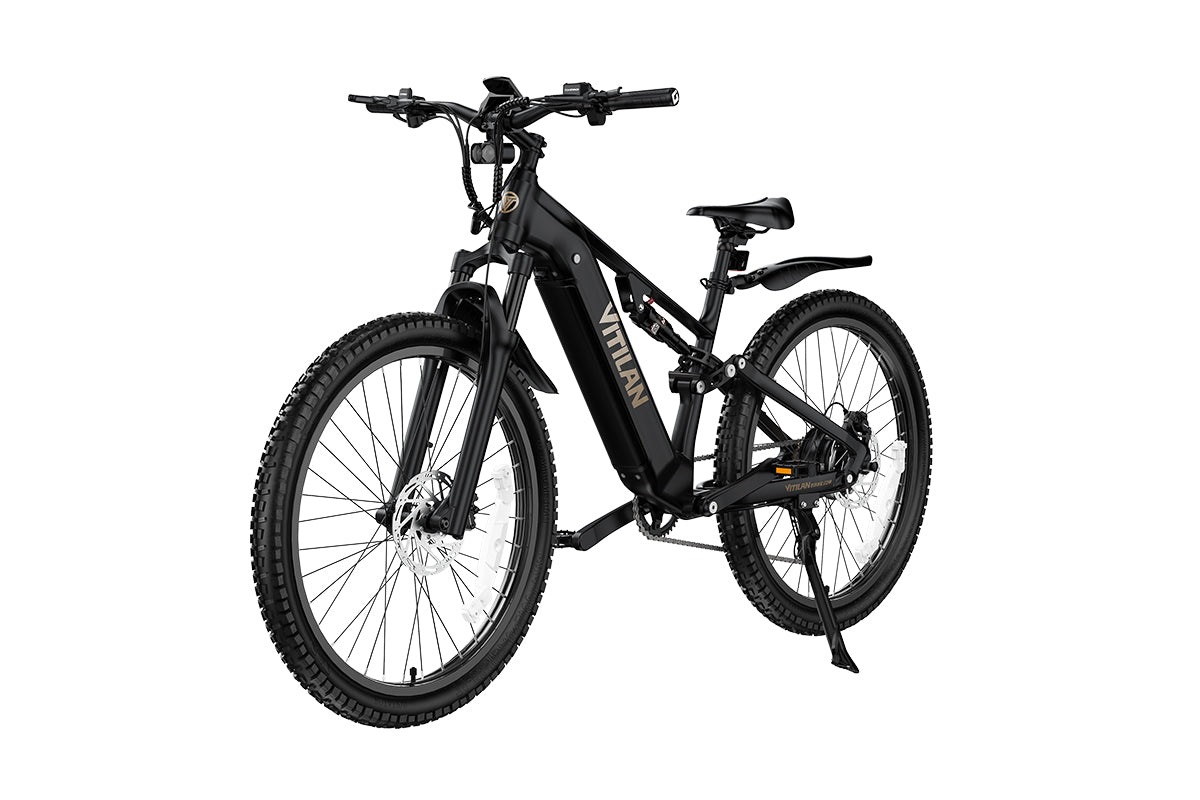

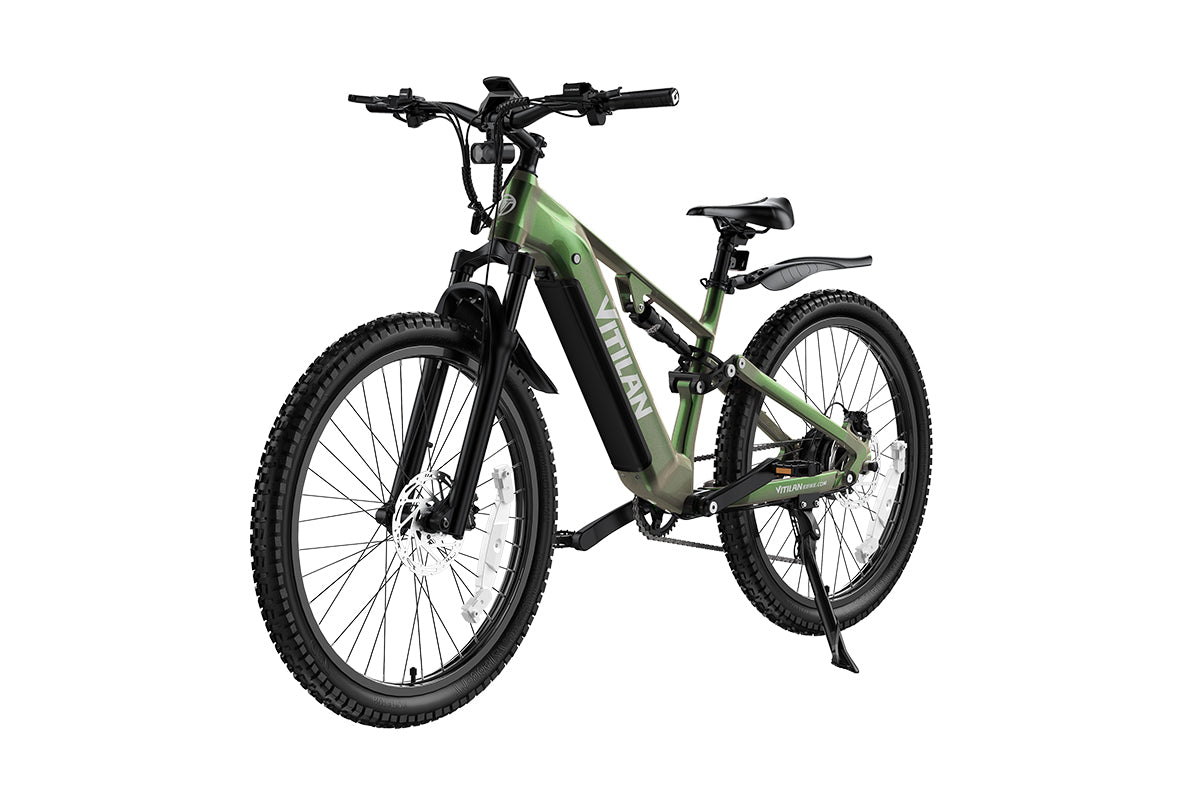

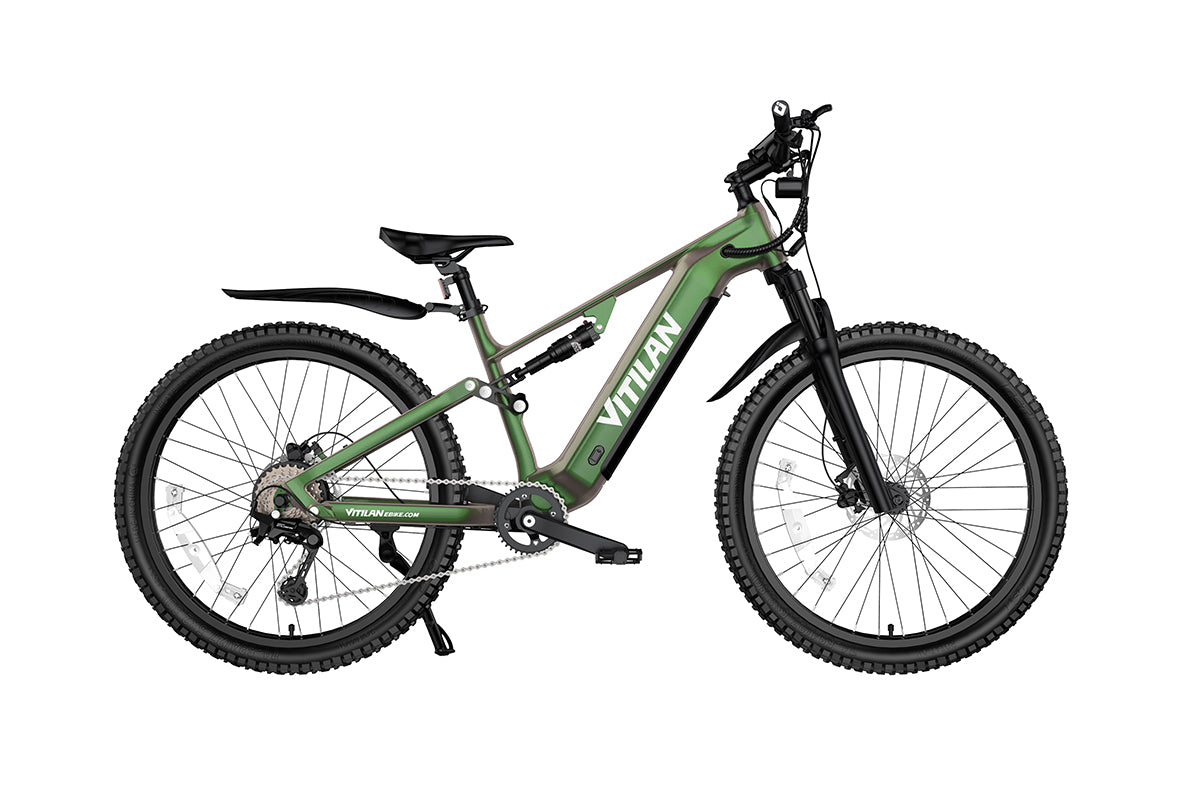

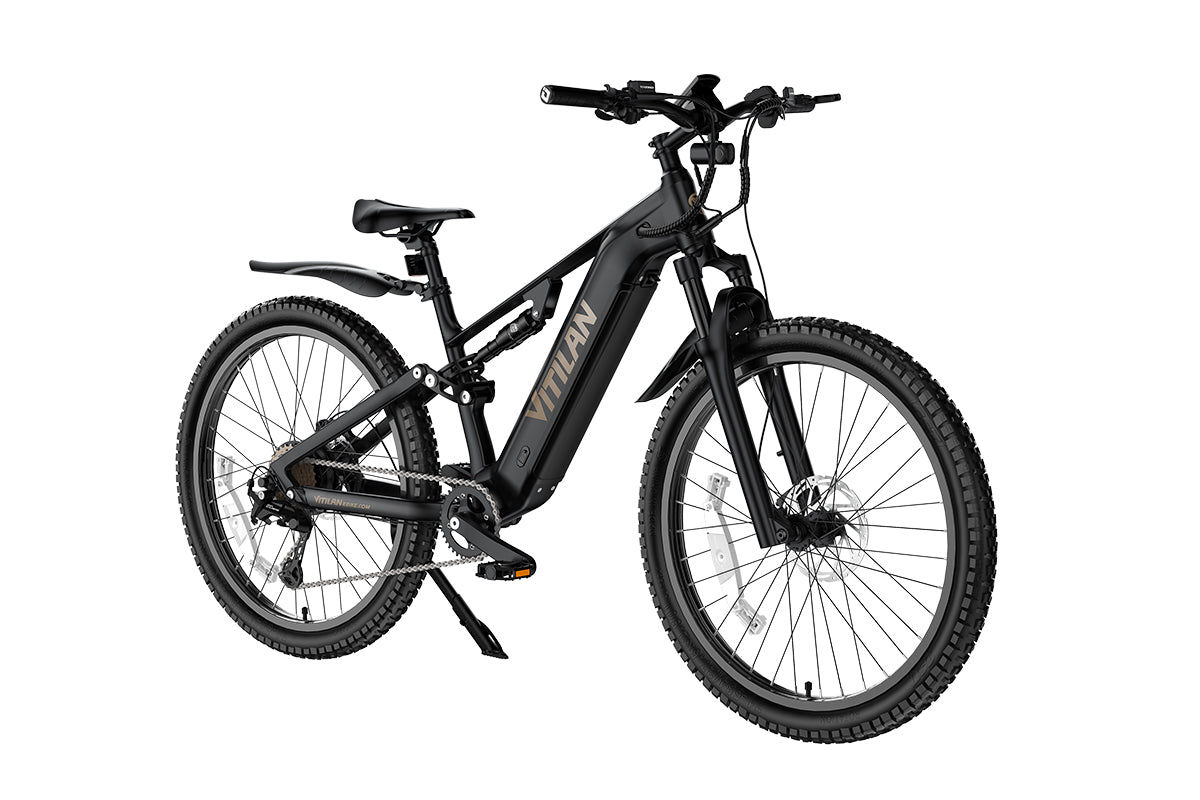

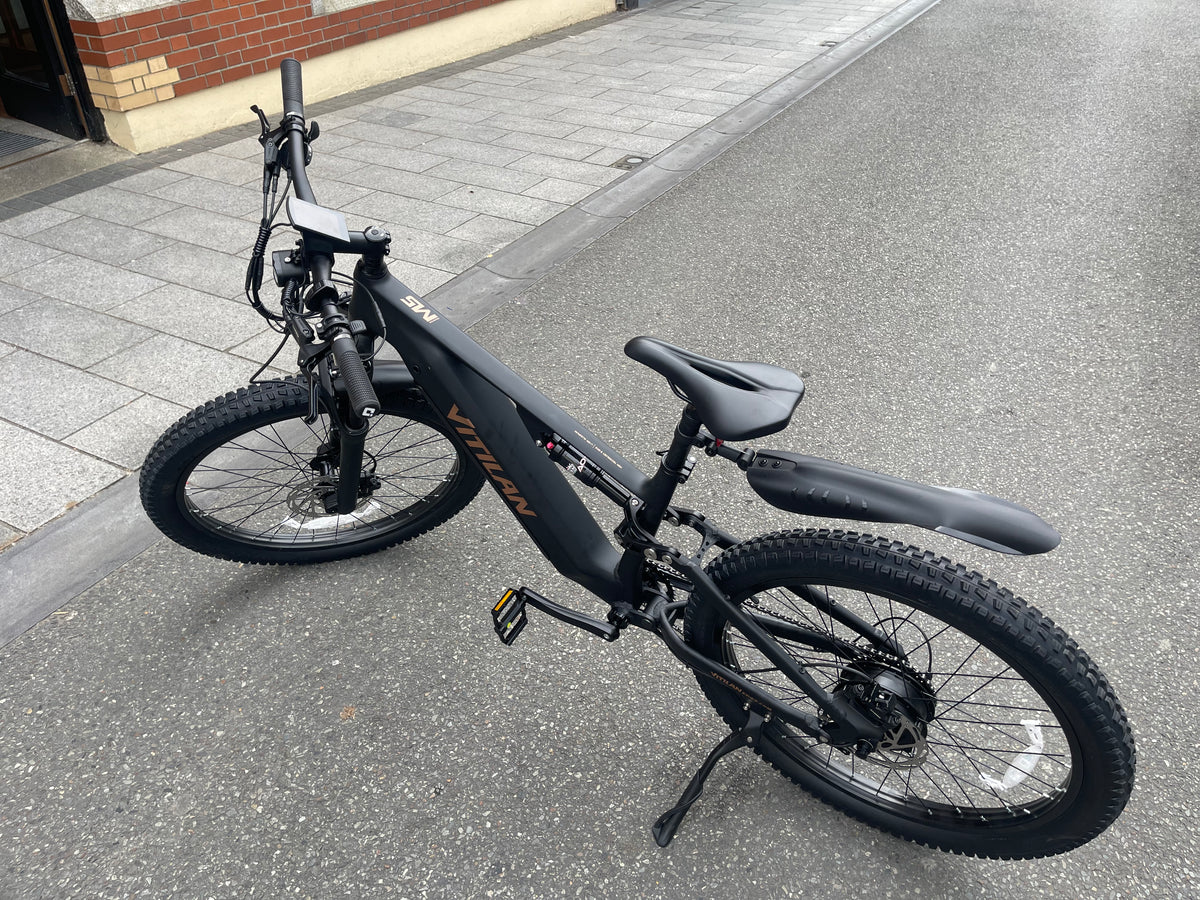

Vitilan M5 Full Suspension All-Terrain Mountain E-bike
The Vitilan M5 is a full-suspension electric endurance mountain bike that combines a powerful motor, long-travel suspension, a torque sensor and modern geometry at an affordable price. Its aluminium frame is equipped with a single-leg air suspension fork at the front and a DNM air shock at the rear, ensuring a comfortable ride and confident handling on steep descents, rocky terrain and root-covered trails, whether in bike parks or on natural singletrack.
- 48V 15Ah LG Battery
- 500W/960W Rated/Peak Motor
- 96-128km Range Per Charge (Estimate)
- 50-80km/h Range
- Torque Sensor
- 9 Speed Gear Shifting System
📋 Specifications
| ⚡ TECHNICAL SPECIFICATIONS | |
| Motor Hub | 48V 500W (Peak 960W), Max Torque 60Nm |
| Battery | 48V 15Ah, 720Wh LG Li-ion Battery |
| Charger | 54.6V 2.0A, Operates on 110V–240V AC, 50–60Hz |
| Display | With Fahrenheit temperature display, with Lishui controller, adjustable steering gear shift, adjustable cruise control |
| Throttle Assist | Thumb shifter |
| Headlight | High output integrated LED, IPX6 |
| Pedal Assist Range | 80 km |
| Throttle Range | 50 km |
| Sensor | Torque sensor |
| Charging Time | 0–80% in 4 hours, 0–100% in 6 hours |
| 🚲 FRAMESETS | |
| Frame | Aluminum alloy, fully integrated & lockable down tube battery |
| Brake | TEKTRO 180mm front and rear Hydraulic disc brakes |
| Rims | Aluminum alloy |
| IP Level | IPX6 |
| Fork | Single-sided shock-absorbing air-pressure front fork, DNM air pressure shock absorber |
| Tire | CST 27.5" × 2.8", puncture-resistant liner |
| Shift Lever | Shimano SL-U4000, 9-Speed |
| Chain | Anti-Rust Chain |
| Crankset | Aluminum alloy, 170mm |
| Seat Post | Aluminum alloy, 300mm × 30.4mm |
| Pedals | Full aluminum mountain bike pedals (with pegs) |
| 📦 WEIGHT & SPEED | |
| Package Dimensions | 61.8" × 14.1" × 33.8" |
| Max Load | 330 lbs |
| Package Weight | 96.5 lbs |
| M5 Weight | 84.5 lbs |
| Max Speed | 40 km/h |

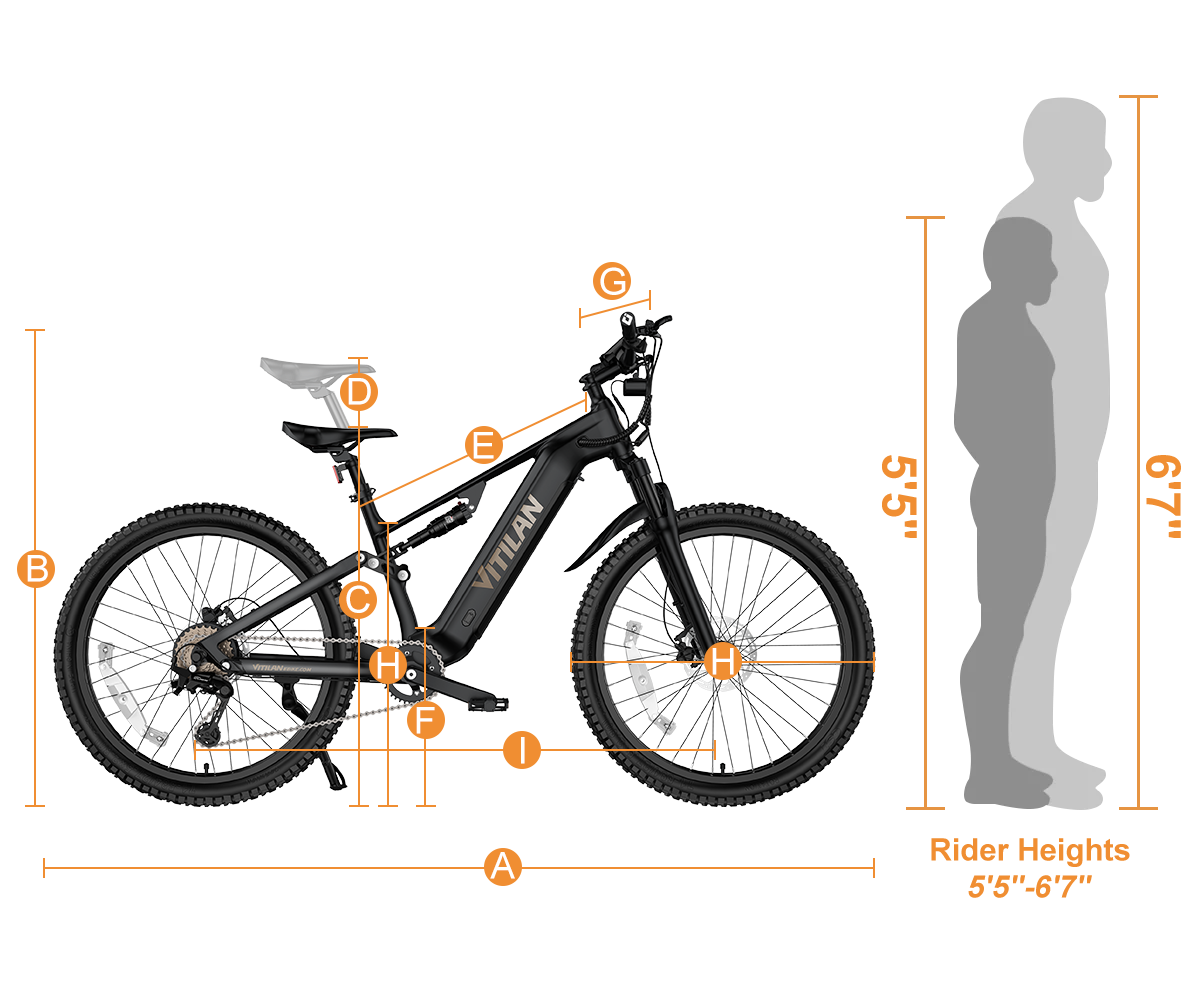

📐 Size & Geometry
| All measurements provided in inches unless otherwise noted. | |
| Recommended Rider Height | 5'5" – 6'7" |
| 📏 DIMENSIONS | |
| A – Total Length | 75.6" |
| B – Handlebar Height | 42.5" |
| C – Minimum Seat Height | 34.3" |
| D – Maximum Seat Height | 40.2" |
| E – Top Tube Length | 23.6" |
| F – Frame to Ground Height | 16.9" |
| G – Handlebar Length | 28.0" |
| H – Head Tube Length | 27" |
| I – Wheelbase | 52.4" |
🚲 Bike to Work Scheme
With the Bike to Work Scheme, you can save up to 52% on your Vitilan M5 through tax relief. We handle all the paperwork and issue your HR-ready invoice within 24 hours.
Apply Now →Click to learn more and start your application
48V 15Ah LG Lithium-ion Battery
Equipped with a 48V 15Ah LG lithium battery, the M5 delivers enhanced power and an extended riding range of up to 80 km. The removable battery design adds flexibility and convenience, allowing for easy charging and expanded riding options.
500W Upgraded Brushless Gear Hub Motor
With the help of 500W and 60Nm of torque sensing, the high-performance brushless gear hub motor, can elevate the throttle and pedal assist, satisfying high speeds(40km/h) and hill-climbing capabilities. It can also help you conquer the most rugged terrains easily.
Control Your Ride
Shimano's 9-speed drivetrain enables precise gear control. Quiet, swift shifting ensures smooth pedaling for efficient commutes or off-road rides.
Torque Sensor
Instantly adjusts motor output to match your pedaling force and cadence. Delivers smooth, natural, and efficient rides on trails or streets.
LCD Digital Panel
Keep your eyes on the road ahead knowing that all the information you need is right at your fingertips on an easy-to-read LCD screen on the handlebars. Display battery, speed, pedal assist level, range, and distance.
Conquer Rough Terrain
The Vitilan M5 is equipped with front and rear suspension systems designed to enhance riding comfort and handling. The rear four-link suspension system features adjustable rebound damping and a lockout mode to optimise pedalling efficiency, whilst the front air fork ensures front-end stability. These features provide excellent shock absorption and front-to-rear balance when climbing steep gradients or accelerating rapidly from a standstill, making it easy to tackle rough terrain.
Air Suspension Front Fork
The air suspension front fork effectively absorbs bumps and shocks on rugged or uneven routes, significantly reducing vibration and rider fatigue.
Integrated Headlight & Taillights
The bright 48V headlight and rear LED lights provide clear illumination for safer riding both day and night. The integrated rear turn signals enhance visibility and act as effective safety warnings when riding in traffic or crowded areas.
CST Puncture-Resistant Tyres
The 27.5×2.8-inch puncture-resistant tyres help you navigate both flat and rugged terrain with ease. The non-slip, wear-resistant CST tyres effortlessly tackle sandy paths, dirt tracks, grassy areas, mountain trails, footpaths and hilly terrain.
Soft Bike Seat
Vitilan bike seats are ergonomically designed to fit your body. They are shaped to match your riding position and will free you from strain and fatigue caused by long rides.
DNM Center Shock Absorber
The DNM 50mm mid shock absorbs rear-wheel impacts with precision. Delivers a smoother ride over rocky or uneven trails.
